GE HEALTHCARE
D
IRECTION 5305880-100, REVISION 3 LOGIQ™ 100 PRO SERVICE MANUAL
Chapter 8 - Replacement Procedures Page 8-23
5.) Remove the connections to the circuit breaker.
6.) Remove the rear panel from the chassis.
7.) For assembly follow the reverse order.
Table 8-11 Functional tests
Service Manual
Section Functional Test/ Diagnostic Test Debrief Script
4-2-1 Power ON/ Boot up
Service manual direction 5305880-
100, Section 8-8-1.Equipment passed
all required tests and is ready for use.
4-2-1 Power OFF/ Shut down
4-3 Functional Checks
4-6 Peripheral checks

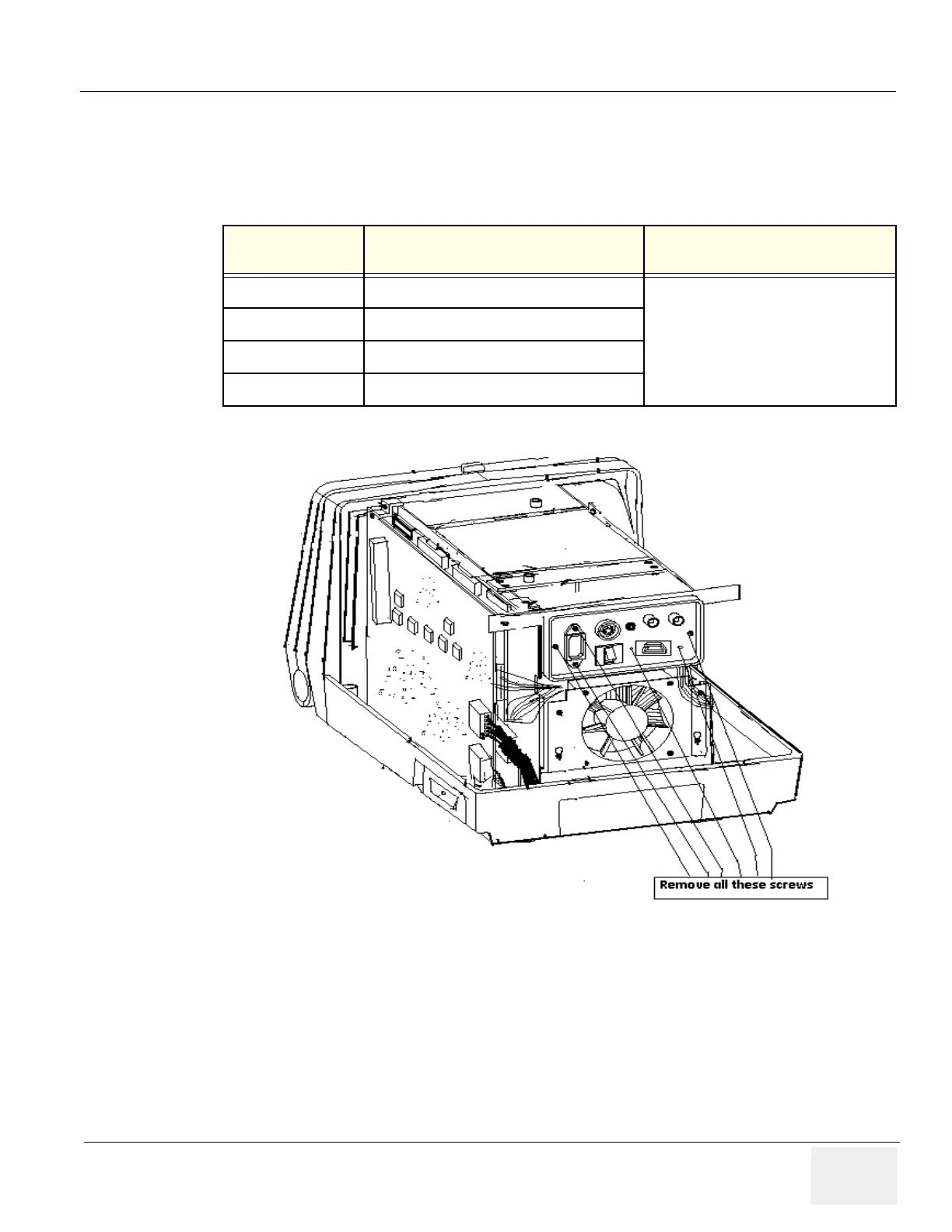

Figure 8-14 Disassembly/Assembly of Rear Panel
State: RELEASE - Document is released and under formal Change Control. Changes are subject to the ECR/ECO Process.
See the GEHC Myworkshop System to determine the status of this document.
Approved Document - 5305880-100TPH_r3.pdf Page 152 of 197
