IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
Chapter 3 LOGIQ E9 Setup 3 - 71
3-9-4-9 How to Setup and Use a DICOM Query/Retrieve (Q/R) Service (cont’d)
Q/R Support for Volume Navigation
V Nav (Volume Navigation) combines 3D images from other modalities (CT, MR, etc.) with Ultrasound
scanning. Use Q/R to load non-Ultrasound images into the .
The supports retrieval of these non-US image types:
• MR (Magnetic Resonance)
• CT (Computed Tomography)
• PT (Positron Emission Tomography)
• XA (X-Ray Angio)
• MG (Digital Mammography)
Use filter “00080061 Modalities in Study” to retrieve non-US images. To filter on more than one modality,
separate each by a “\“ (backslash). For example, “US\MR\CT\PT\XA\MG” returns entries for all
modalities supported by the .
Basic Use with V Nav
This guide is not intended to cover V Nav extensively. However, here are the initial steps:

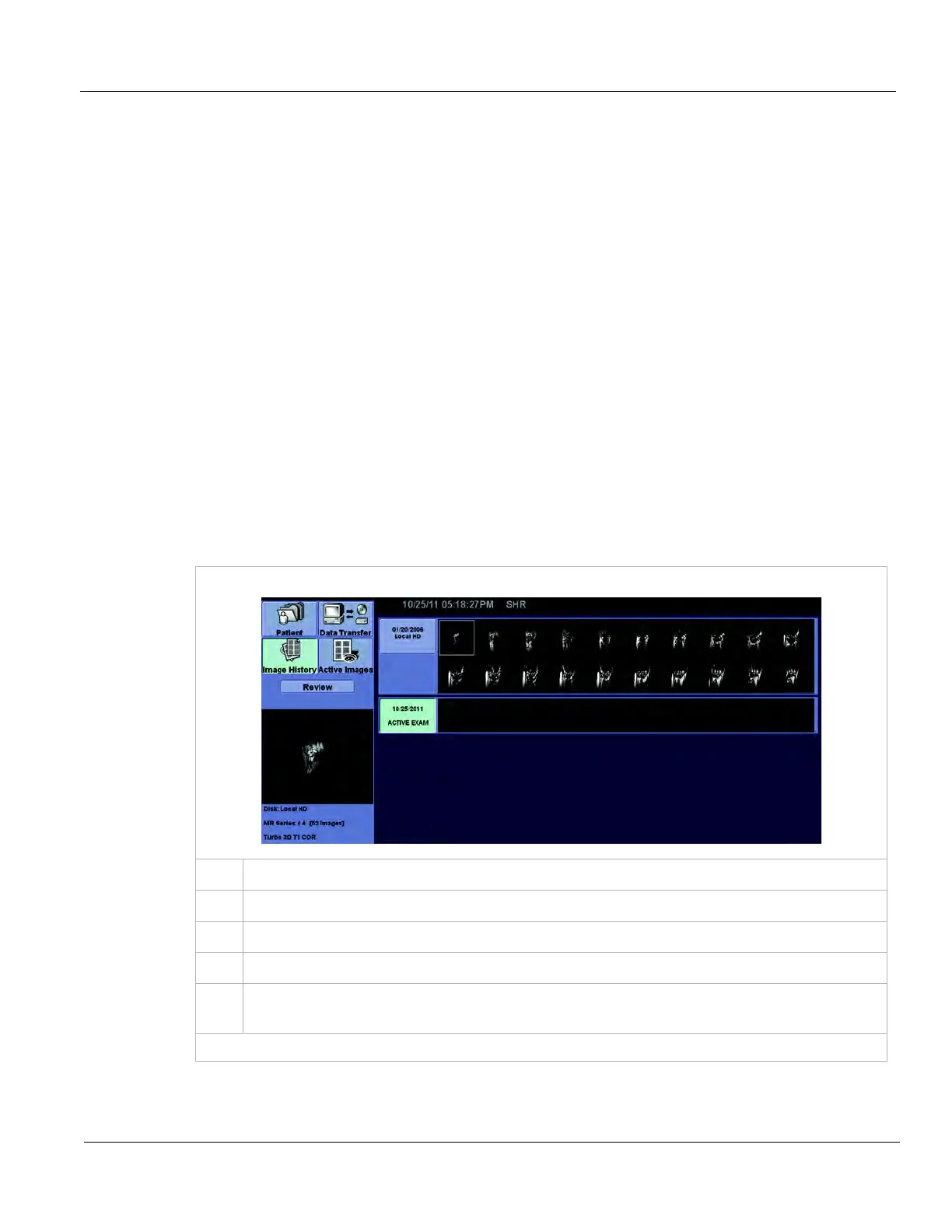

Table 3-27 Q/R Support for Volume Navigation
Image History Display
1.
Query and retrieve the non-US study from PACS.
2.
Create a new exam for this patient.
3.
Press the V Nav key located above the keyboard on the operator panel.
4.
On the Touch Panel, press Load; select From Database from the pop-up menu.
5.
An Image History page displays on the screen. Select any desired image in the non-US series
and press Review.
(continued on next page)

GE LOGIQ E9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Transducer Ports	4 active ports
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Vascular, Musculoskeletal, Small Parts, Urology, Pediatric, Cardiac, Obstetrics/Gynecology
Transducers	Linear, Convex, Phased Array, Volume
Doppler Modes	Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Elastography	Yes
Advanced Features	B-Flow, Volume Navigation
Portability	Cart-based system
Display	19-inch high-resolution LCD monitor
