GE
D
IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
4 - 10 Section 4-2 - General procedures
4-2-4 Top Console position adjustment
The system Top Console can be freely moved in all directions (if the power is on or if the mechanism is
not locked in position prior to powering down the system). The vertical displacement of the Top Console
is motor driven. The control buttons are located around the handles.
Power on the LOGIQ E9 before performing the following steps.
1. Lock button: unparking and sideways displacement of the console.
2.Up/Down button: raising/lowering the console.
To raise/lower the Top Console
1.) Press and hold down the Up/Down button (Figure 4-6, button 2) accordingly to raise or lower the
Top Console.
2.) Release the button when the Top Console is at the desired height.
4-2-4-1 To unlock the Top Console
1.) Press and hold down the Lock and brake release button(s) (Figure 4-6, button 1) and pull the Top
Console out of the locked position until the Top console is in the desired position.
2.) Release the button(s).
4-2-4-2 To lock the Top Console
1.) Press and hold down the Lock and brake release button(s) (Figure 4-6, button 1) while pushing
the Top Console in the locked position.
2.) Release the button(s).
4-2-4-3 To move the floating Top Console
1.) The unlocked Top Console can be easily moved by pressing and holding down the Lock and brake
release button(s) (Figure 4-6, button 1) and move the Top Console in any direction.
2.) Release the button when the Top Console is at the desired height.
4-2-4-4 To move the Top Console if Power is OFF
To manually release the console’s XY-mechanism (frogleg) if the power is OFF, see: Section 6-7
"Operator Panel movement" on page 6-21.
CAUTION
To avoid injury or damage, make sure nothing is within the range of motion before moving the
Top Console. This includes both objects and people.

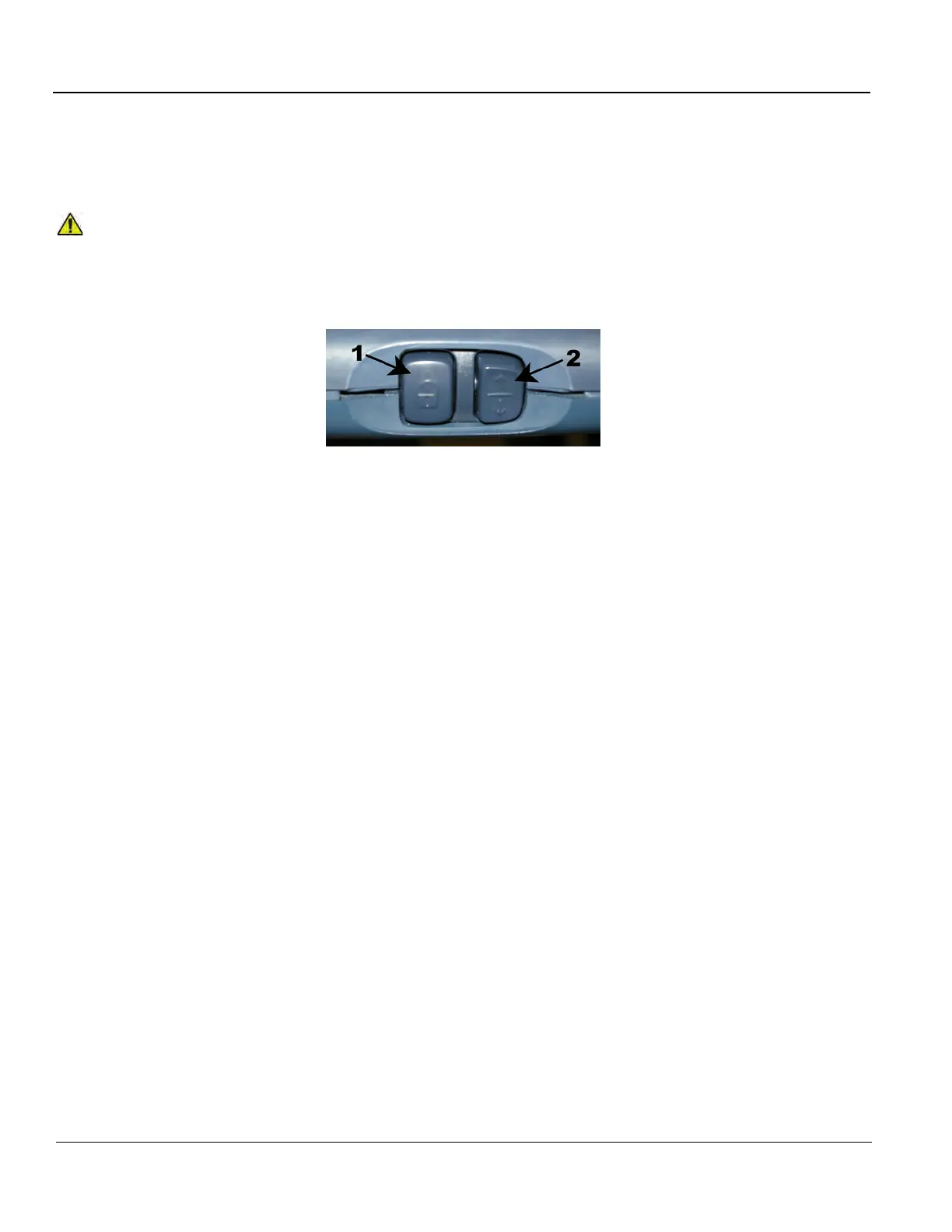

Figure 4-6 Top Console adjustment controls: Lock (1), Up/Down (2)
