4-2-5-1 To unlock the LCD Monitor
• Turn the knob counter clockwise to unlock the LCD Monitor.
The LCD Monitor can be moved freely in all directions.
4-2-5-2 To lock the LCD Monitor
• Turn the knob clockwise to raise the lock and move the LCD Monitor into the parked position.
4-2-5-3 LCD Monitor position for Transport
Lock Arm and tilt LCD Monitor down.

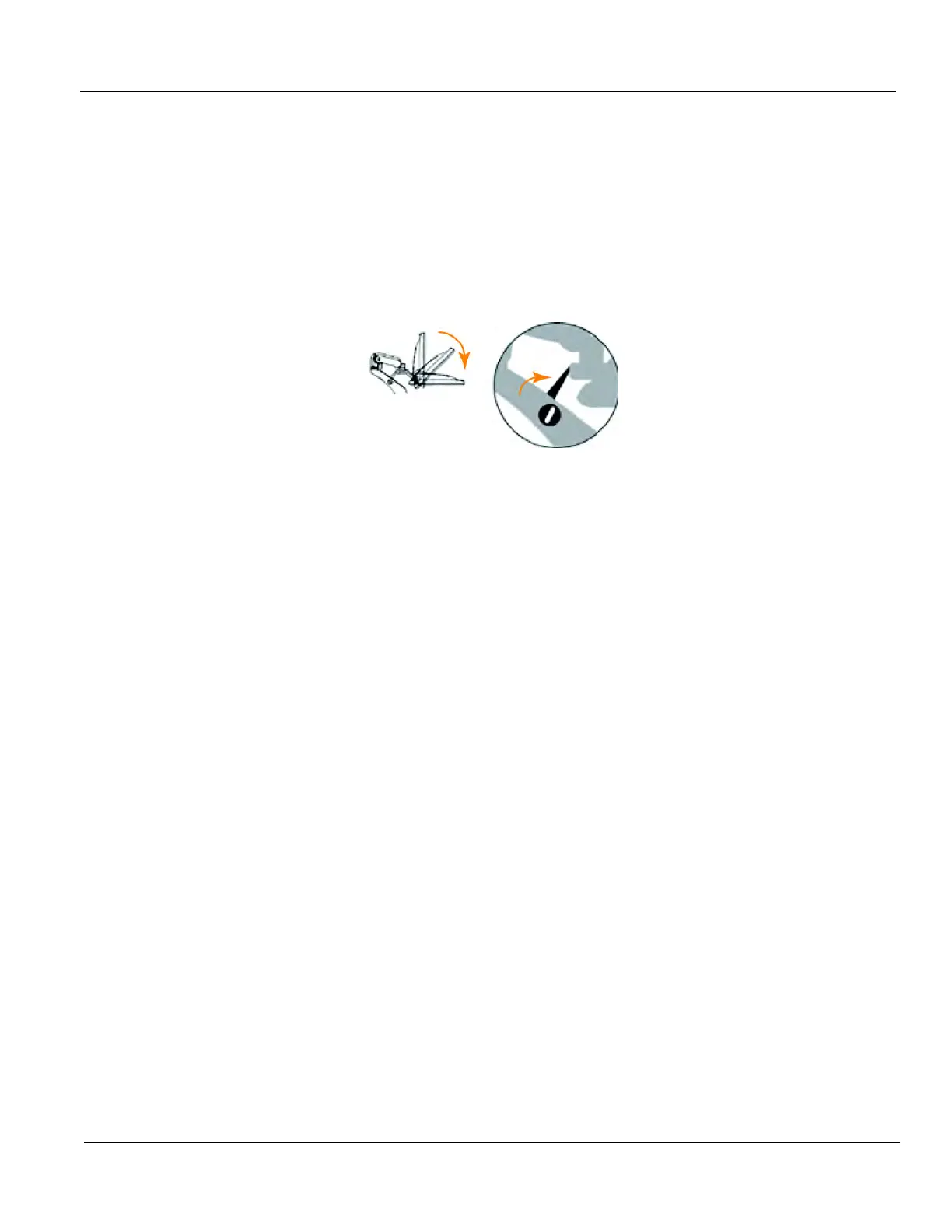

Figure 4-10 LCD Monitor transport Position (R4.x shown)
