4 - 12 Section 4-2 - General procedures
4-2-5 LCD Monitor Positions and Lock (cont’d)
When the LCD Arm Lock is unlocked. verify the LCD Monitor can move up/down (vertically) and left/
right (horizontally).
NOTE: The LCD Monitor can move approximately 100 mm (3.94 inches) vertically and
250 mm (9.84 inches) horizontally.

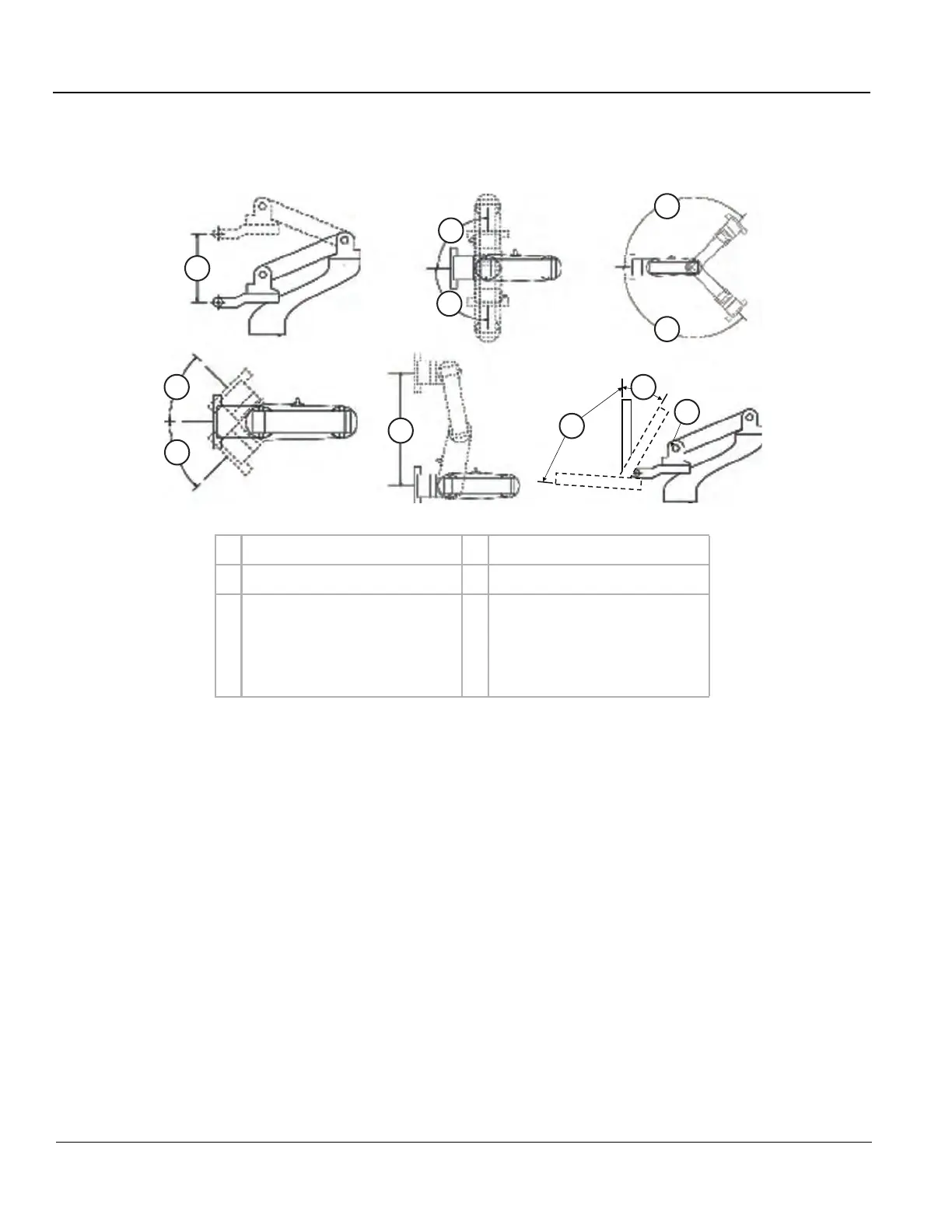

Figure 4-9 LCD Monitor Positions - R5.x
1. Vertical Travel = 150mm 4. Pan Arm Rotation = 45º (90º total)
2. Rotation at Mount = 90º (180º total) 5. LCD Translation = 350mm
3. Lift Arm Rotation = 135º (270º
total)
6. Tilt
a. No Collistion
b. Approximately 20º
(based on Pan Arm Off-set)
c. 85º-90º
1
2
4b
3
2
3
4c
5
6
6
4a
