GE
D
IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
Chapter 4 Functional Checks 4 - 15
4-2-10 Moving and Transporting the LOGIQ E9
4-2-10-1 The Casters (Wheels) control
The wheels of the LOGIQ E9 are controlled by the pedals located between the front wheels of the
LOGIQ E9.
Examine the wheels frequently for defects to avoid breaking or jamming.
1.) Press the right pedal to engage the Parking brake.
2.) Press the center pedal to release the Parking brake.
3.) Press the left pedal to engage the Swivel lock.
4.) Press the center pedal to release the Swivel lock.
4-2-10-2 To prepare the LOGIQ E9 to be moved
1.) If not locked, move the keyboard console and LCD monitor to the park position (see: 4-2-4 "Top
Console position adjustment" on page 4-10 and 4-2-5 "LCD Monitor Positions and Lock" on page
4-11).
2.) Turn the system off, including the circuit breaker (see: 4-2-3 "Power shut down" on page 4-7), and
remove the plug from the wall.
3.) Disconnect all cables linking the LOGIQ E9 to any off-board peripheral devices and network.
4.) Secure the LOGIQ E9’s power cable.
5.) Place all probes in the probe holder. Ensure that the probe cables do not protrude from the
LOGIQ E9 or interfere with the wheels.
6.) Ensure that no loose items are left on the LOGIQ E9.
7.) Fold down the monitor.
8.) Unlock the brake.

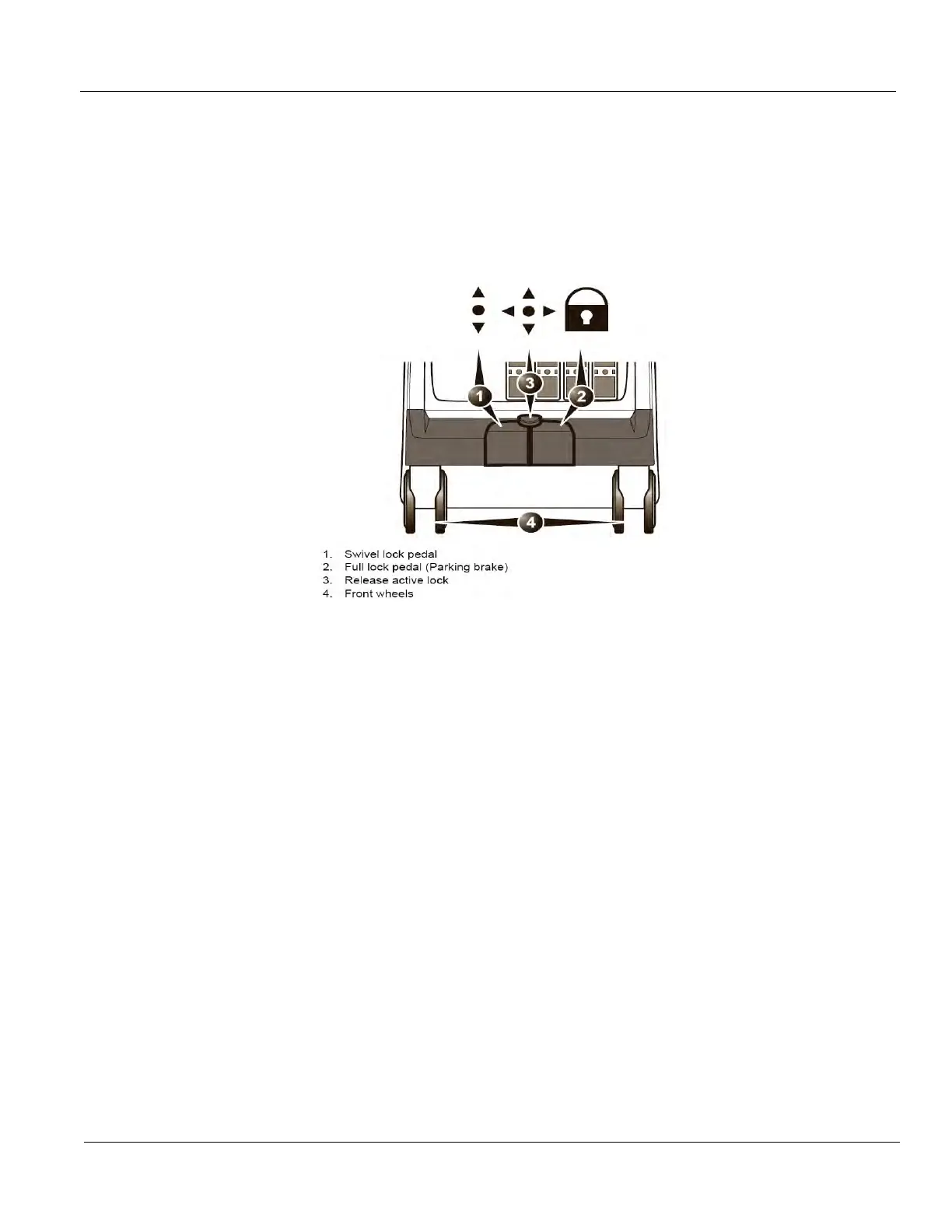

Figure 4-11 Pedals
