GE
D
IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
4 - 46 Section 4-3 - Functional checks
4-3-18-3 Operator I/O Movement - LCD
Check that the monitor functions as described below
See: 4-2-5 "LCD Monitor Positions and Lock" on page 4-11.
4-3-18-4 Operator Console Movement (XY)
See: 4-2-4 "Top Console position adjustment" on page 4-10.
4-3-18-5 Footswitch
1.) Plug in the footswitch.
2.) Select Utility -> Application.
You should see the footswitch programming options for Left Middle Right switches.
3.) Program them all for Freeze.
4.) Then Scan and use each pedal to freeze and unfreeze to be sure each works.
4-3-18-6 WLAN
R2.x.x or R3.x.x, see: 8-6-8-3 "WLAN - Set up and Check" on page 8-164.
R4.x.x or later, see: 8-11-23-3 "WLAN Set-up" on page 8-530.
Table 4-19 19” LCD Display Platform Maneuverability Checks
Step Task Note(s)
1.
Tilt Forward/Back
Use both hands, one at the top of the LCD and one at the bottom, to
rotate the screen forward and back.
2.
Move Left/Right
Use both hands, one at the lower left handle hold of the LCD and one
at the lower right handle hold, to adjust the screen left and right.

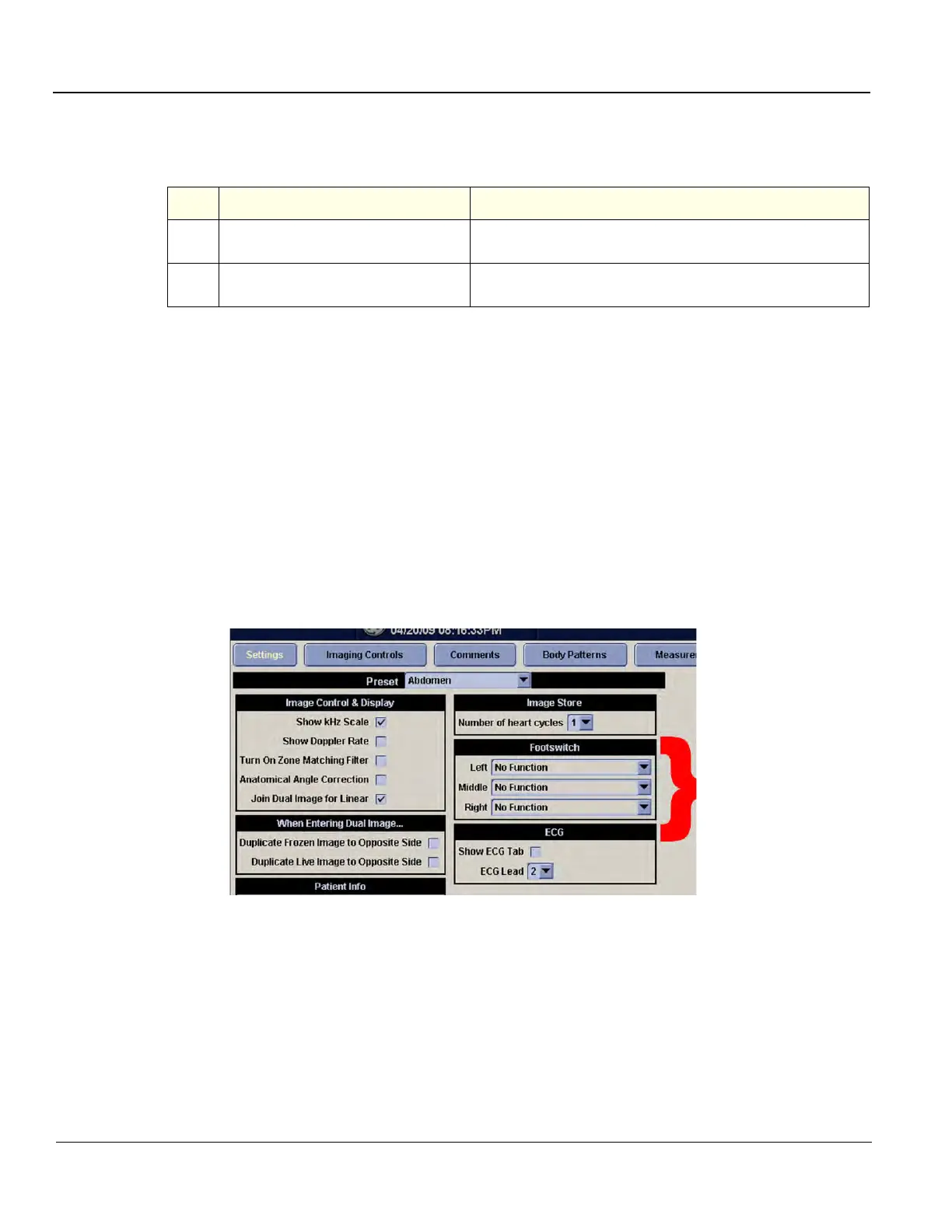

Figure 4-26 Footswitch Function Checks
