GE LOGIQ E9 Service Manual

GE
D
IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
5 - 18 Section 5-3 - Top Console with LCD monitor and Operator Panel
5-3-4 Operator Panel
5-3-4-1 Operator Panel general description
The Operator Panel includes an On/Off switch, different controls for manipulating the picture quality,
and controls for use in Measure & Analyze (M&A), an alphanumeric keyboard and frogleg controls.
1.) Probe and Cord Holder
2.) USB Ports (2)
3.) Measurement Selection Menu and Joystick controls
4.) Keyboard
5.) Feature Keys: Elastography, Volume, Navigation, Loop View, Contrast
6.) Modes (B, M, CF, PDI, PW, CW, TVi) /Gain/XYZ Controls for 3D/4D Mode
7.) TGC
8.) Trackball, Trackball Keys, Pointer, Measure, Comment, Body Pattern, Clear, Zoom, 3D/4D, P1
See: Figure 5-9 "Customer Removable Trackball" on page 5-19.
9.) L/R, Start/Stop, Freeze
10.)Steer/Width/Depth/Reverse
11.)Auto
12.)P2, P3, P4
13.)Frogleg Controls (XYZ Mechanism)

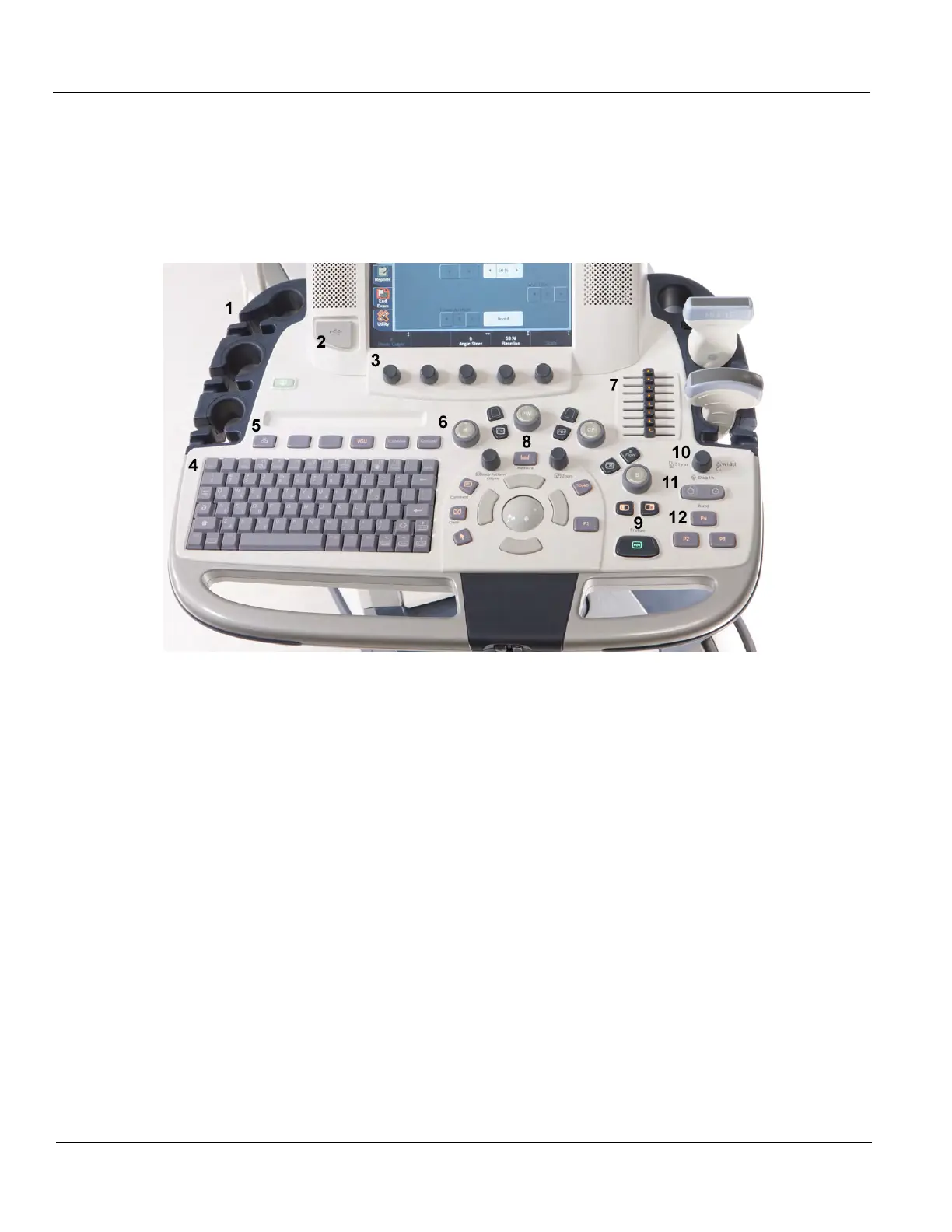

Figure 5-8 Operator Panel
13

GE LOGIQ E9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Transducer Ports	4 active ports
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Vascular, Musculoskeletal, Small Parts, Urology, Pediatric, Cardiac, Obstetrics/Gynecology
Transducers	Linear, Convex, Phased Array, Volume
Doppler Modes	Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Elastography	Yes
Advanced Features	B-Flow, Volume Navigation
Portability	Cart-based system
Display	19-inch high-resolution LCD monitor
