GE LOGIQ E9 Service Manual

GE
D
IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
Chapter 5 Components and Functions (Theory) 5 - 19
5-3-4-1 Operator Panel general description (cont’d)
Customer Removable Trackball introduced for forward production in R4.
A new Bezel was introduced with different dimensions around the Trackball and Trackball Keys to fit the
Removable Trackball. Trackball Keys are slightly narrower.

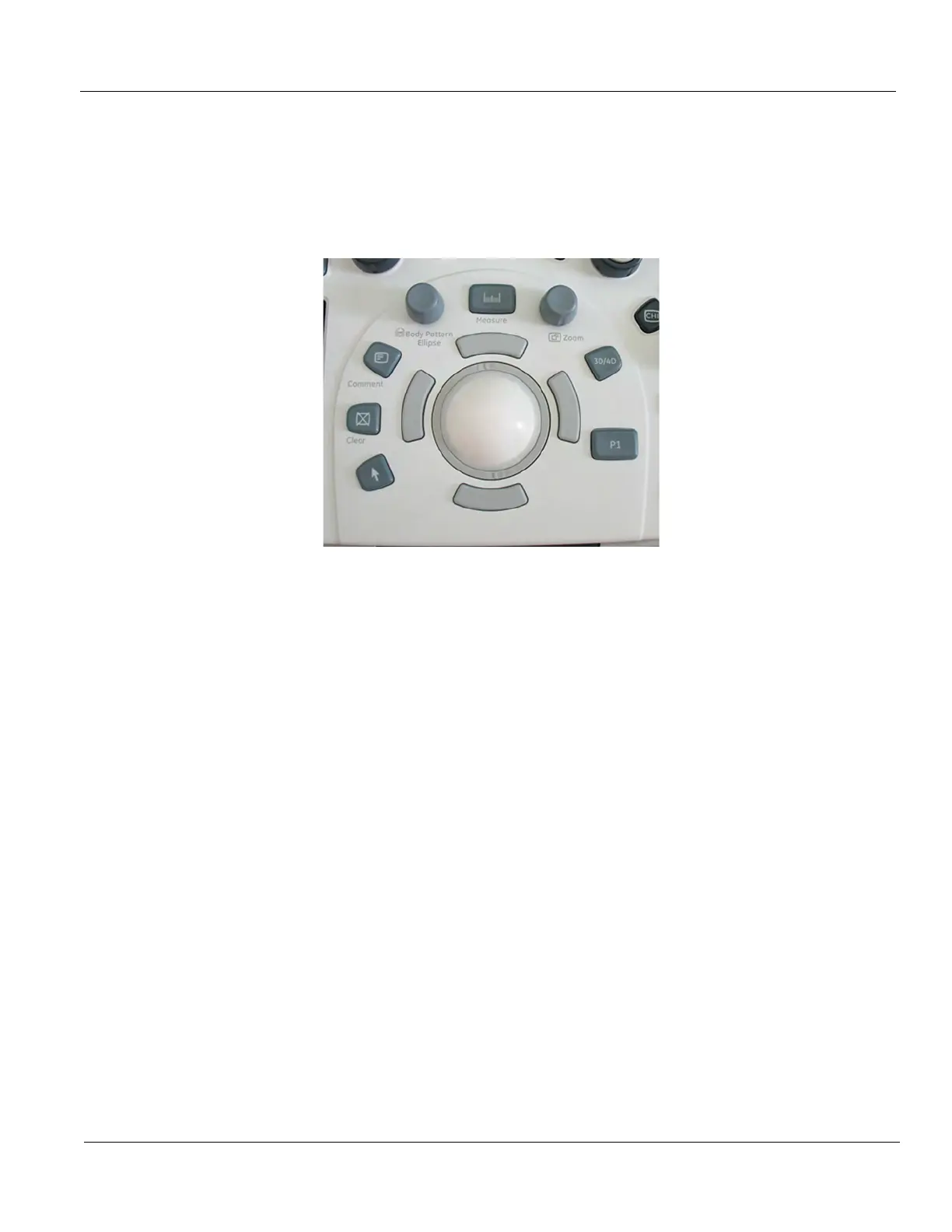

Figure 5-9 Customer Removable Trackball

GE LOGIQ E9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Transducer Ports	4 active ports
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Vascular, Musculoskeletal, Small Parts, Urology, Pediatric, Cardiac, Obstetrics/Gynecology
Transducers	Linear, Convex, Phased Array, Volume
Doppler Modes	Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Elastography	Yes
Advanced Features	B-Flow, Volume Navigation
Portability	Cart-based system
Display	19-inch high-resolution LCD monitor
