Power from the wall outlet (100 to 240 VAC, 50/60 Hz) is connected to the Main Power Supply. The
Main Power Supply delivers the needed voltages to the rest of the LOGIQ E9:
• Internal Printer (110 VAC)
• Front End Rack (DC power with several voltages)
• Front End Rack (TSV1 and TSV2 for the transmitters)
• Front End Rack (PMXVOUT for the probe channel multiplexers)
• Back End Processor
An inrush current limiter reduce the peak input current when the LOGIQ E9 is switched on. An EMI filter
helps to reduce EMI to acceptable levels.
The mains cord has plugs in both ends. A female plug connects to the scanner and a male plug to the
wall outlet.
Fuses are located inside the power supply (only to be replaced by the manufacturer).

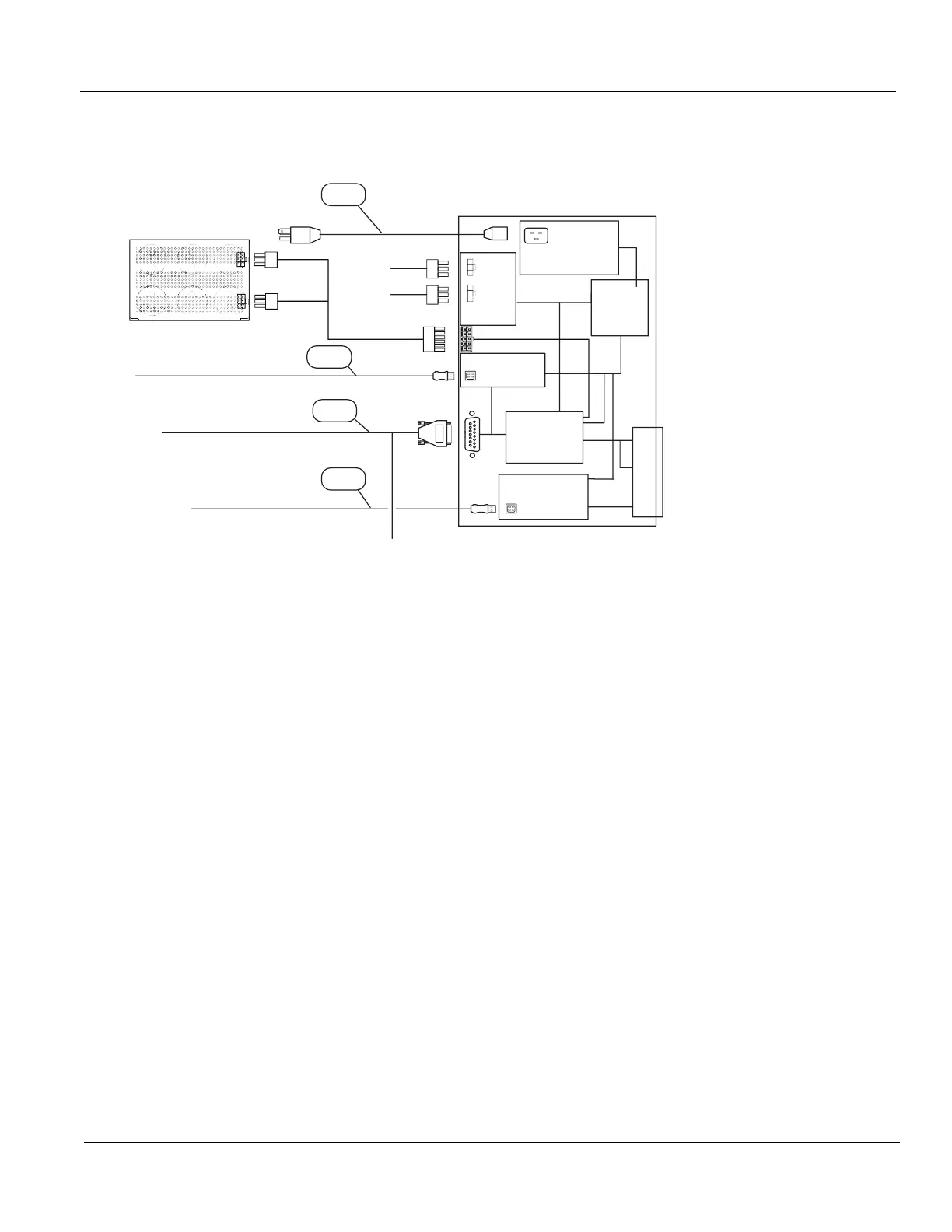

Figure 5-14 Power Supply Block Diagram - R5 and later
MAIN POWER SUPPLY
TO
PRINTERS
H
A
I
4D MOTOR
CNTRL
H-BRIDGE
DC-DC
CONVERTERS
POWER
FACTOR
CORRECTION
ISOLATION
AND
DC HEAD
CONTROL
120VAC
INVERTER
USB MAIN POWER
SUPPLY TO BEP (J4)
TO XYZ
CONTROLLER (48V)
TO BEP (J1)
USB CABLE
4D CONTROLLER (J28)
BB
DC VOLTAGES ->
FEP’S MOTHERBOARD ->
FEP’S BOARDS
(X2 = P4 on MPS)
TX POWER to
FEP MOTHERBOARD to
RELAY CARD
(X1 = P3 on MPS)
SWAVE
Option
(Capacitor
Pack)
