GE
D
IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
5 - 26 Section 5-7 - Power distribution
5-7-2-1 General description (cont’d)
5-7-2-2 Temperature Control
The Main Power Supply is equipped with an internal fan with variable speed for temperature control.
Both the temperature of the air entering the power supply and leaving the power supply are measured.
Fan speed is controlled by the power supply.
5-7-2-3 Input
Mains Power, 100 VAC or 240 VAC, 50/60 Hz

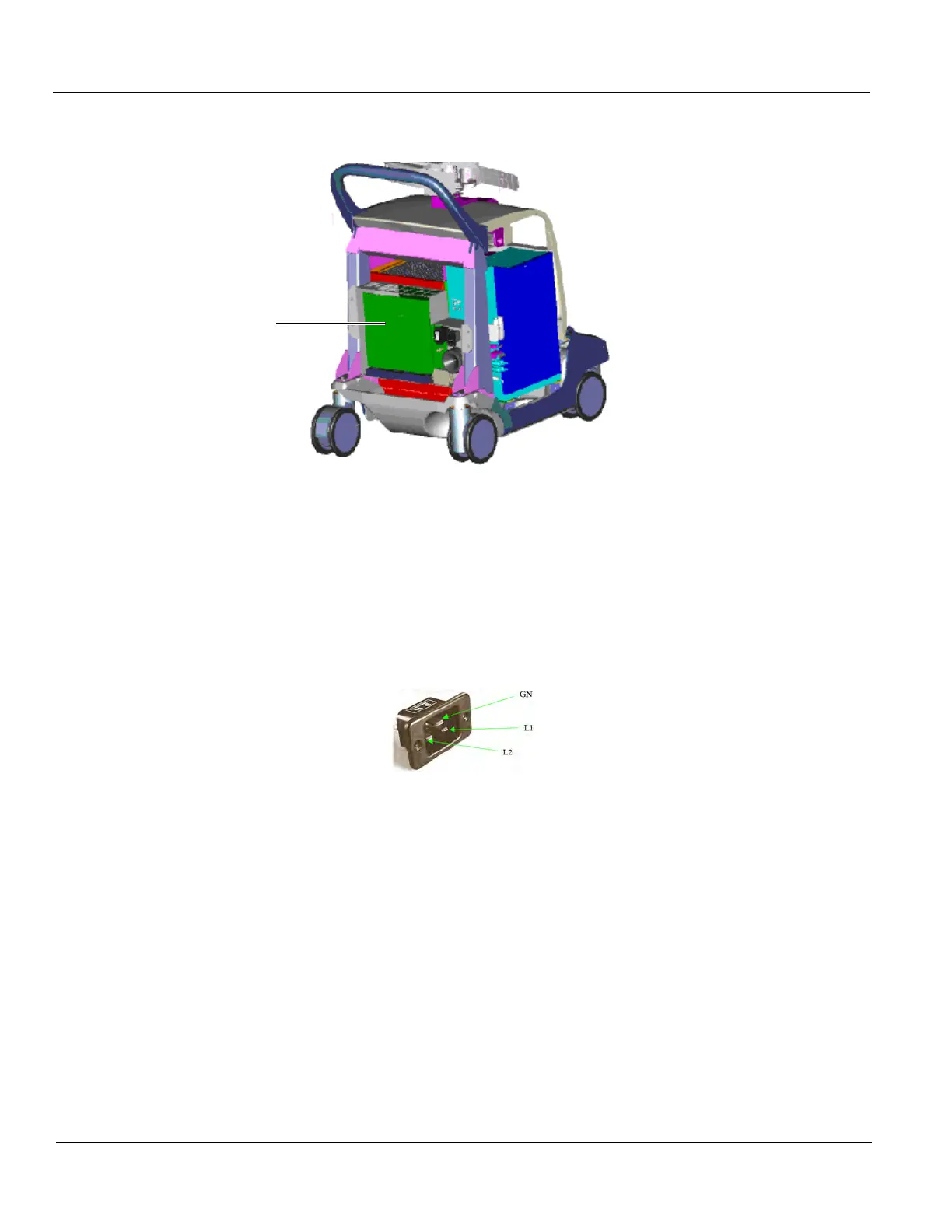

Figure 5-15 Main Power Supply
Figure 5-16 L1 - Mains IN connector
