6 - 2 Section 6-2 - LCD Monitor adjustments
6-2-2 Access to Adjustments
The monitor adjustment is done via three controls (buttons) on front of the monitor.
The LCD settings have been optimized at the factory, so normally, there should be no need for any
further adjustments.
Under special light conditions, you may want to adjust the LCD screen’s backlight intensity.
Factory default Intensity is: 100%.
For complete information, refer to the of the LOGIQ E9 Basic User Manual, Chapter 16 for R3.x.x.
To obtain different test patterns for B/W or color adjustments, press Utility in the Touch Panel and select
Test Patterns.

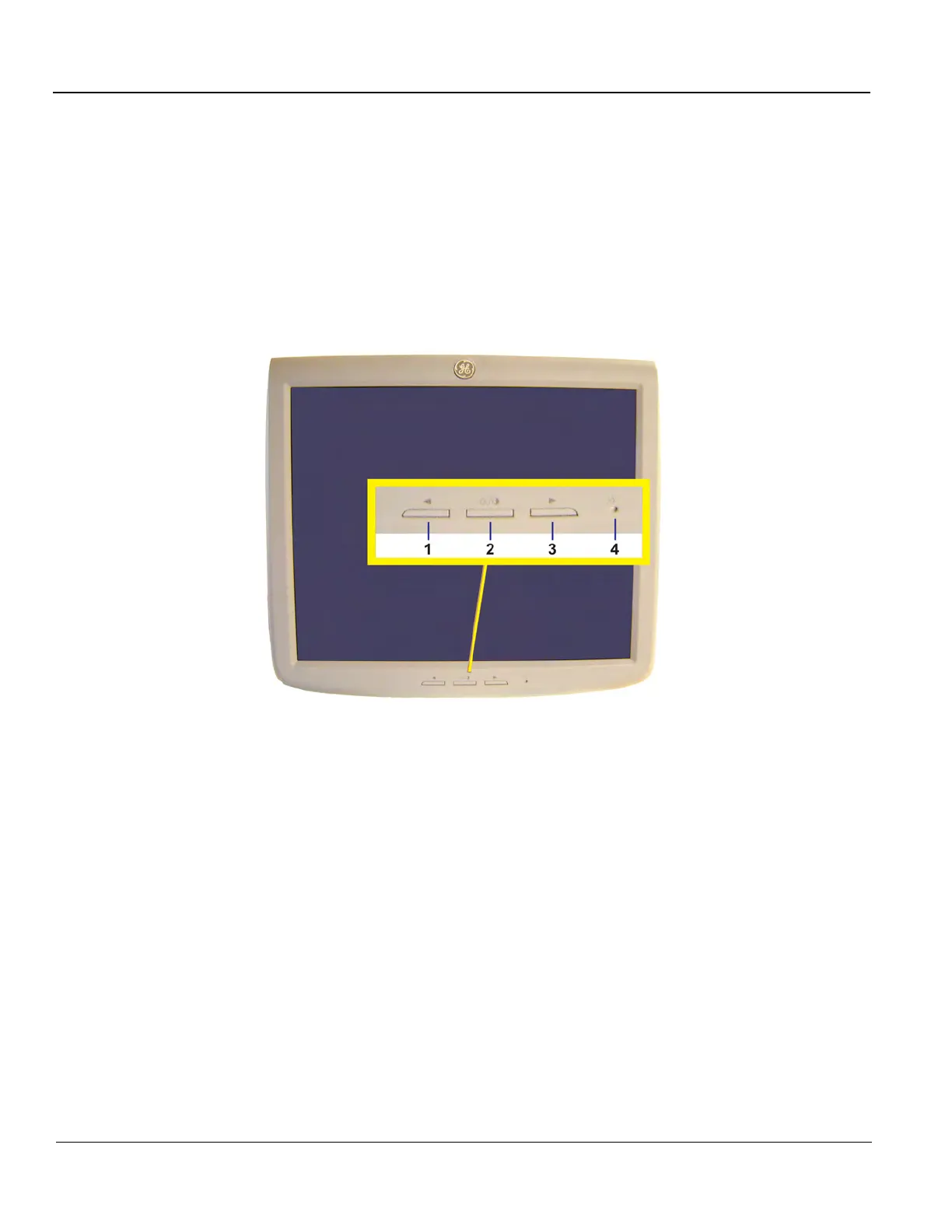

Figure 6-1 LCD adjustment buttons - see Table 6-2 "Advanced LCD Adjustments" on page 6-4 for
feature descriptions

GE LOGIQ E9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Transducer Ports	4 active ports
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Vascular, Musculoskeletal, Small Parts, Urology, Pediatric, Cardiac, Obstetrics/Gynecology
Transducers	Linear, Convex, Phased Array, Volume
Doppler Modes	Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Elastography	Yes
Advanced Features	B-Flow, Volume Navigation
Portability	Cart-based system
Display	19-inch high-resolution LCD monitor
