GE
D
IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
6 - 10 Section 6-4 - Operator Panel movement
6-4-3 Adjusting the Z Mechanism
6-4-4 XY Manual Release for Lock and Brake Mechanism and Adjustment
6-4-4-1 XY Lock and Brake Mechanism Parts

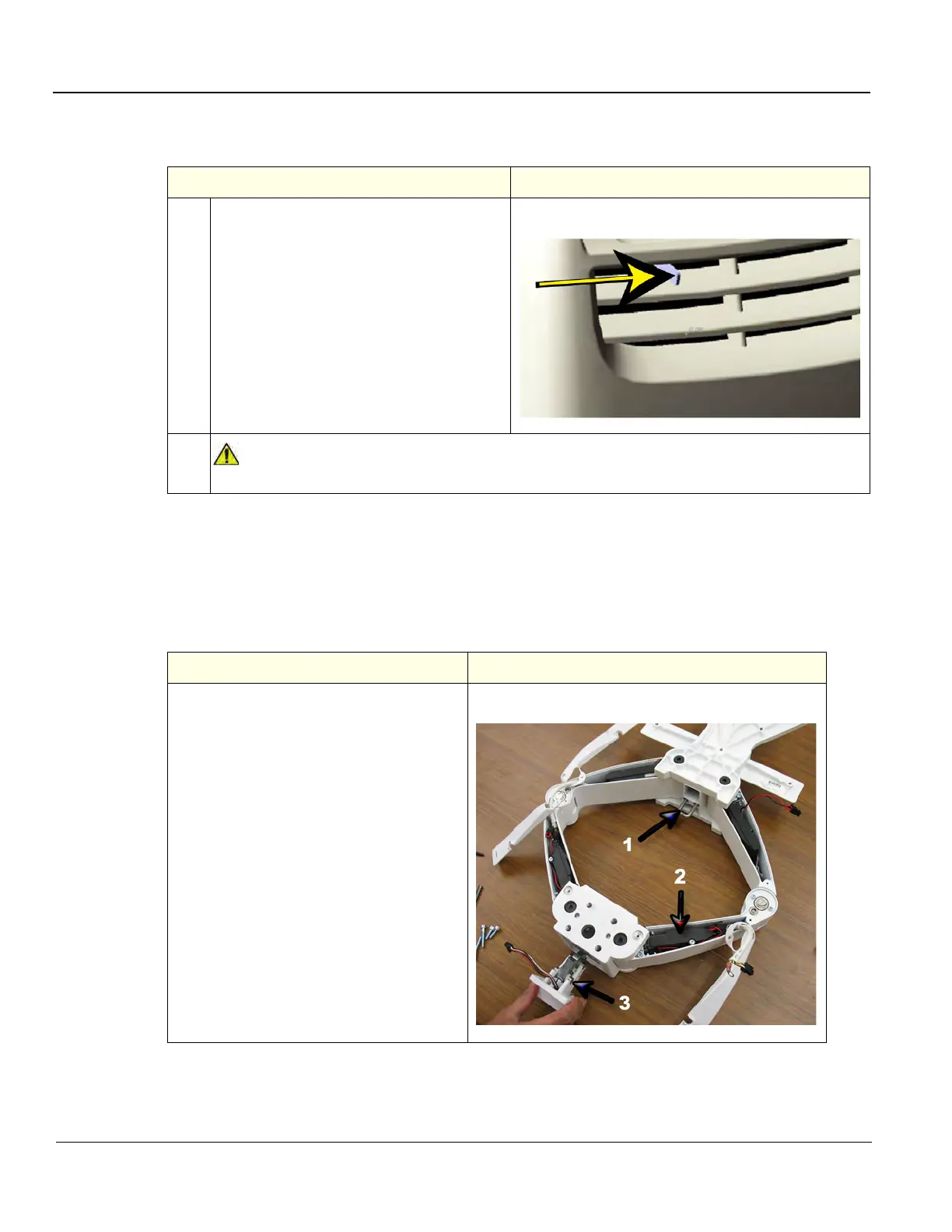

Table 6-5 Adjusting the Z Mechanism
Steps Corresponding Graphic
1.
There are no adjustments for the OP
vertical movement.
The Z mechanism can be manually
repositioned in the event the drive gear is
disconnected or has failed.
Push and hold the lever toward the center
of the device, and the OP can be adjusted
vertically.
Z Mechanism Manual adjustment lever
WARNING
WARNING
Operator console can drop unexpectedly when the mechanism is released.
Table 6-6 XY Lock and Brake Mechanism Parts
Items Corresponding Graphic
1 U-bolt
2 Brakes (one inside each of the
4 XY arms)
3 Park Lock (engages U-bolt)
XY Lock and Brake Mechanism Parts
