GE LOGIQ E9

GE
D
IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
Chapter 6 Service Adjustments 6 - 11
6-4-4-2 XY Manual Release for Lock and Brake Mechanism
Table 6-7 XY Manual Release for Lock and Brake Mechanism
Steps Corresponding Graphic

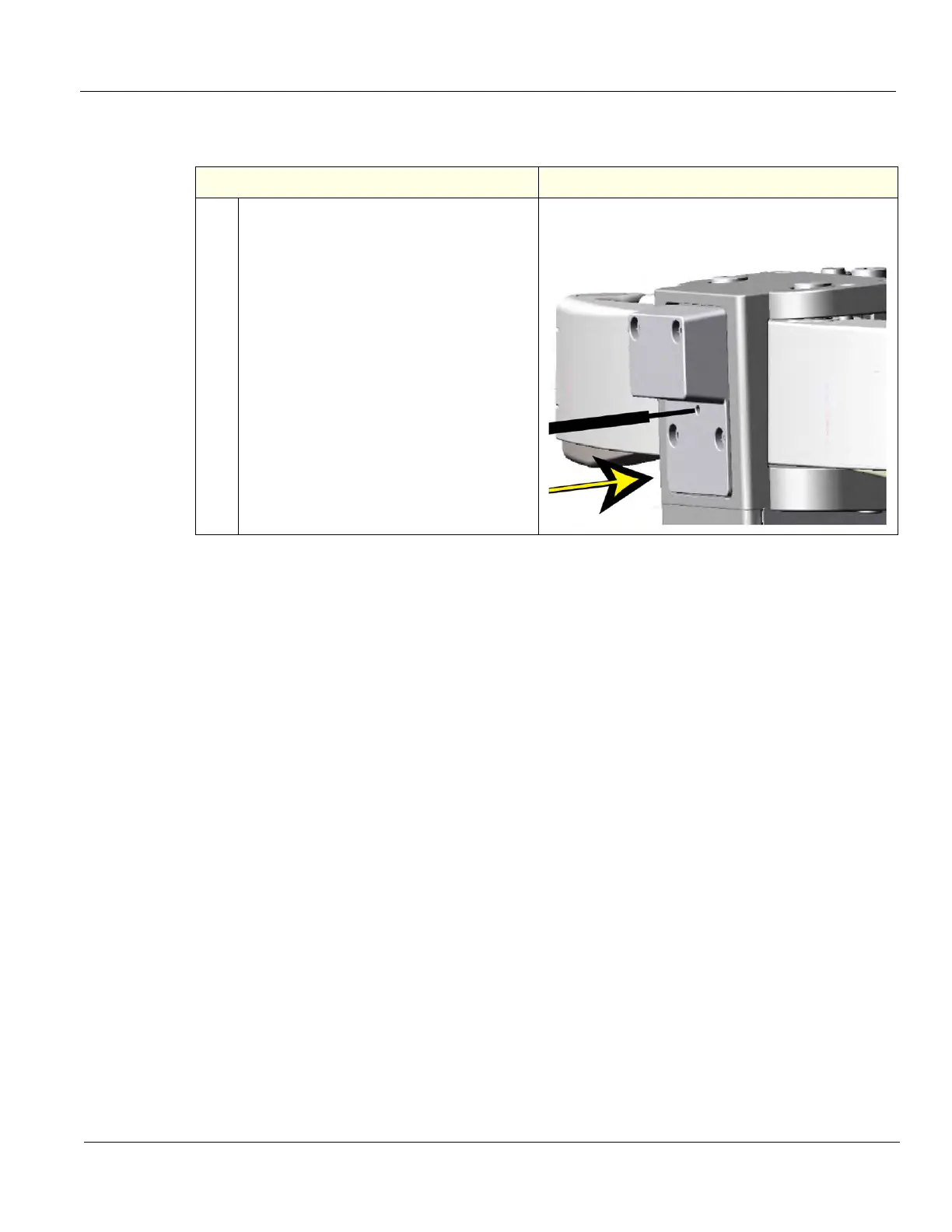

1. This procedure is intended to release and
adjust the XY mechanism.
Use a small tipped screwdriver and press in
until a "click" or the release, releases.
Some force may be required if the lock
adjustment is too tight.
XY Manual Release for Lock and
Brake Mechanism
