IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL

6 - 12 Section 6-4 - Operator Panel movement

6-4-4-3 XY Lock Adjustment for Lock and Brake Mechanism

Follow this procedure if the park lock is not working, or the lock does not respond when pressing the

Frogleg Controls:

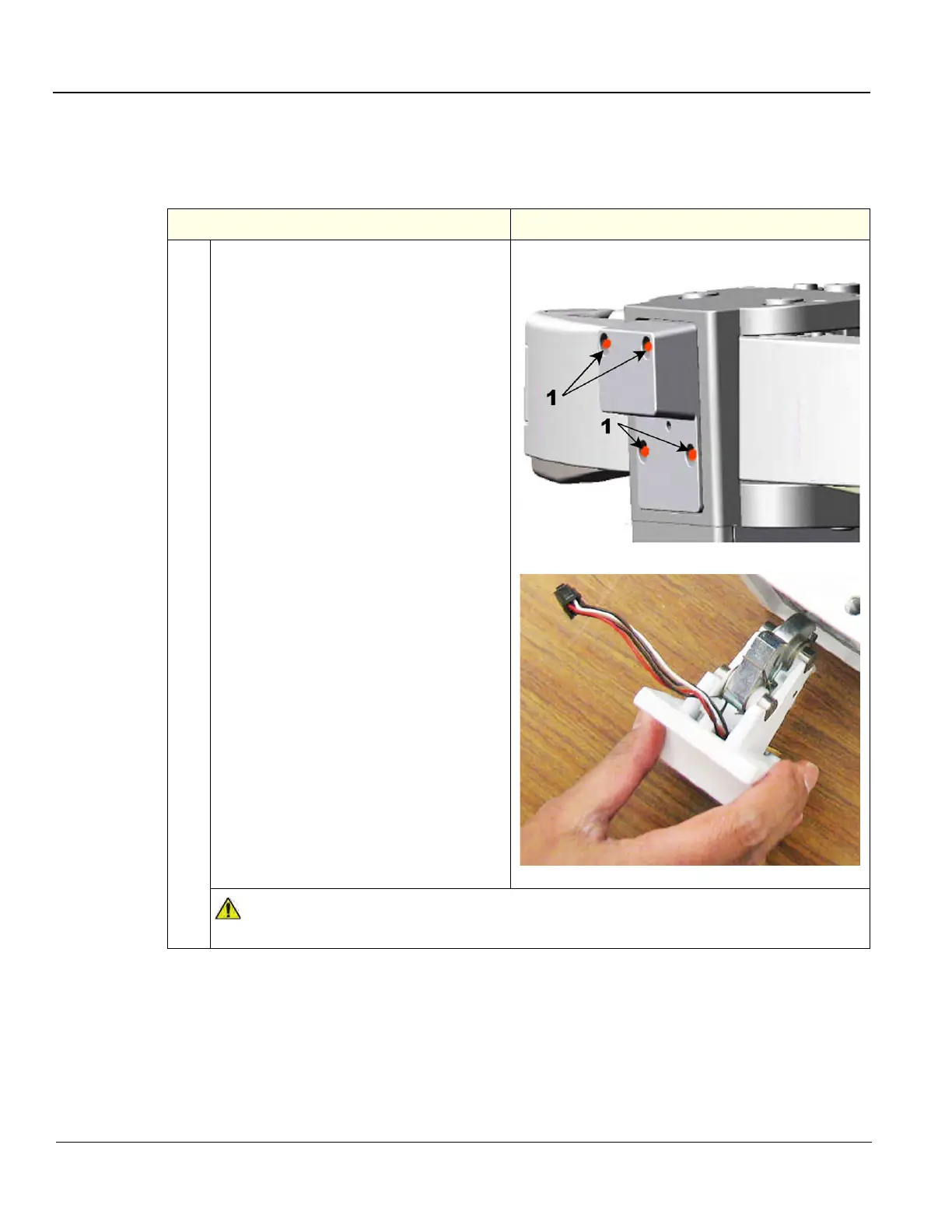

Table 6-8 XY Manual Release for Lock and Brake Mechanism

Steps Corresponding Graphic

1. Release the lock manually. See: Table 6-7

"XY Manual Release for Lock and Brake

Mechanism" on page 6-11.

Remove the four screws (1).

Park Lock screws

NOTICE

DO NOT pull the park lock out, the power cable is fragile, guide it
