IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
Chapter 6 Service Adjustments 6 - 13

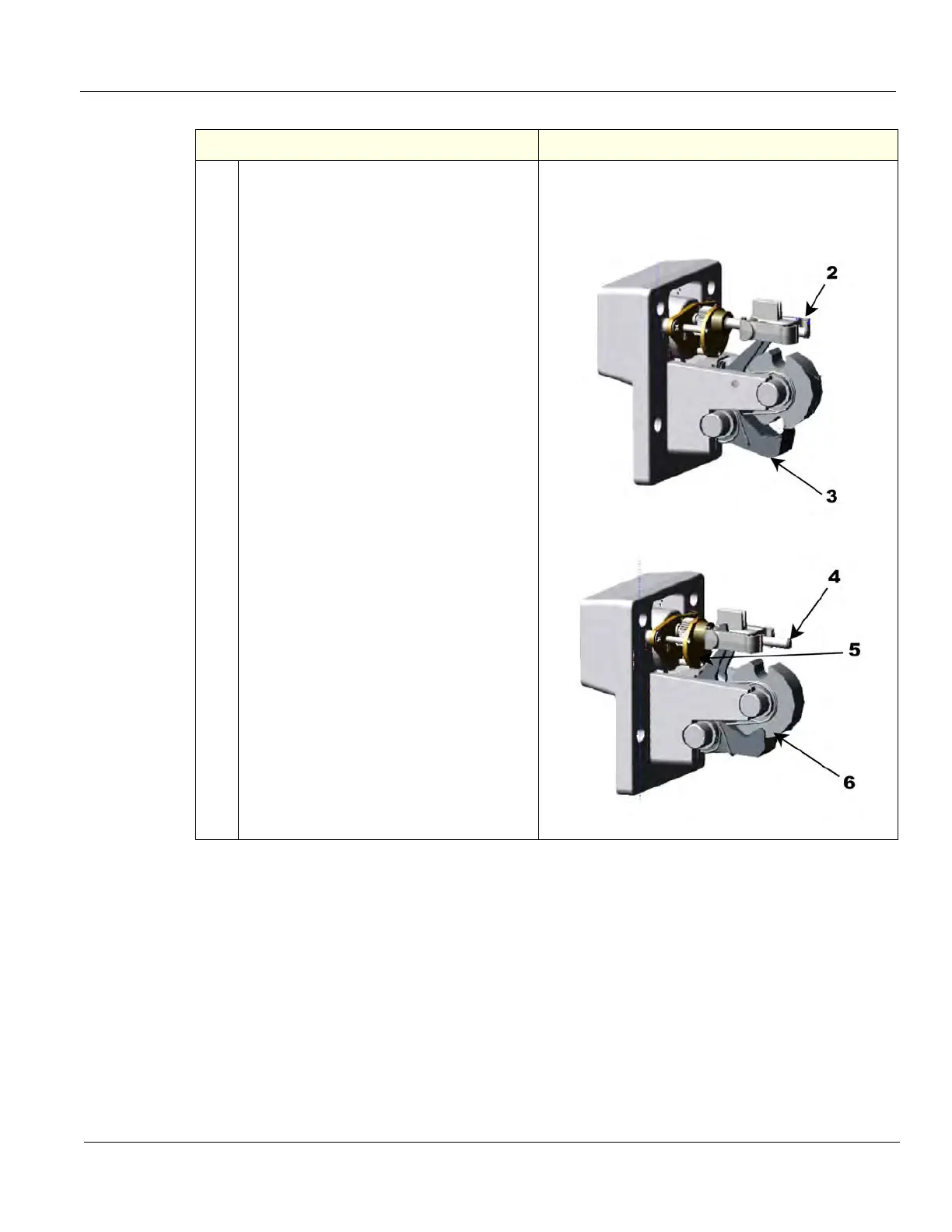

2. If park lock nut, (2) and park lock lever (3)
are in these positions., the lock will not
engage. (This occurred in some earlier
systems.) The nut and retainer did not
return to the "charged" mode after unlock.
Park Lock WILL NOT engage
when in these positions
Table 6-8 XY Manual Release for Lock and Brake Mechanism
Steps Corresponding Graphic
