IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
6 - 14 Section 6-4 - Operator Panel movement

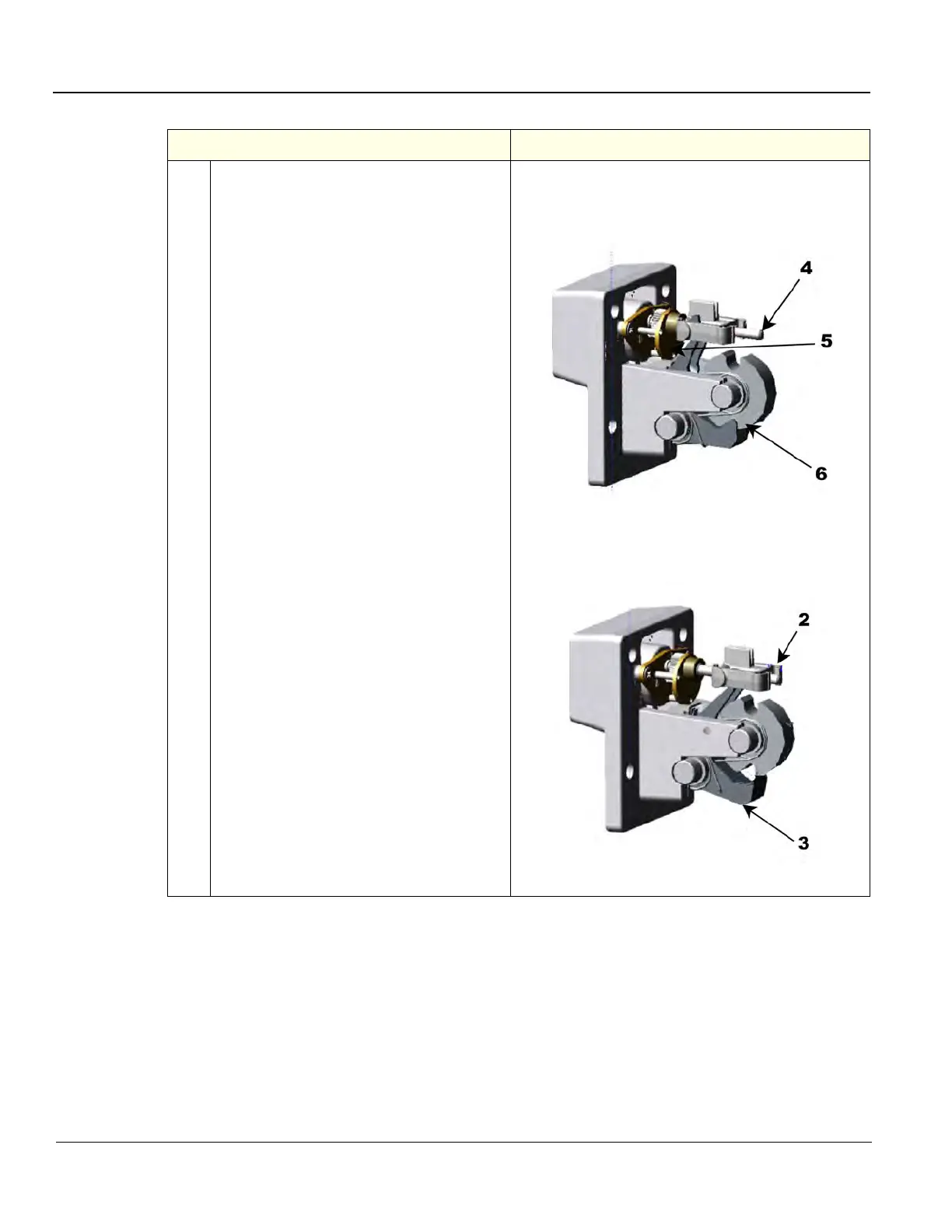

3. Rotate the threaded lead screw on the
actuator, (4) counterclockwise until the lock
nut is barely touching the bearing housing
(5) of the threaded lead screw and the two
plastic springs just touch, but do not
deform. Make sure the lever is loose and
engages with the lock wheel, (6), as shown.
Before reassembling the lock assembly,
make sure the nut, (2) and lever (3) are in
the position, as shown.
Park Lock WILL NOT engage
when in these positions
Adjustment Set
Table 6-8 XY Manual Release for Lock and Brake Mechanism
Steps Corresponding Graphic
