IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
7 - 6 Section 7-3 - Gathering Troubleshooting Data
7-3-5 Capturing Network Logs with Network Sniffer (Software R1.x.x)
A sniffer monitors network traffic and allows you to capture network data without redirecting or altering it.
Launch the network sniffer application one of the following two ways:
1.) On the Regular Scan Screen, press Alt+N. This launches the network sniffer application.
2.) Select Configure on the Distinct Network Monitor Window.
3.) Click on Capture Settings after selecting the Configuration pull-down menu.
4.) The Configuration screen opens.

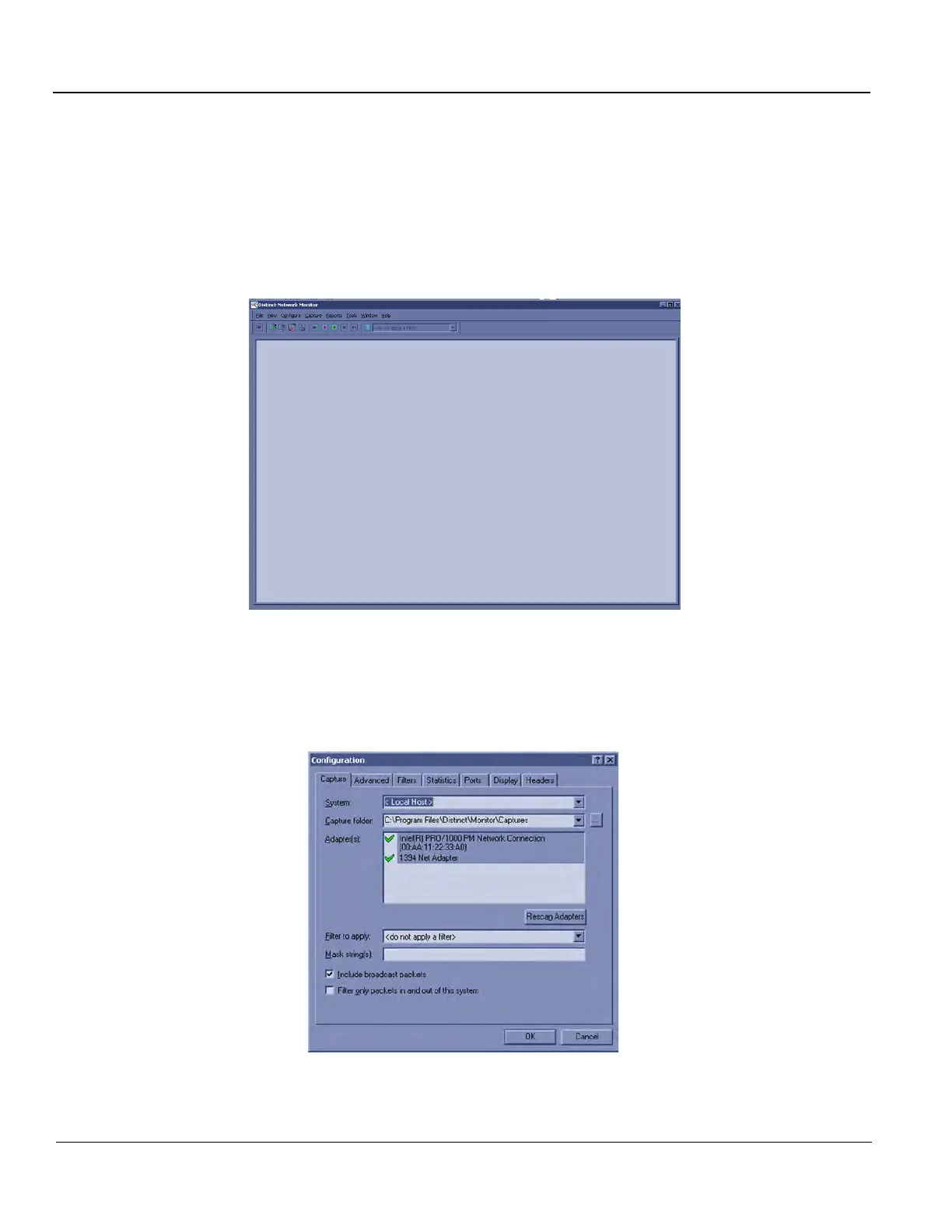

Figure 7-4 Distinct Network Monitor Window
Figure 7-5 Configuration Screen
