GE
D
IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
Chapter 7 Diagnostics/Troubleshooting 7 - 7
7-3-5 Capturing Network Logs with Network Sniffer (Software R1.x.x) (cont’d)
NOTE: Steps 5 - 12 describe how to filter the data so that you only record this system’s network activity.
If you prefer, you may skip the filter section and start the data capture now. If you do, you will
capture all network activity, not just this system’s.
5.) On the Configuration screen (Figure 7-6 "Configuration - Filters Tab" on page 7-7), select the Filters
tab
6.) In the New Filter section confirm “built-in templates” is selected, then click Create.

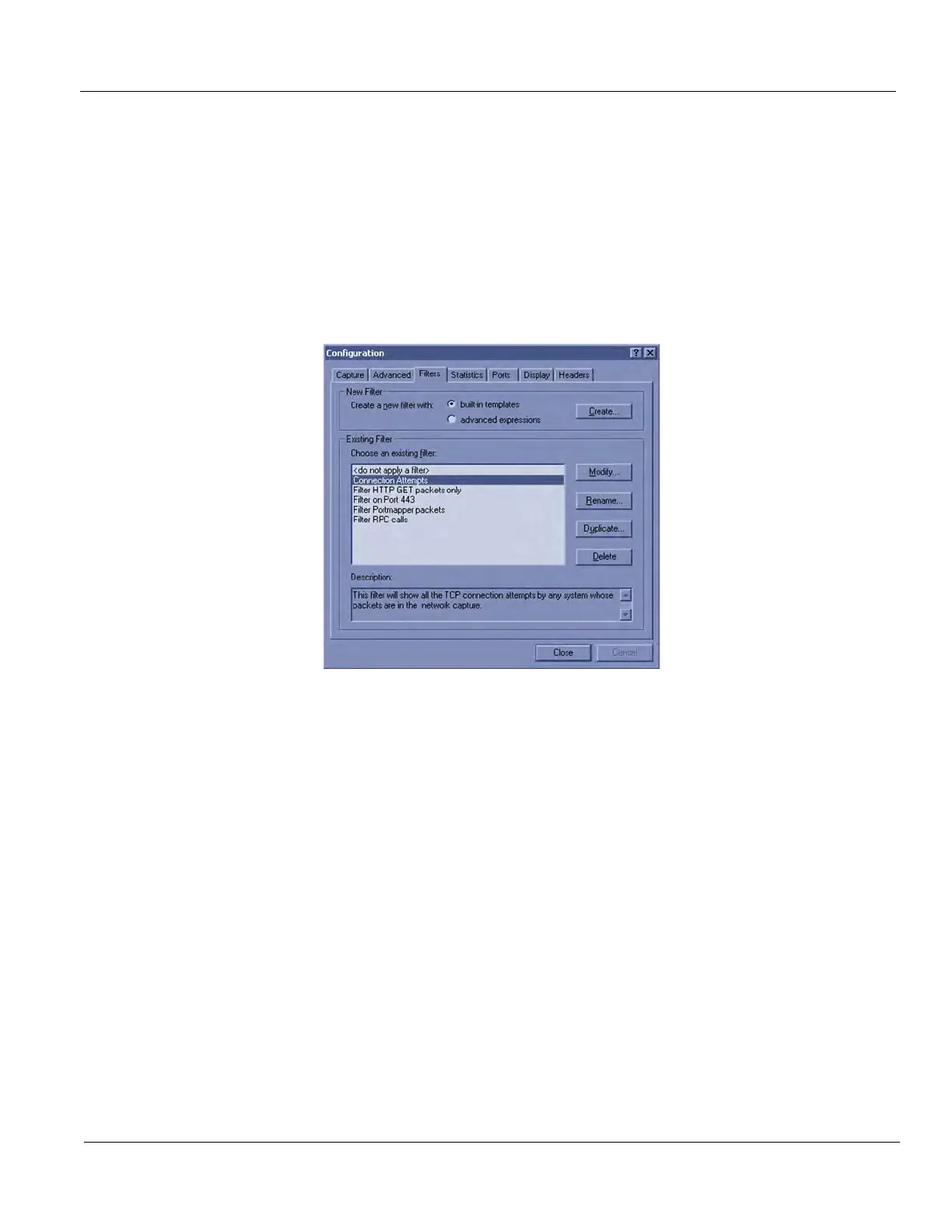

Figure 7-6 Configuration - Filters Tab
