GE LOGIQ E9 - Page 277

GE
D
IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
Chapter 7 Diagnostics/Troubleshooting 7 - 29
7-5-6-1 Launching the Op Panel Test (cont’d)

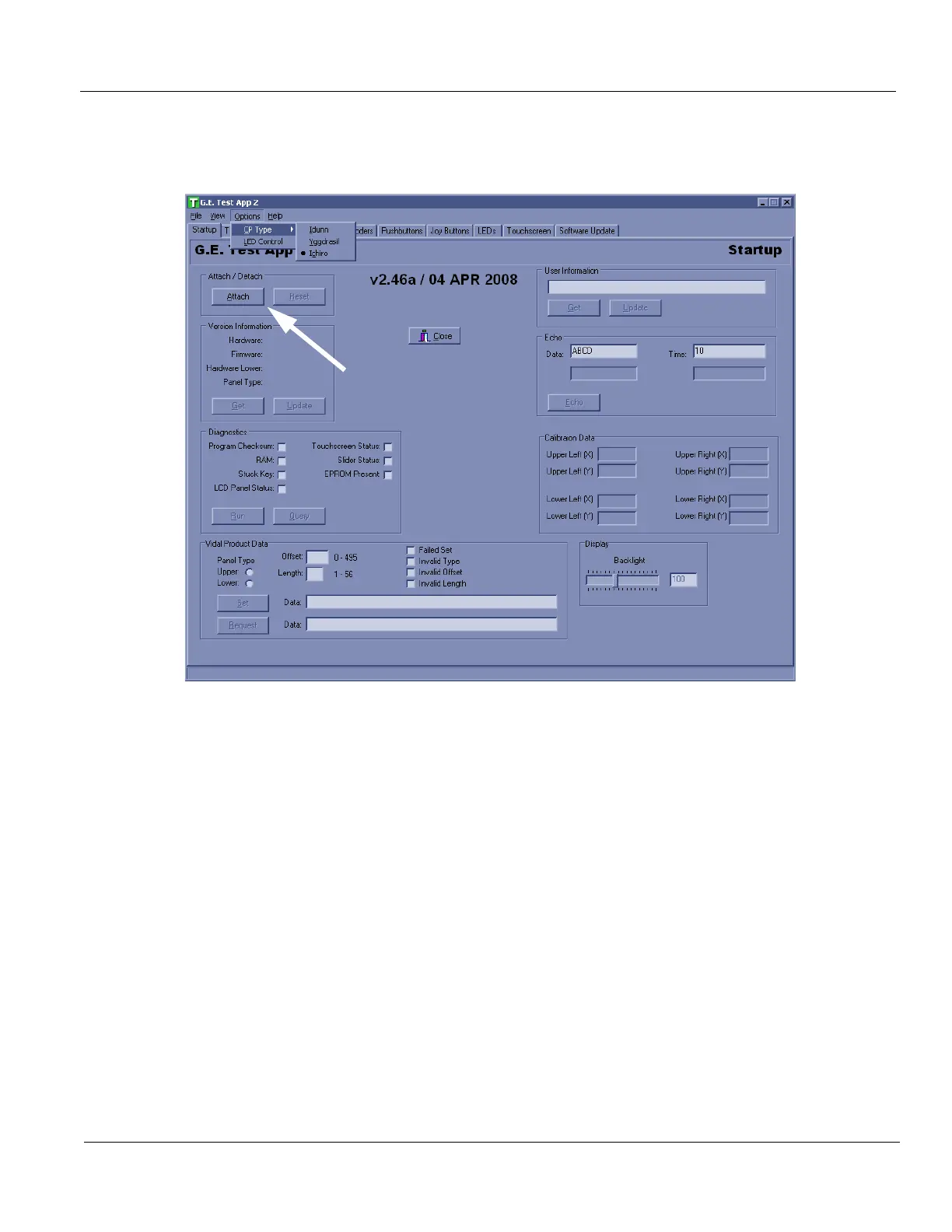

Figure 7-30 Attach and GE Test App Startup Tab - Attach Button Active - R4 and earlier
