GE
D
IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
Chapter 7 Diagnostics/Troubleshooting 7 - 33
7-5-6-3 Keyboard Tab
Test the keyboard functionality by typing on the keyboard. Verify that the corresponding key is
highlighted when each key is pressed. See: Figure 7-35 or Figure 7-36.
NOTE: The keyboard test does not give an indication when the Print Screen button is pressed.

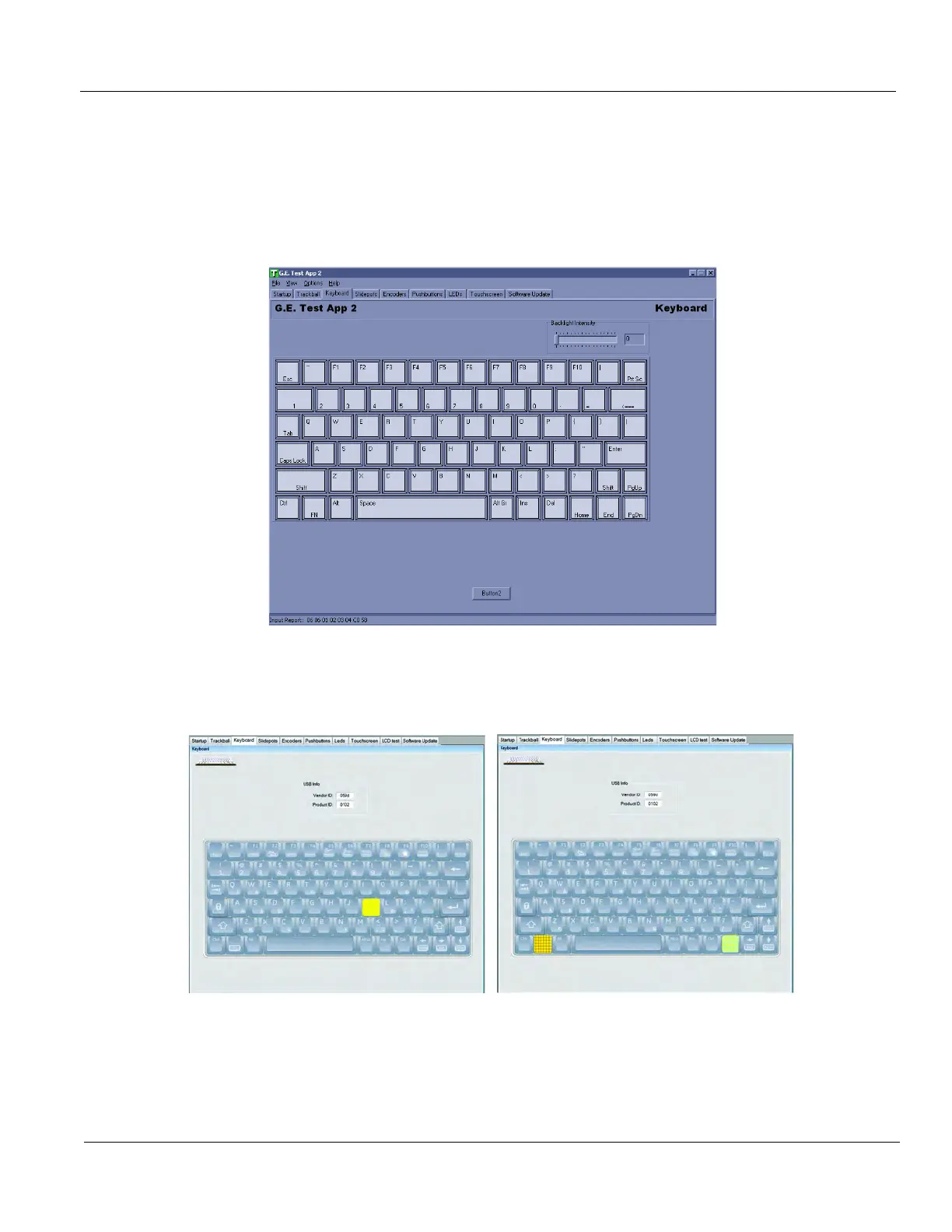

Figure 7-35 Keyboard Tab - R4 and earlier
Figure 7-36 Keyboard Tab - R5 and later
