7 - 34 Section 7-5 - Common Service Desktop
7-5-6-4 Slidepots Tab
Test the slidepot (TGC) functionality by moving each slidepot through its range. Verify that the visual
and numeric position of the slide pot are updated as the slide pot is moved.
Test the LED for each slide pot by pressing on the LED buttons. See: Figure 7-37 or Figure 7-38.
Visually verify the LED functionality on the upper operator panel.

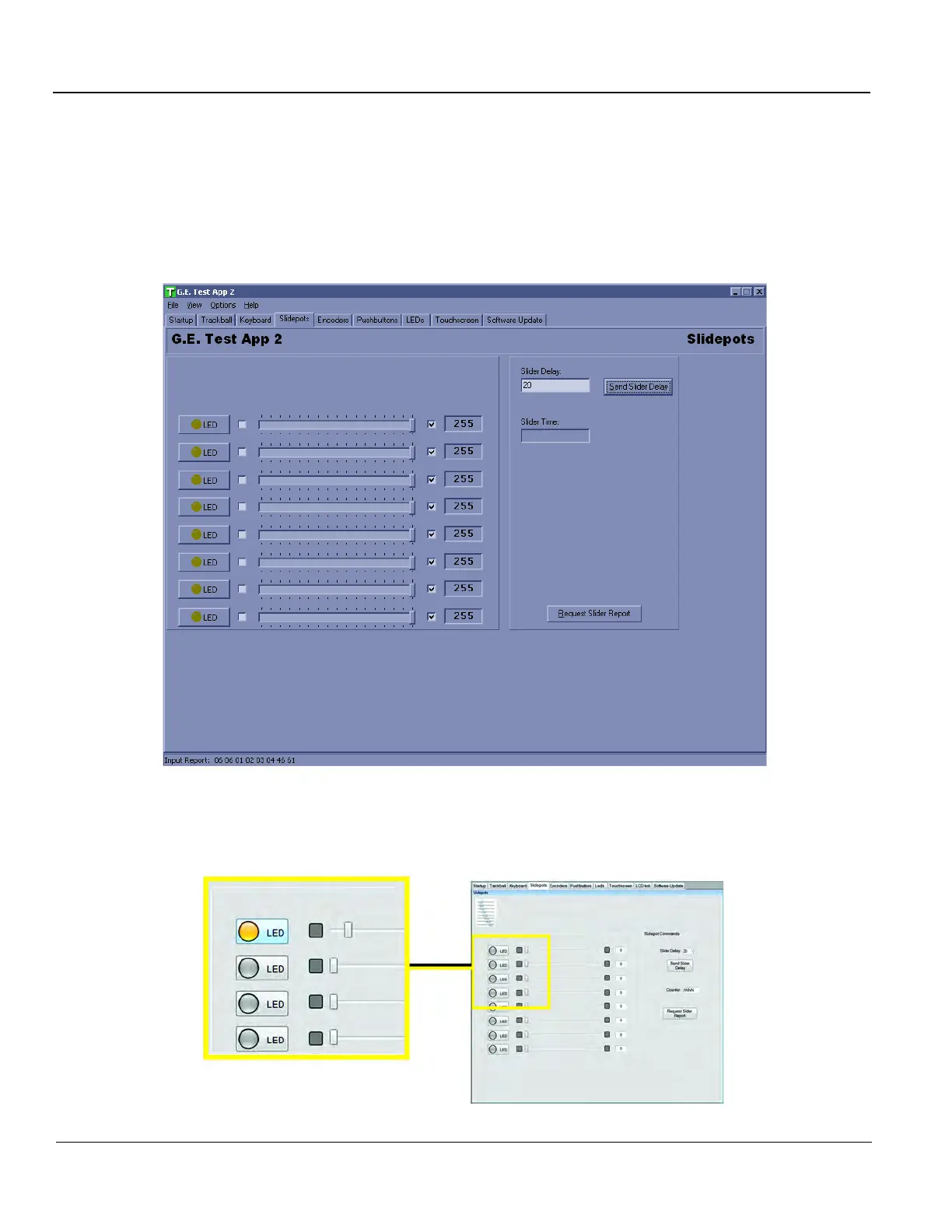

Figure 7-37 Slidepots Tab - R4 and earlier
Figure 7-38 Slidepots Tab - R5 and later
