IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
Chapter 7 Diagnostics/Troubleshooting 7 - 35
7-5-6-5 Encoders Tab
Test the encoder functionality by rotating each encoder knob. Verify that the position is updated as the
encoder is moved.
Test the encoder button selection function by pressing each knob on the op panel. Verify that the
corresponding knob is highlighted when each knob is pressed. See: Figure 7-39 or Figure 7-40.

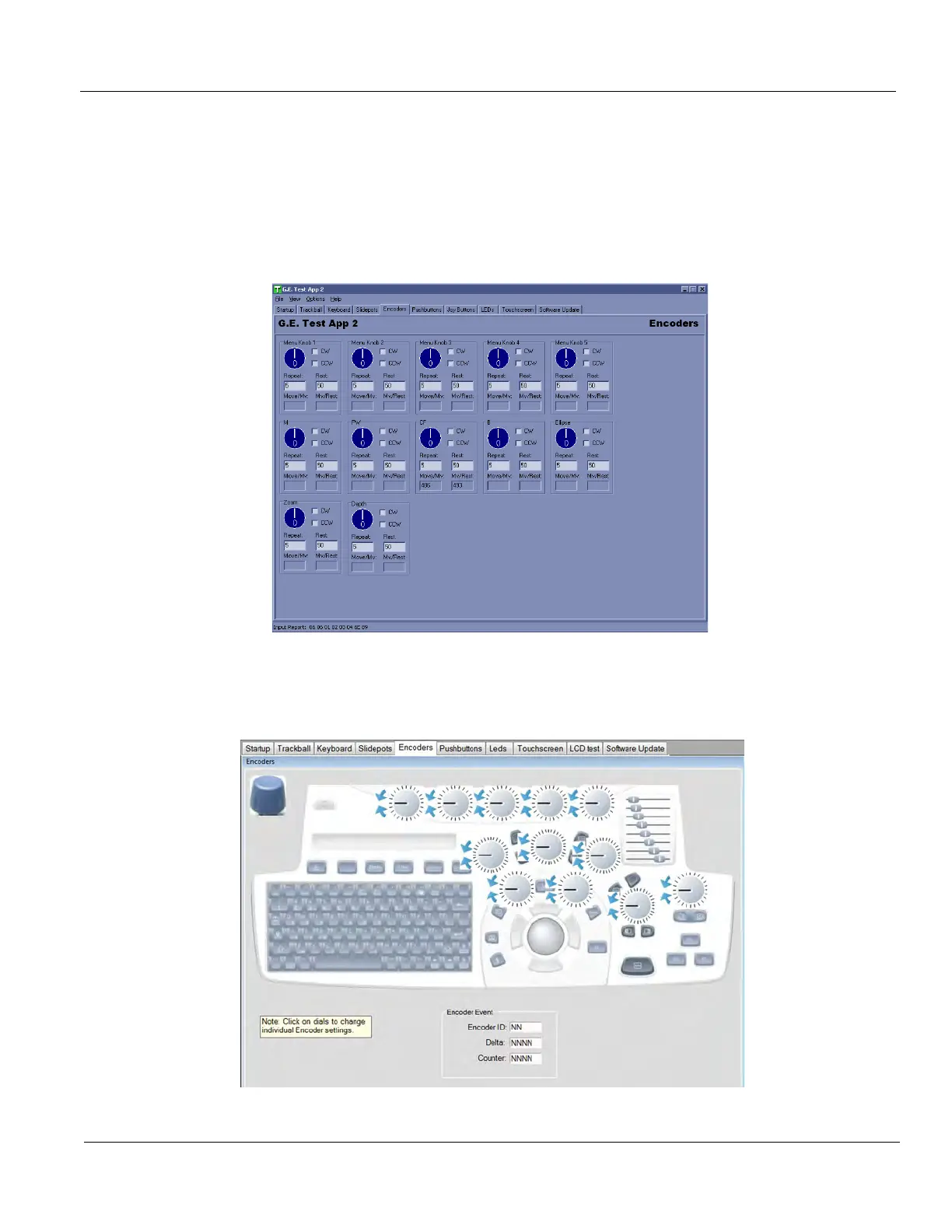

Figure 7-39 Encoders Tab - R4 and earlier
Figure 7-40 Encoders Tab - R5 and later
