7 - 36 Section 7-5 - Common Service Desktop
7-5-6-6 Pushbuttons Tab
Test the pushbutton functionality by pressing each button on the operator panel. Verify that the
corresponding pushbutton is highlighted when each button is pressed. See: Figure 7-41 or Figure 7-42.

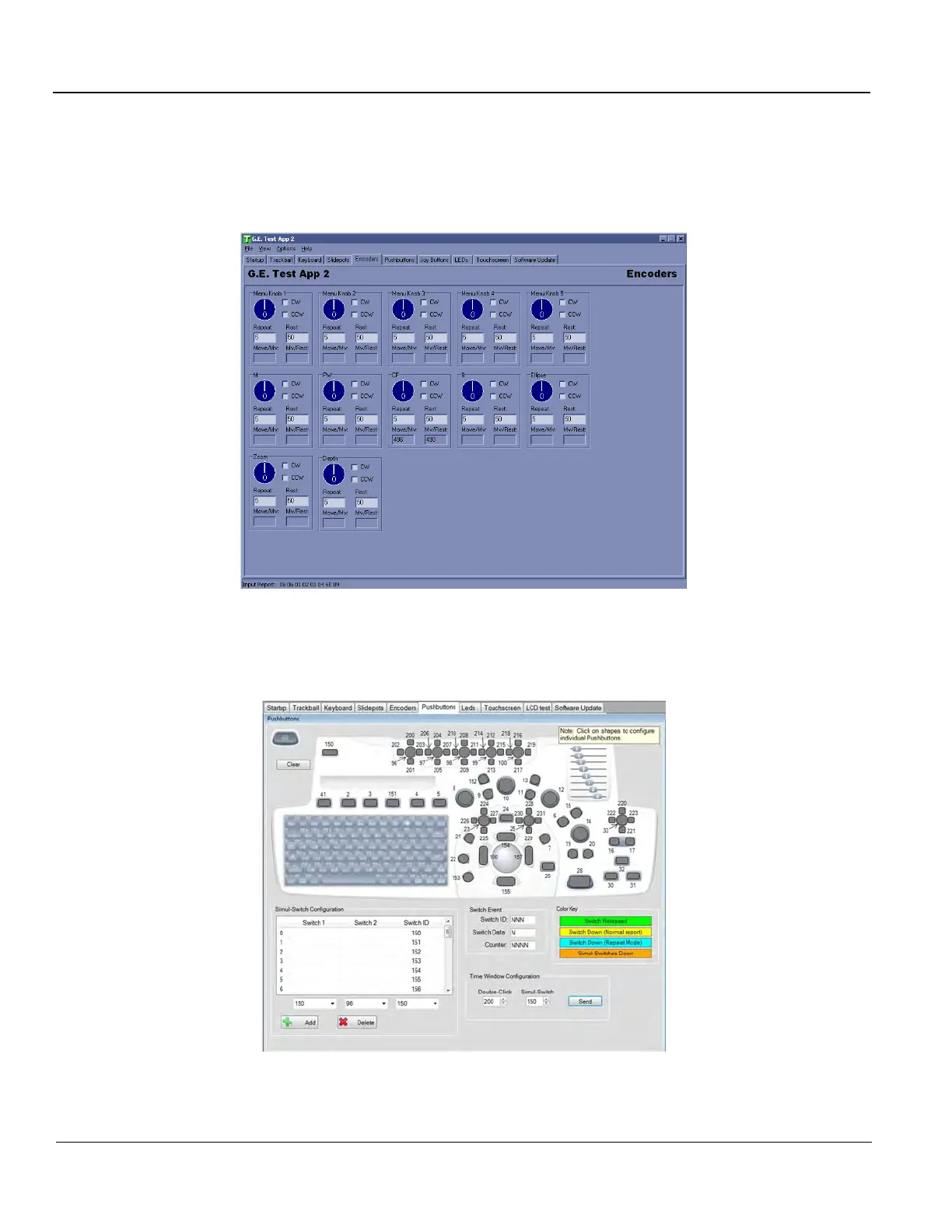

Figure 7-41 Pushbuttons Tab - R4 and earlier
Figure 7-42 Pushbuttons Tab - R5 and later
