GE LOGIQ E9 Service Manual

GE
D
IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
1 - 8 Section 1-3 - Important conventions
1-3-3 Product icons
The following table describes the purpose and location of safety labels and other important information
provided on the equipment.

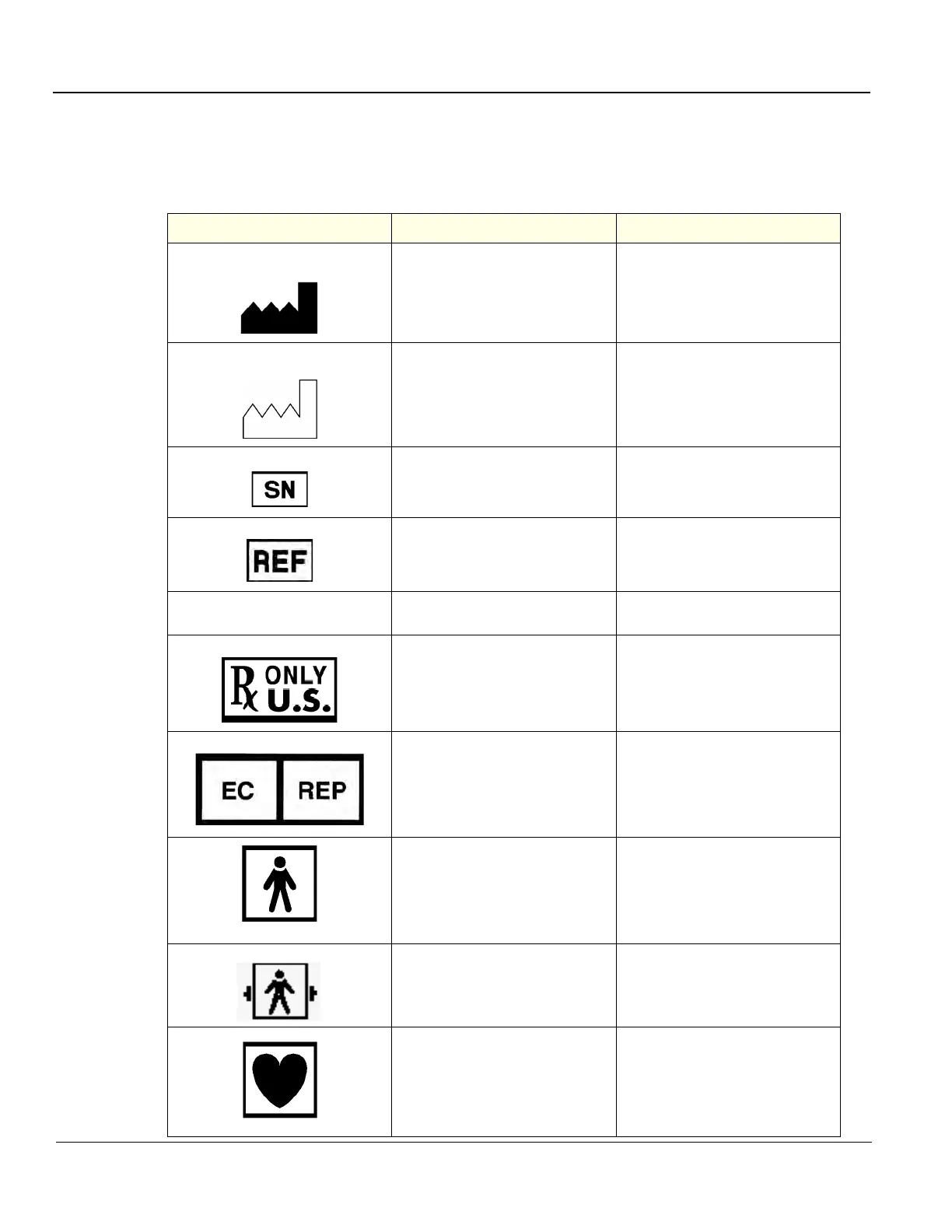

Table 1-6 Product icons 1 of 7
LABEL/SYMBOL PURPOSE/MEANING LOCATION
Identification and Rating Plate
Manufacturer’s name and address
Rear panel
Identification and Rating Plate
Date of manufacture
Rating Plate
Serial Number
Rating Plate
Catalog Number
Rating Plate
Type/Class Label
Used to indicate the degree of safety or
protection.
United States only
Prescription Requirement label
Rear panel
Authorized European Representative
address
Rear panel
Equipment Type BF (man in the box
symbol) IEC 878-02-03 indicates B
Type equipment having a floating
applied part.
Probe connectors including Doppler
probe connector
Equipment Type BF Applied Part (man
in the box with paddle) symbol is in
accordance with IEC 60417-5334.
Probe
Equipment Type CF (heart in the box
symbol) IEC 878-02-05 indicates
equipment having a floating applied part
having a degree of protection suitable
for direct cardiac contact.
Probe connectors and ECG connector.
On newer systems also on the rear of
the system.

GE LOGIQ E9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Transducer Ports	4 active ports
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Vascular, Musculoskeletal, Small Parts, Urology, Pediatric, Cardiac, Obstetrics/Gynecology
Transducers	Linear, Convex, Phased Array, Volume
Doppler Modes	Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Elastography	Yes
Advanced Features	B-Flow, Volume Navigation
Portability	Cart-based system
Display	19-inch high-resolution LCD monitor
