IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
8 - 12 Section 8-4 - Loading / Reloading / Upgrading the Software
8-4-6-4 System Software Load - R3 and earlier (cont’d)
11.)Press any key to continue; or to abort, remove the disk from the drive and press CTRL-C.
The System Software Load Instruction window displays.

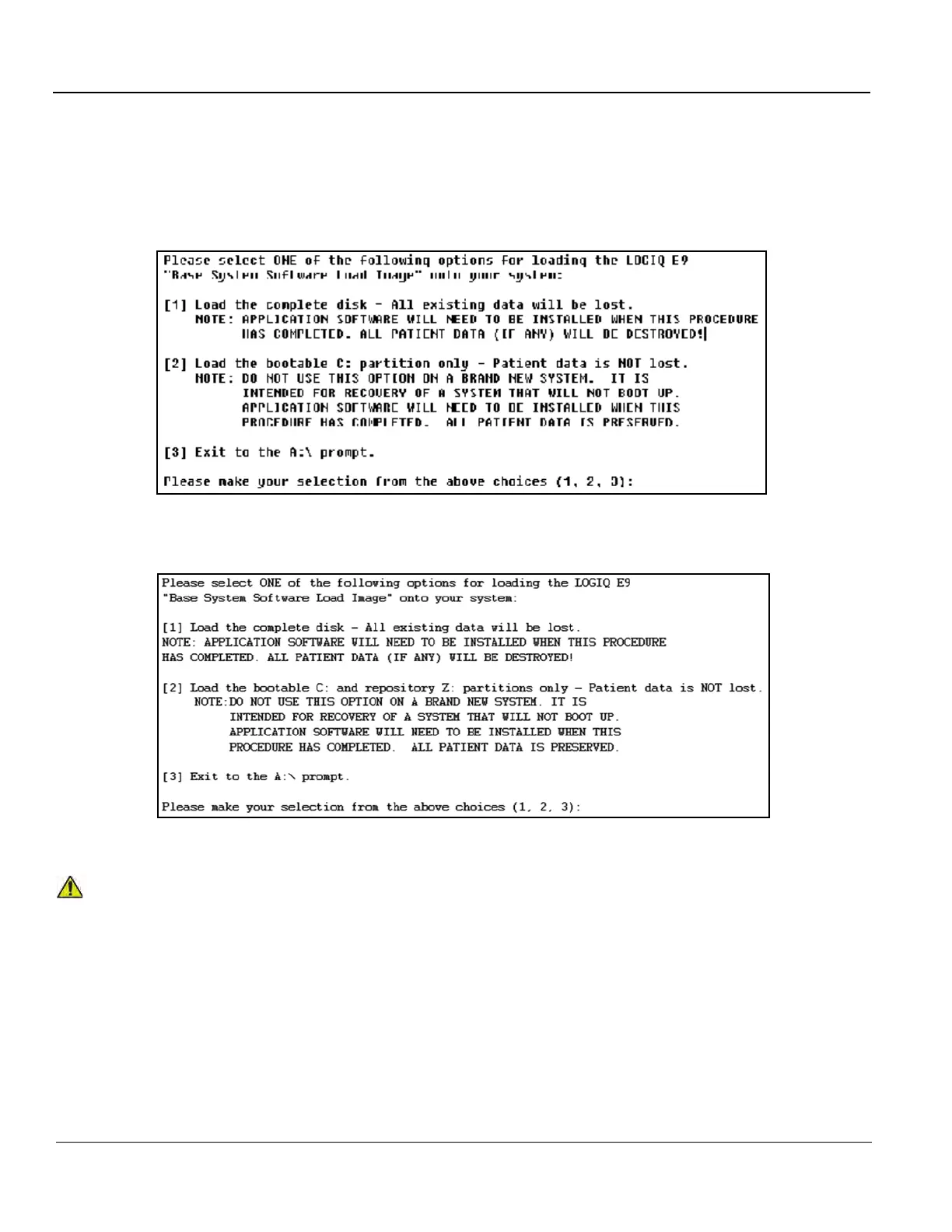

Figure 8-3 System Software load instruction (R1x.x)
Figure 8-4 System Software load instruction (R2.x.x)
If you select [1] in the next step, ALL existing software and data will be erased. If backup has not been
performed as described earlier in this manual, all data like Patient Database, System Configuration and
User Configurations (Customer Presets) will be lost.
