IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL

Chapter 8 Replacement procedures 8 - 31

8-5-2-1 Side Covers removal

NOTE: Whenever the left Side Cover is removed, clear the BEP Fan(s) intake(s) of any debris.

When removing or installing the right side cover on a LOGIQ E9 with the On-board V Nav Stand, the

cover is removed and installed in the same manner, except the rear portion of the cover must be placed

behind the stand.

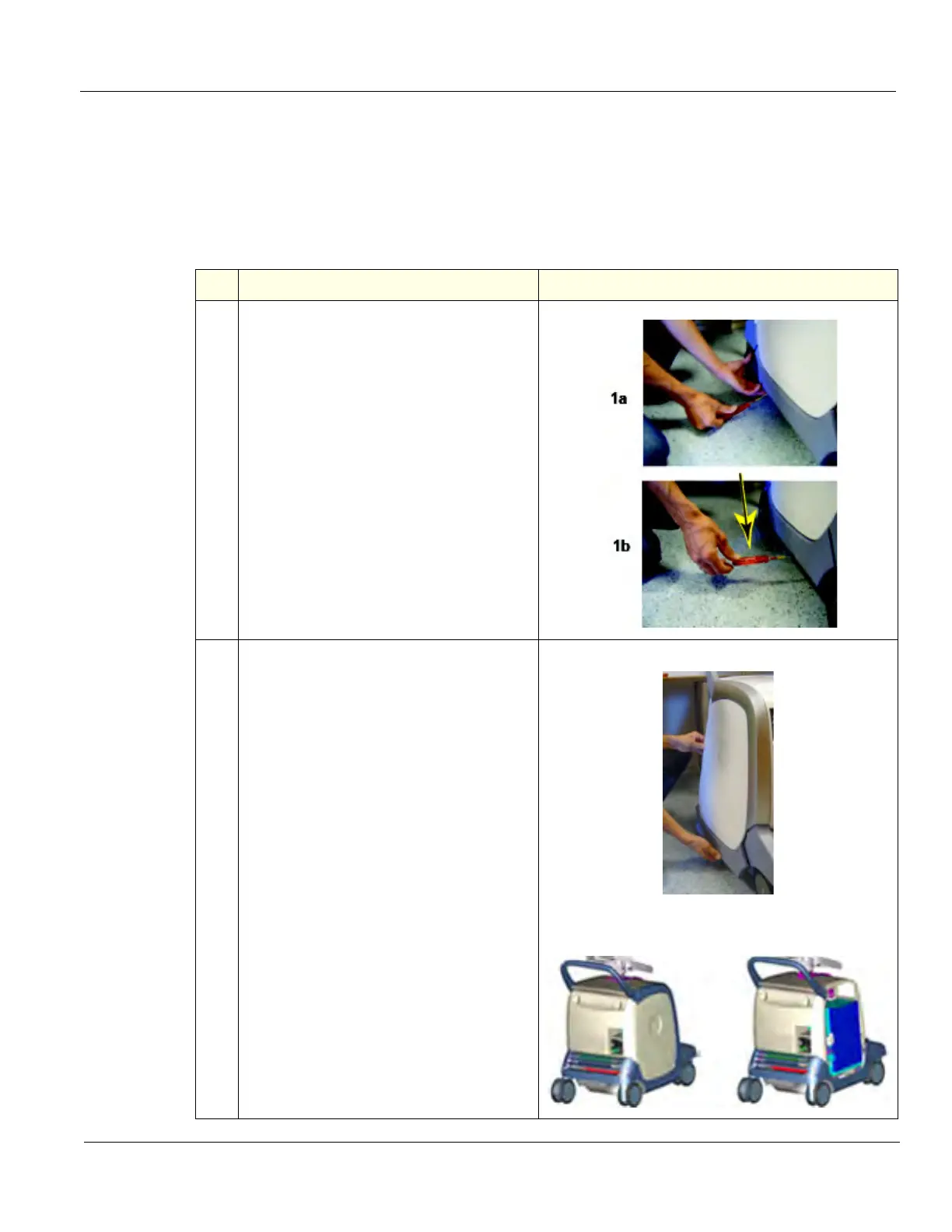

Table 8-4 Side Covers removal

Steps Corresponding Graphic

NOTE: The removal procedure is easier if

the rear lock is released first, and then the

front lock.

The Side Covers are “clicked” on to the

LOGIQ E9 with two locks, located at the

lower end of the cover.

1a. Push a #1 phillips screwdriver into the

rectangular hole in the Side Bumper until it

reaches the lock mechanism.

1b. Push the handle on the screwdriver

downwards to release the lock.

Lift the cover backwards and up to remove

it from the system. Repeat steps for the

opposite side.

Set cover in a safe place.

LOGIQ E9 with Covers and

Side Cover removed
