IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
8 - 32 Section 8-5 - Replacing Covers and Bumpers
3.

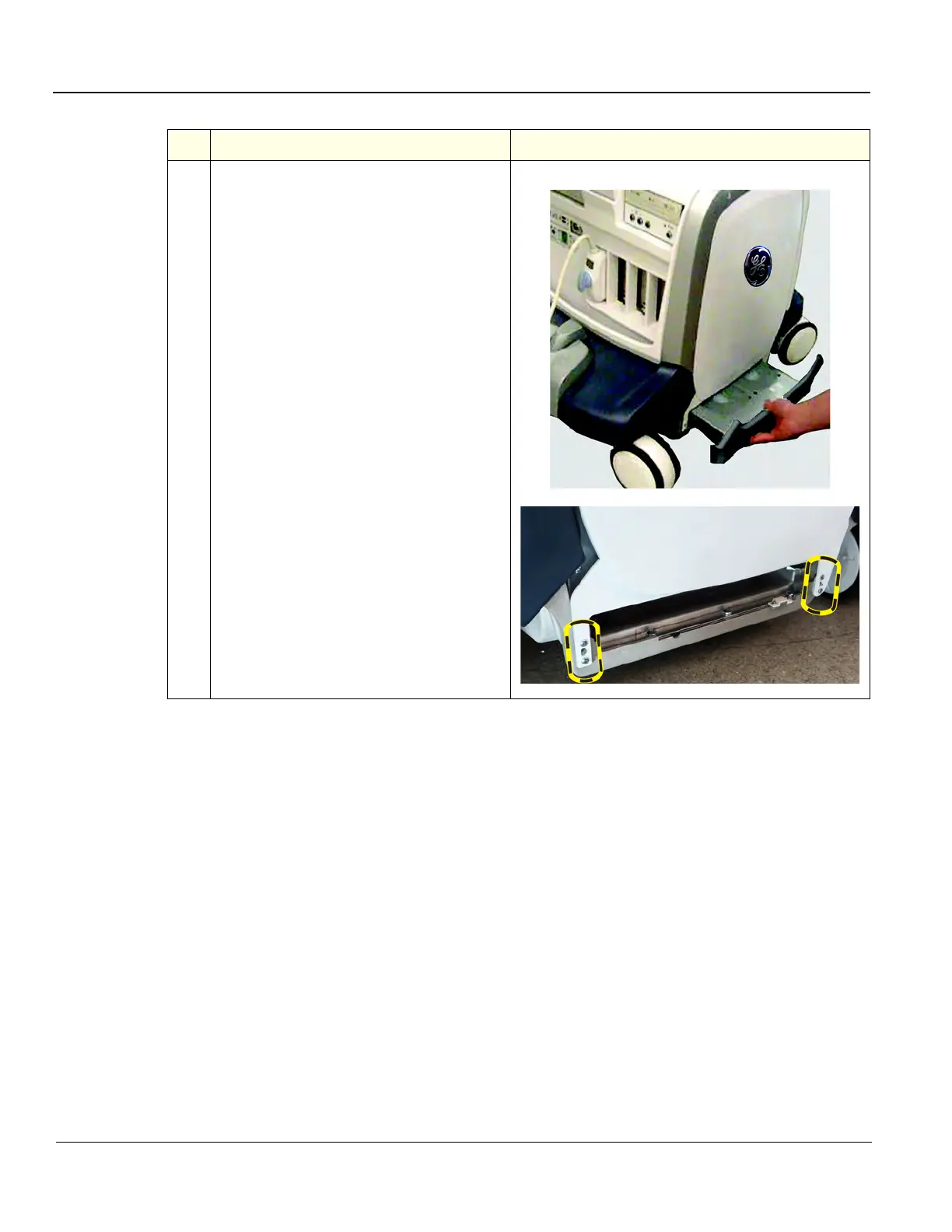

If the LOGIQ E9 has the Removable Fan
Tray, the right Side Cover removes by
removing the Fan Tray and the four Phillips
screws at the bottom of the Cover.
Slide Fan Tray out of the LOGIQ E9.
Remove the four Phillips screws at the
bottom of the Cover.
Table 8-4 Side Covers removal
Steps Corresponding Graphic
