IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL

Chapter 8 Replacement procedures 8 - 39

8-5-4-2 Top Cover installation

Table 8-13 Top Cover Installation

Steps

Corresponding Graphic

1. Remove the two screws reinstalled to avoid

damage to the Rear Handle.

Position the Top Cover onto the Front Cov-

er at the four hooks.

Install and tighten the two Phillips screws.

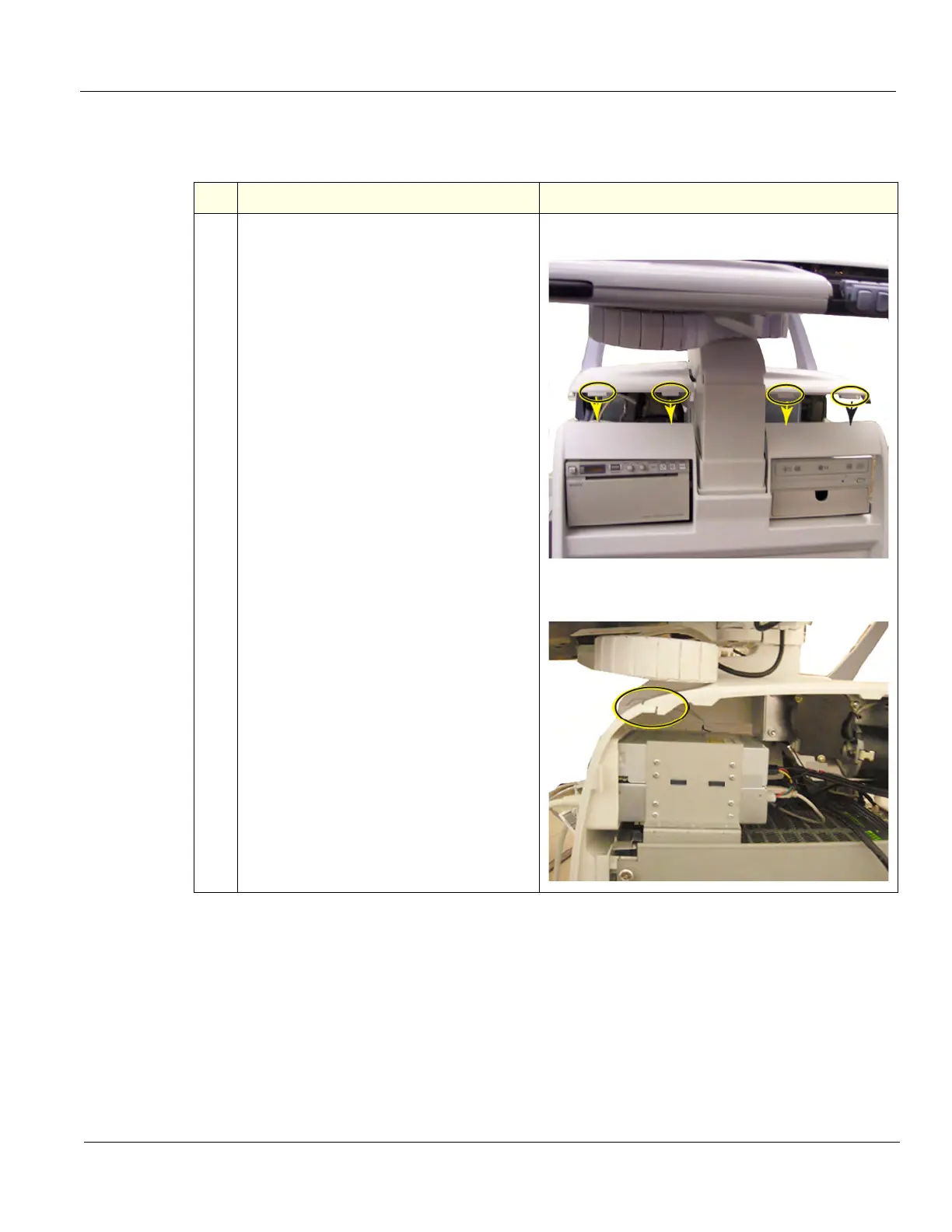

Hook Top Cover onto Front Cover

(seen from front)

Hook Top Cover onto Front Cover

(seen from side)
