IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL

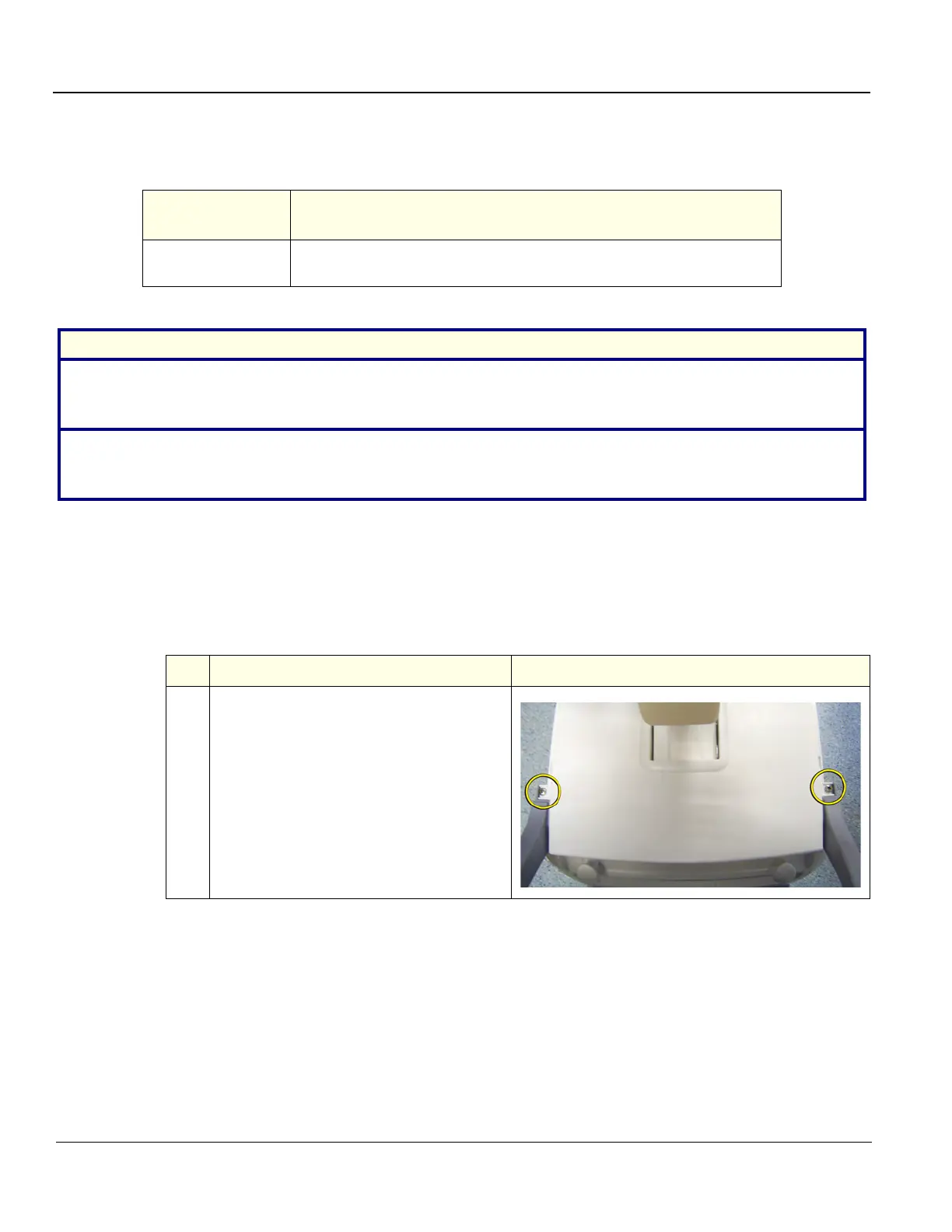

8 - 38 Section 8-5 - Replacing Covers and Bumpers
8-5-4 Top Cover replacement
8-5-4-1 Top Cover removal
Table 8-10 Manpower / Time and Tools
Manpower /
Time
Tools
One person /
15 minutes
Refer to: 8-2-5 "Tools needed for servicing the LOGIQ E9" on page 8-5.
Table 8-11 Preparations and Preparation Links
Preparations - you must perform the following steps
1. Power down the system.
2. Disconnect the mains power cable from the wall outlet and all Probes and External I/O Cabling.
3. Remove Side Covers.
Preparation Links (if you need more information):
• 4-2-3 "Power shut down" on page 4-7.
• 8-5-2 "Side Covers replacement" on page 8-30.
Table 8-12 Top Cover removal
(Top Cover Screw placement as seen from above.)
Steps
Corresponding Graphic
1.. Remove the two screws that secure the Top
Cover.
Remove the Top Cover and gently pull back
and up.
Reinstalled to the screws to avoid damage
to the Rear Handle.

GE LOGIQ E9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Transducer Ports	4 active ports
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Vascular, Musculoskeletal, Small Parts, Urology, Pediatric, Cardiac, Obstetrics/Gynecology
Transducers	Linear, Convex, Phased Array, Volume
Doppler Modes	Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Elastography	Yes
Advanced Features	B-Flow, Volume Navigation
Portability	Cart-based system
Display	19-inch high-resolution LCD monitor
