IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
Chapter 8 Replacement procedures 8 - 49

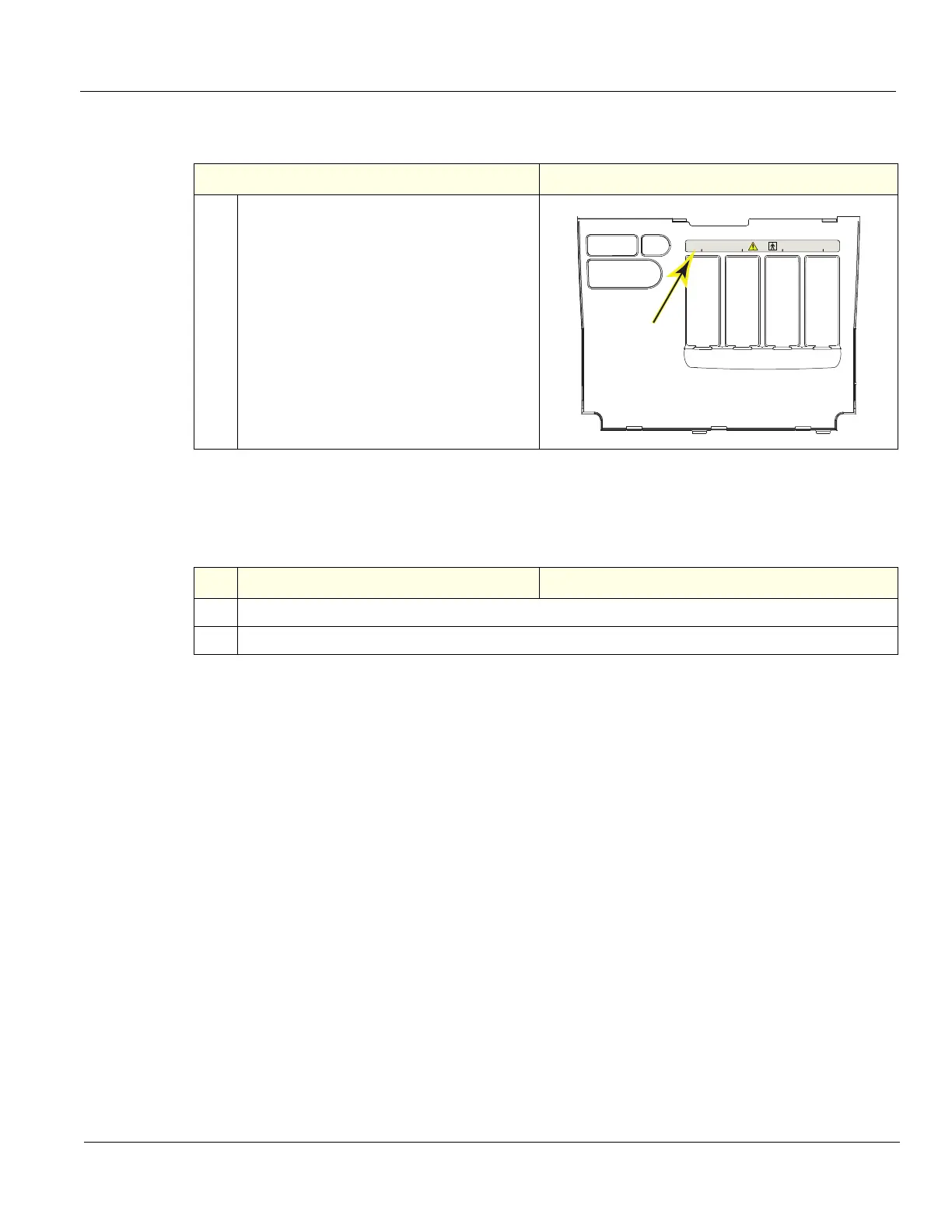

8-5-8-2 Probe Connectors Label Placement
8-5-8-3 Plate Connectors w/Guide installation
Table 8-33 Probe Connectors Label Placement
Steps
Corresponding Graphic
1. Remove the adhesive from the new Label
and place it above the Probe Connector
openings, as shown.
If replacing the Label only, remove the old
Label completely.
Table 8-34 Plate Connectors w/Guide installation
Steps
Corresponding Graphic
1. Position the plate and snap it into position.
2. Install the Front Cover, Foot Rest Bumper, Top Cover and the Side Covers.
