IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
8 - 90 Section 8-6 - Replacing Top Console Parts
2.
Disconnect the cables to the Monitor.
NOTE: If you are replacing any cables (1),
you will also need to remove two additional
tie-wraps (2) at the bracket.
Remove the clamps (3).
NOTE: If the device is equipped with the
WLAN option, remove the WLAN dongle
and transfer it to the new monitor.
To remove the dongle, slightly lift up the
end to disengage the Velcro, then pull the
dongle out of the USB port.

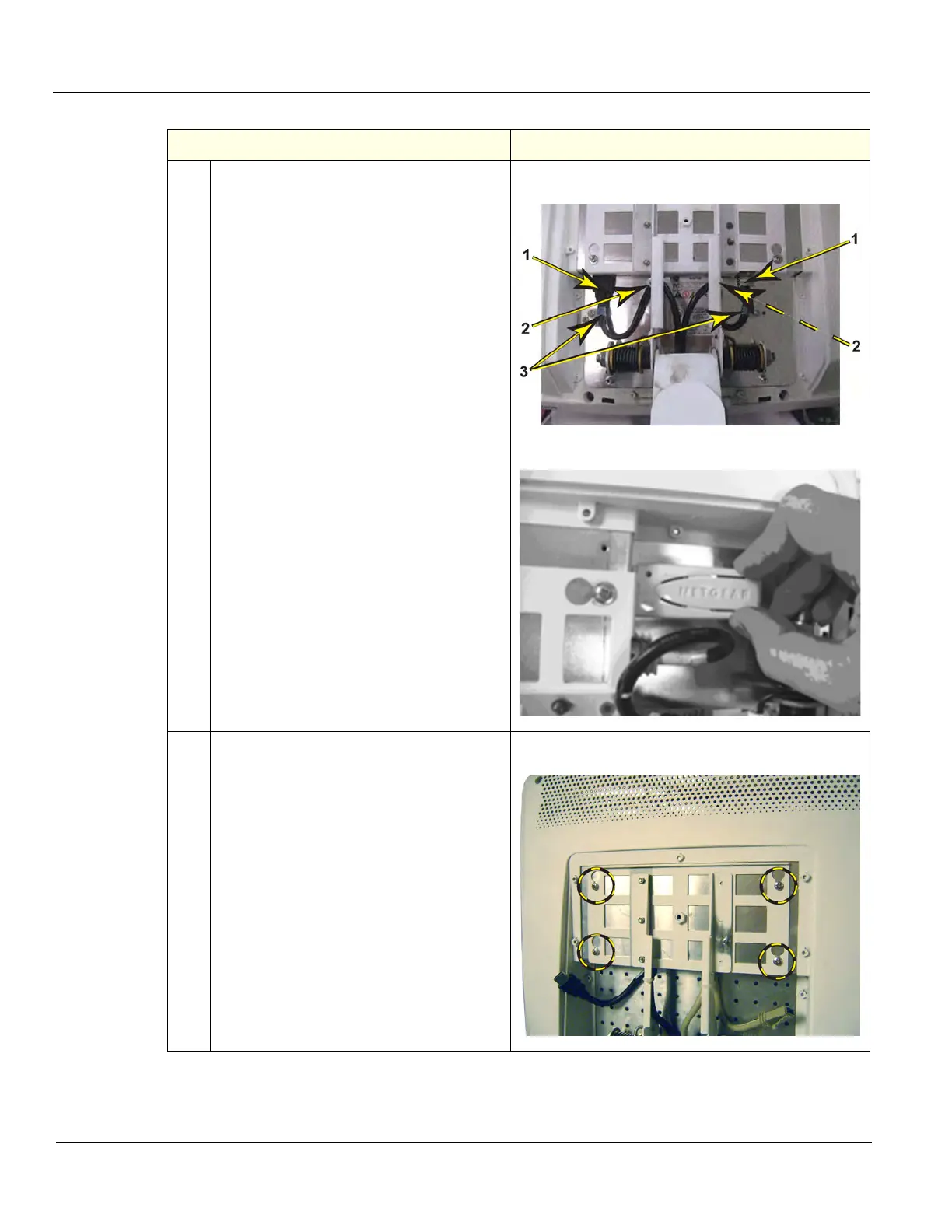

LCD Monitor Cables and Clamps
WLAN Dongle removal
3.
Tilt the monitor back to vertical position.
Lock the monitor back into place vertically.
Loosen the four screws by turning each
screw between one half and one turn
counter-clockwise. You don’t need to
remove the screws.
Lift the LCD Monitor assembly upwards
until you can lift it away from the Monitor
Bracket.
Place the LCD Monitor on a clean and safe
surface.
LCD Monitor fixing screws
Table 8-56 LCD Monitor removal - R3.x and earlier
Steps Corresponding Graphic

GE LOGIQ E9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Transducer Ports	4 active ports
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Vascular, Musculoskeletal, Small Parts, Urology, Pediatric, Cardiac, Obstetrics/Gynecology
Transducers	Linear, Convex, Phased Array, Volume
Doppler Modes	Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Elastography	Yes
Advanced Features	B-Flow, Volume Navigation
Portability	Cart-based system
Display	19-inch high-resolution LCD monitor
