GE LOGIQ E9 Service Manual

GE
D
IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
Chapter 8 Replacement procedures 8 - 95

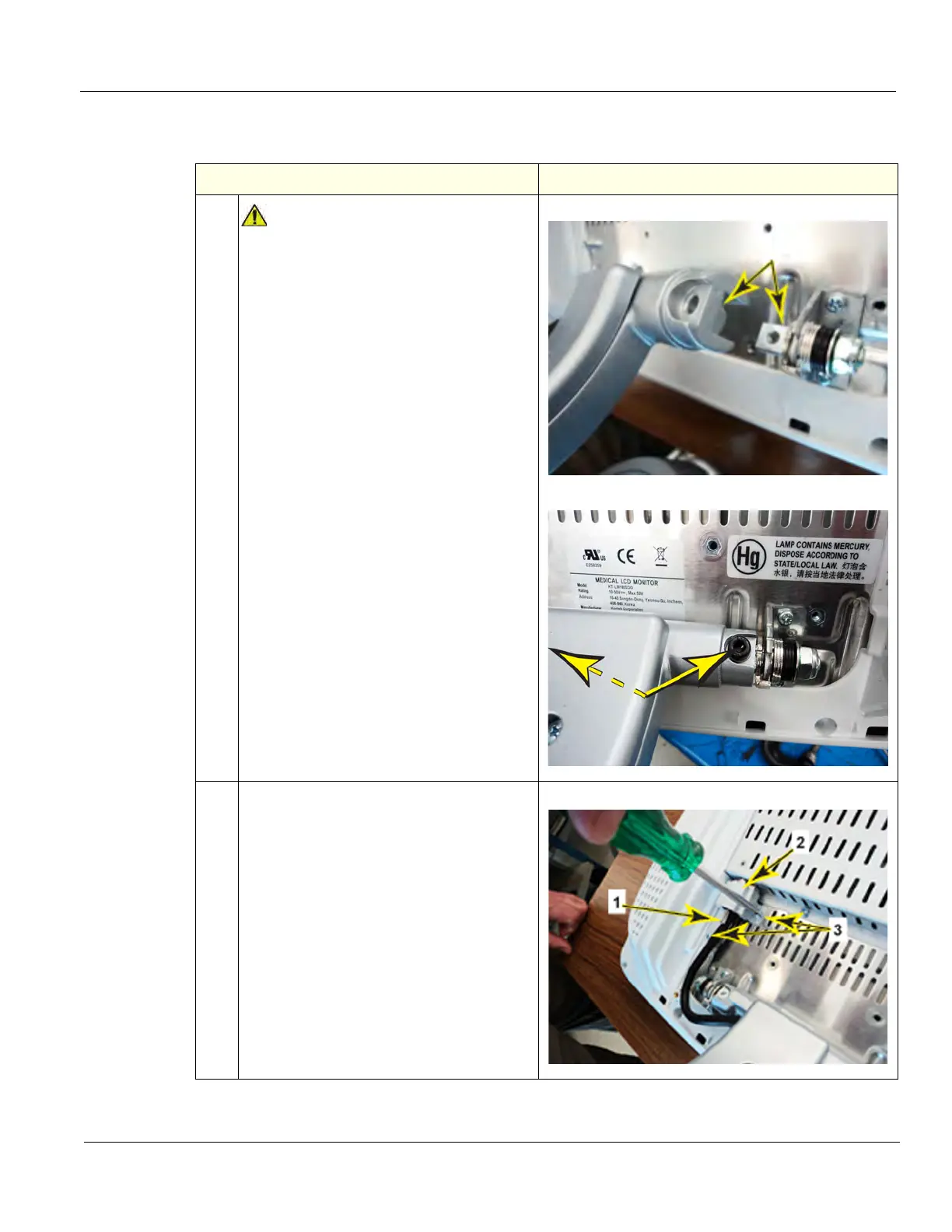

8-6-2-4 LCD Monitor V2 installation - R4.x
Table 8-59 LCD Monitor V2 installation - R4.x
Steps Corresponding Graphic
1.
WARNING
WARNING
WHEN INSTALLING THE LCD TO THE
ARM, KEEP THE LCD ARM ASSEMBLY
IN THE LOCKED POSITION. THE
SPRINGS TO SUPPORT THE LCD CAN
CAUSE THE ARM TO SPRING OPEN
CAUSING SEVERE PERSONAL INJURY
AND PROPERTY DAMAGE.
Keep the LCD supported and mate the flat
surfaces of the LCD Arm to the flat surfaces
of the LCD mounts.
Install the LCD Arm Assembly to the LCD
with the two M5x20 screws and spring
“lock” washers removed. Torque: 9.8 Nm
(7.2 lbf-ft {86.7 lbf-in}).
2.
The LCD Cable to LCD is secured to the
LCD with a retaining screw (1), an EMC
shielded retainer (2) and two phillips
screws (3).
Remove the screws and retainer, if present
or re-install the Cable into LCD and tighten
the screw (1).
Install the retainer and secure with the two
M4X12 screws (3).

GE LOGIQ E9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Transducer Ports	4 active ports
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Vascular, Musculoskeletal, Small Parts, Urology, Pediatric, Cardiac, Obstetrics/Gynecology
Transducers	Linear, Convex, Phased Array, Volume
Doppler Modes	Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Elastography	Yes
Advanced Features	B-Flow, Volume Navigation
Portability	Cart-based system
Display	19-inch high-resolution LCD monitor
