IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL

8 - 94 Section 8-6 - Replacing Top Console Parts

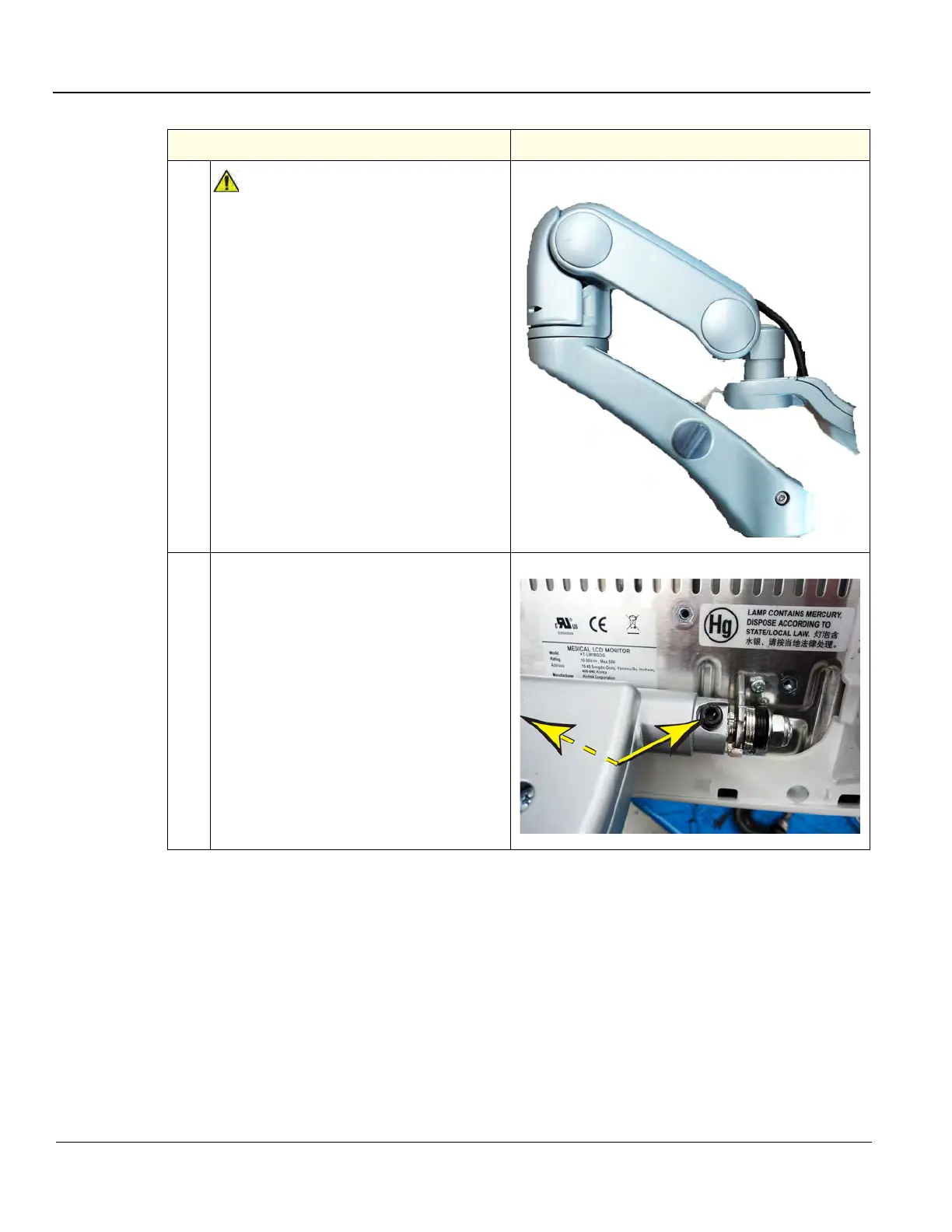

WARNING

WHEN REMOVING THE LCD FROM THE

ARM, KEEP THE LCD ARM ASSEMBLY

IN THE LOCKED POSITION. THE

SPRINGS TO SUPPORT THE LCD CAN

CAUSE THE ARM TO SPRING OPEN

CAUSING SEVERE PERSONAL INJURY

AND PROPERTY DAMAGE.

Keep the LCD supported and remove the

two M5x20 screws and spring “lock”

washers which mount the LCD to the Arm

Assembly.

Table 8-58 LCD Monitor V2 removal - R4.x

Steps Corresponding Graphic
