8-6-2-5 LCD Monitor V2 removal - R5.x and later
A cover at the rear side of the LCD Monitor assembly covers the cable to the monitor. To get access to
the cable connector, remove the Cable Cover.

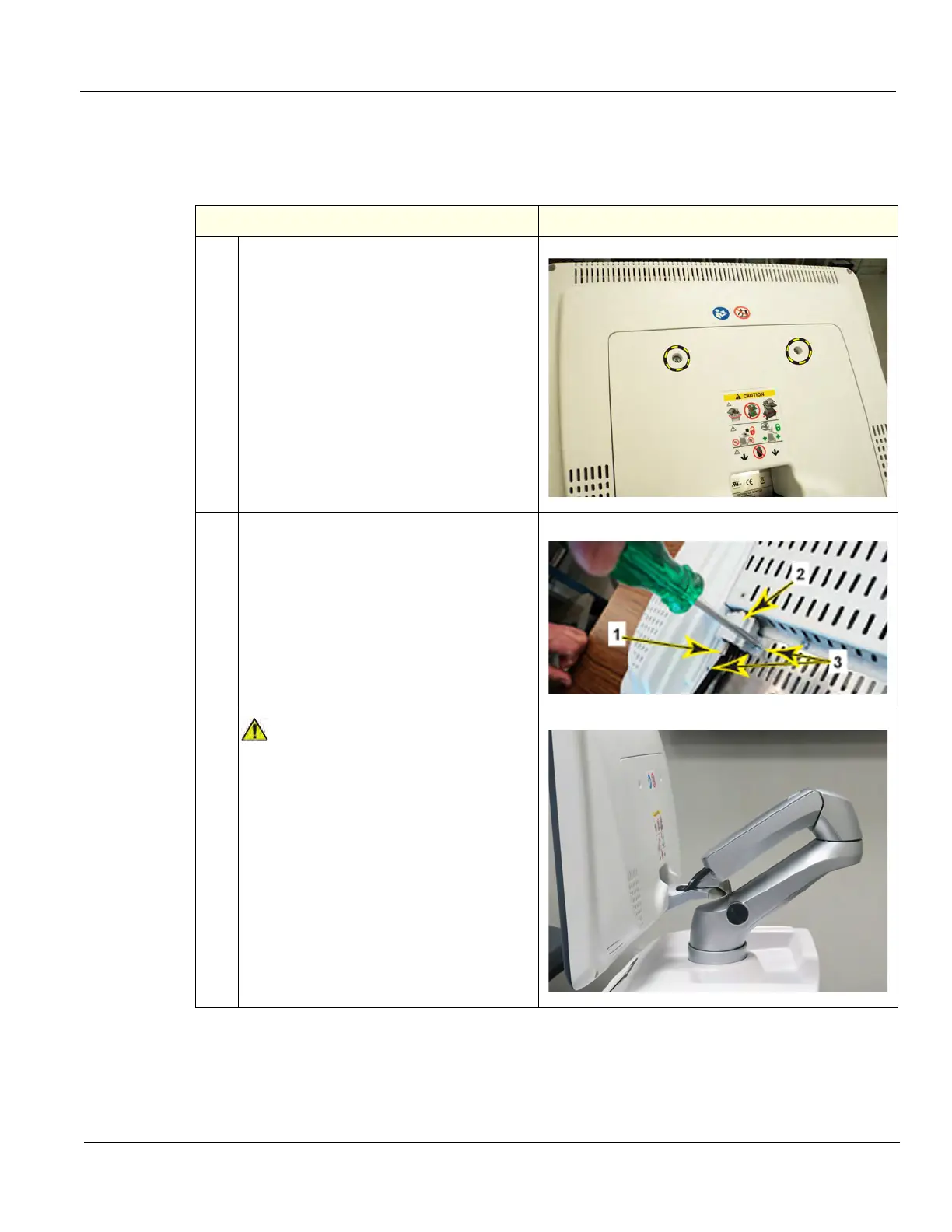

Table 8-60 LCD Monitor V2 removal - R5.x and later
Steps Corresponding Graphic
1.
Remove the LCD Cable Cover fixing
screws.
2.
The LCD Cable to LCD is secured to the
LCD with a retaining screw (1), an EMC
shielded retainer (2) and two phillips
screws (3).
Remove the screws and retainer.
Disconnect the Cable from the LCD.
3.
WHEN REMOVING THE LCD FROM THE
ARM, KEEP THE LCD ARM ASSEMBLY
IN THE LOCKED POSITION. THE
SPRINGS TO SUPPORT THE LCD CAN
CAUSE THE ARM TO SPRING OPEN
CAUSING SEVERE PERSONAL INJURY
AND PROPERTY DAMAGE.
To Next Page
