GE LOGIQ E9 Service Manual

GE
D
IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
Chapter 8 Replacement procedures 8 - 103
8-6-3-1 LCD Arm replacement - R3.x and earlier

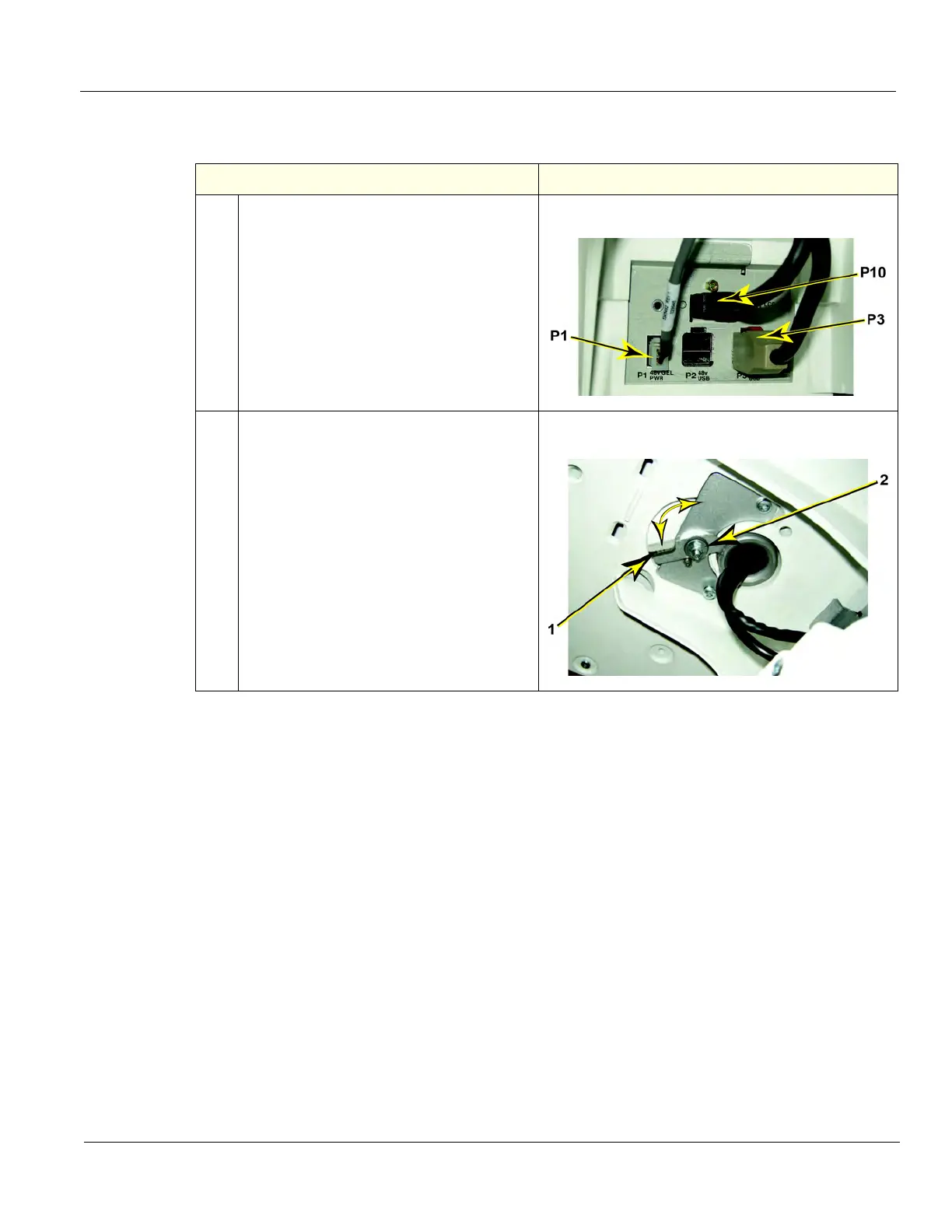

Table 8-65 LCD Arm assembly removal
Steps Corresponding Graphic
1.
Disconnect the LCD cables; video (P10)
and power (P3) from the connectors on the
Bulkhead. The Gel Warmer cable (P1)
does not have to be removed.
LCD Cables at Bulkhead
2.
Push the LCD Mount Lock handle (1) into
the unlocked position (shown LOCKED).
DO NOT loosen nut (2).
Move the LCD Arm from side to side when
at the same time pulling upwards, until you
can lift LCD Arm assembly away.
LCD Mount Lock Handle

GE LOGIQ E9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Transducer Ports	4 active ports
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Vascular, Musculoskeletal, Small Parts, Urology, Pediatric, Cardiac, Obstetrics/Gynecology
Transducers	Linear, Convex, Phased Array, Volume
Doppler Modes	Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Elastography	Yes
Advanced Features	B-Flow, Volume Navigation
Portability	Cart-based system
Display	19-inch high-resolution LCD monitor
