GE
D
IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
Chapter 8 Replacement procedures 8 - 111

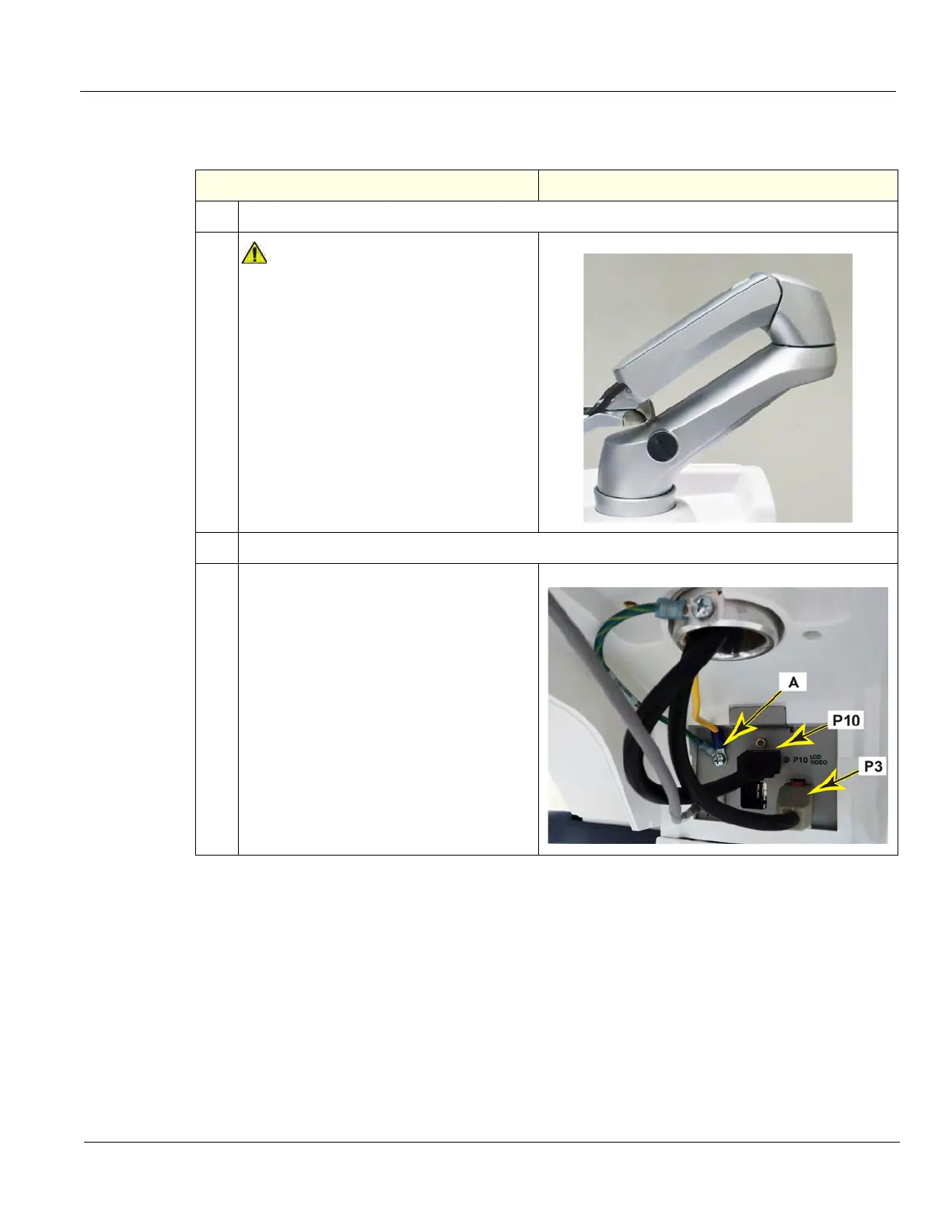

8-6-3-3 LCD Monitor V2 Arm assembly replacement - R5.x and later
Table 8-69 LCD Monitor V2 Arm assembly removal - R5 and later
Steps Corresponding Graphic
1.
Remove the LCD Monitor.
2.
WHEN REMOVING THE LCD ARM, KEEP
THE ARM LOCKED, AS SHOWN TO
ENSURE THE LCD ARM ASSEMBLY IS
IN THE LOCKED POSITION UNTILL THE
ARM AND LCD ARE INSTALLED. THE
SPRINGS TO SUPPORT THE LCD CAN
CAUSE THE ARM TO SPRING OPEN
CAUSING SEVERE PERSONAL INJURY
AND PROPERTY DAMAGE.
3.
Remove the Bulkhead Cover.
4.
Disconnect the LCD and Arm cables; Video
(P10) and power (P3) from the LCD and the
and ground Cable from the Arm.
The Video Cable has a retainer and screw.
Loosen the screw with a small, flat blade
screwdriver. The ground Cable uses a
Phillips screw.
To Next Page
