GE
D
IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
8 - 110 Section 8-6 - Replacing Top Console Parts
6.

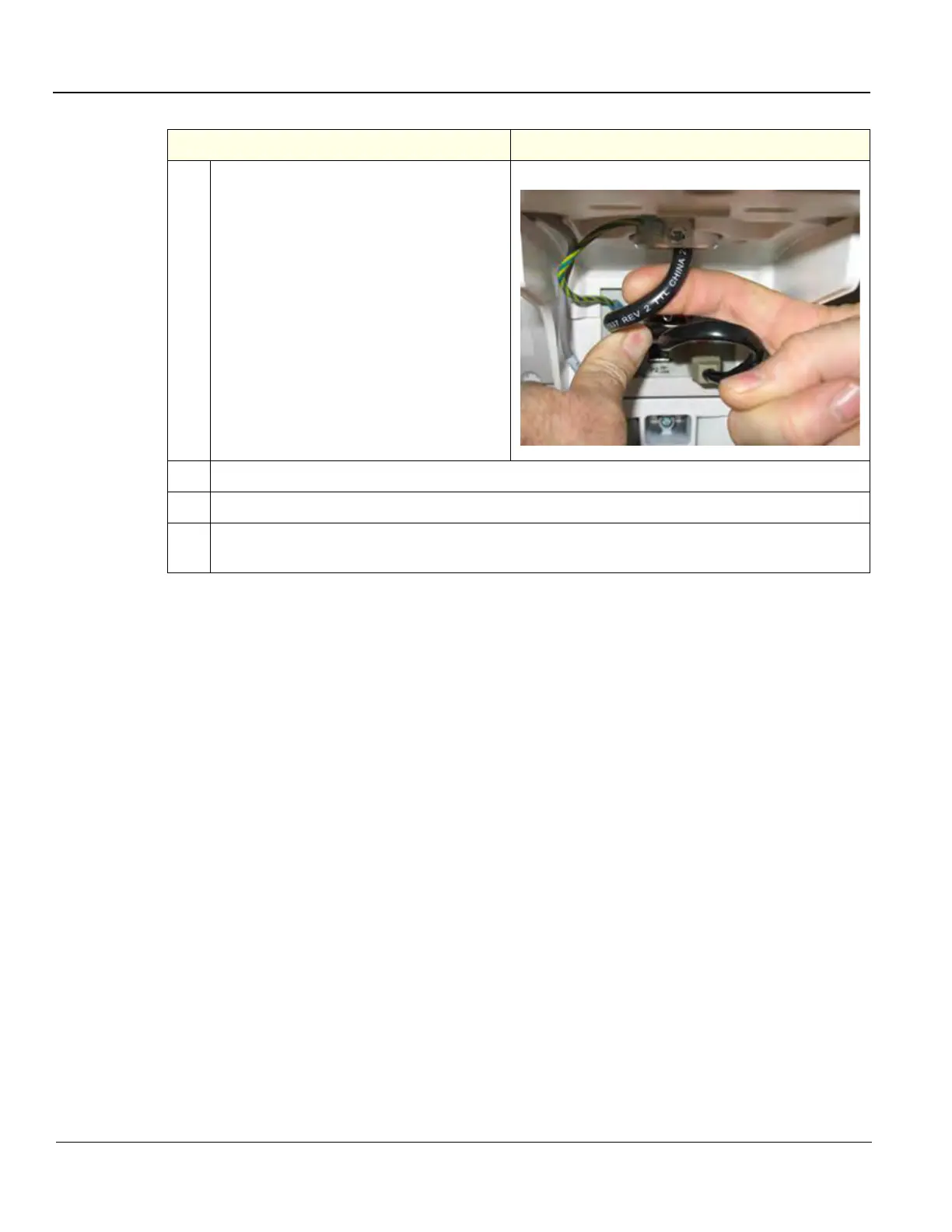

After plugging in the LCD Cable, bend the
cable as shown, pull with your index finger
and push with your thumb. The “S” bend
allows the cable to flex in the up direction
when the Bulk Head Cover is installed.
Install the Bulkhead Cover.
7.
Remove the shipping wrap, if present. DO NOT damage the surface of the Arm Assembly.
8.
Install the Bulkhead Cover.
9.
Perform Functional Checks. See: 8-6-3-4 - Calibration and adjustments, 8-6-3-5 - Verification
and 8-6-3-6 "Functional Checks" on page 8-117.
Table 8-68 LCD Monitor V2 Arm assembly installation - R4
Steps Corresponding Graphic
