GE
D
IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
Chapter 8 Replacement procedures 8 - 147
4. Holding the front edge, gently flex
the Lower OP Panel up until the
Trackball Assembly just clears the
Lower OP Panel Frame Assembly
handle.
Pull the Lower OP Panel out and
away from the Lower OP Panel
Frame Assembly.
Store it on an ESD safe place.

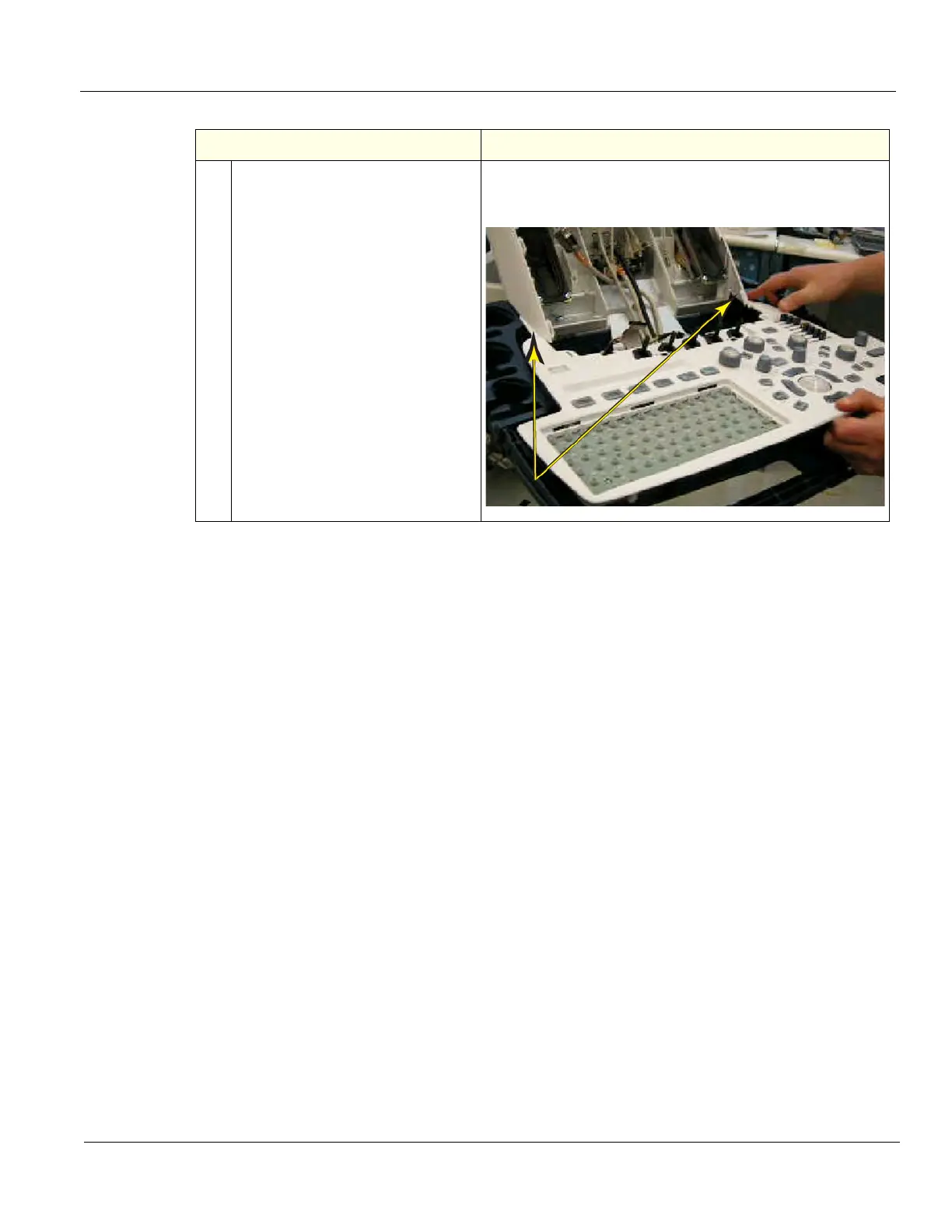

Flex points on Lower OP Panel
(when the front edge is lifted)
Table 8-97 Lower Operator Panel (OP) removal
Steps Corresponding Graphic
