IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
8 - 160 Section 8-6 - Replacing Top Console Parts

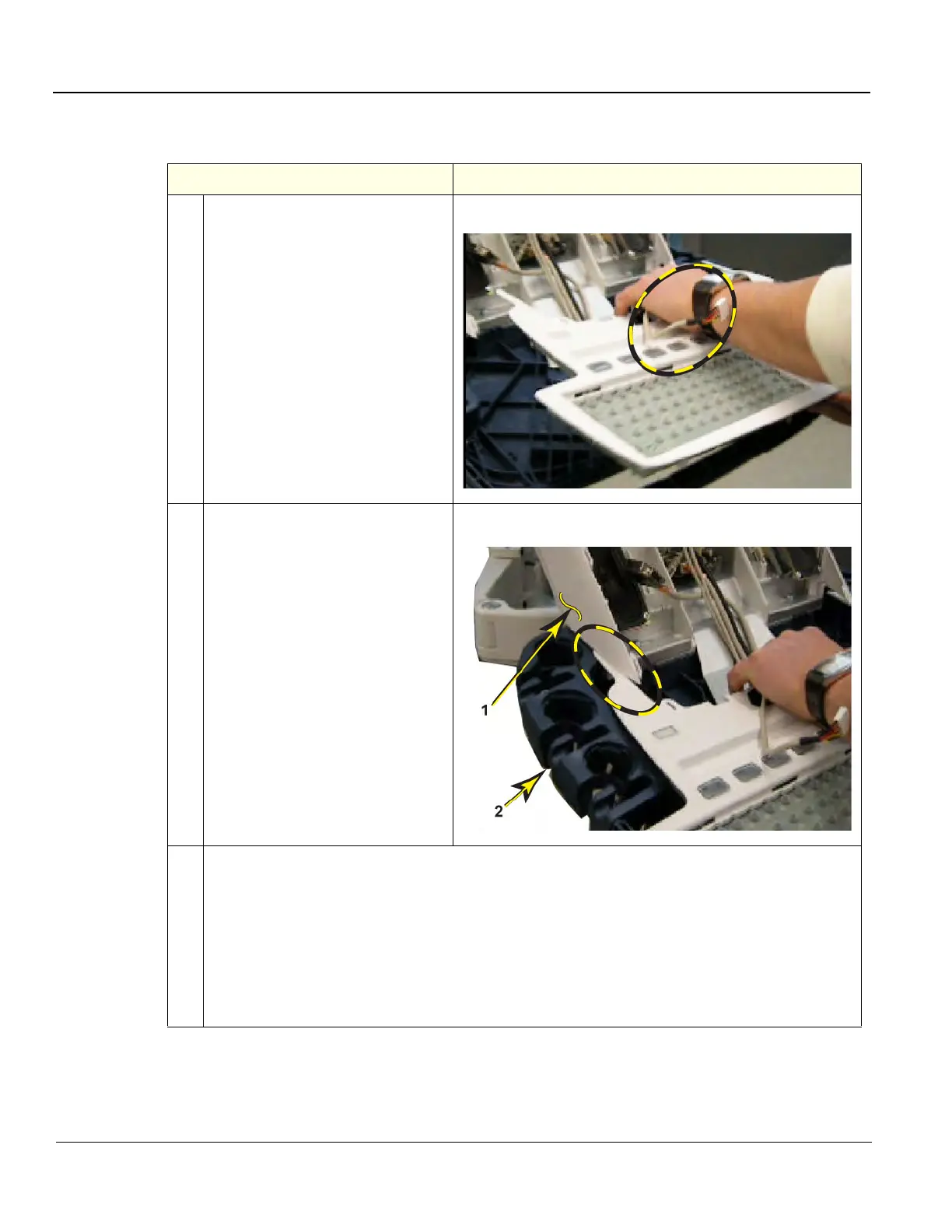

8-6-10-3 Lower Operator Panel installation
Table 8-104 Lower Operator Panel installation
Steps Corresponding Graphic
1. While holding the Lower OP Panel,
be sure to maintain control of the
three OP Panel cables so that they
come up and over the top of the
Lower OP Panel.
Cables over top of Lower OP Panel
2. NOTE: Edge tips described are
fragile. DO NOT lift or bend the
Lower OP Panel Assembly sharply,
or the edge tips may break.
Slide the left and right Lower OP
Panel edge tips carefully between
the Upper OP Panel
Frame (1 - white) and the Lower OP
Panel Frame (2 - blue).
Begin to slide the Lower OP Panel
into its compartment while making
sure the Trackball Assembly just
clears the Lower OP Panel Frame
Assembly handle.
Left edge tip of Lower OP Panel Assembly
3. Place the Lower OP Panel into its compartment.
Install the Upper OP Panel/Touch Panel assembly.
Install the eight screws that affix the Lower OP Panel assembly to the Lower OP Panel Frame
Assembly.
Be sure the three shorter screws are installed at the front (see: Table 8-97 "Lower Operator
Panel (OP) removal" on page 8-146).

GE LOGIQ E9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Transducer Ports	4 active ports
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Vascular, Musculoskeletal, Small Parts, Urology, Pediatric, Cardiac, Obstetrics/Gynecology
Transducers	Linear, Convex, Phased Array, Volume
Doppler Modes	Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Elastography	Yes
Advanced Features	B-Flow, Volume Navigation
Portability	Cart-based system
Display	19-inch high-resolution LCD monitor
