GE
D
IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
8 - 170 Section 8-6 - Replacing Top Console Parts
8-6-13 Storage Tray / Transvaginal Probe Holder replacement
The Storage Tray and Transvaginal Probe Holder rests inside the Options Holder base part and are
interchangeable. They can also replace the Gel Warmer. See: 8-6-12 "Gel Warmer replacement" on
page 8-166 and 8-6-14 "Replacing the Gel Warmer with a Storage Tray or TV/TR Probe Holder" on page
8-172.
Follow this procedure for replacement, or replacing a tray with a Probe Holder or a Probe Holder with a
tray.
8-6-13-1 Storage Tray / Transvaginal Probe Holder removal
1.) Locate the two prongs below the tray or Probe Holder.
2.) Squeeze the two prongs together, then lift the tray or Probe Holder off the system.

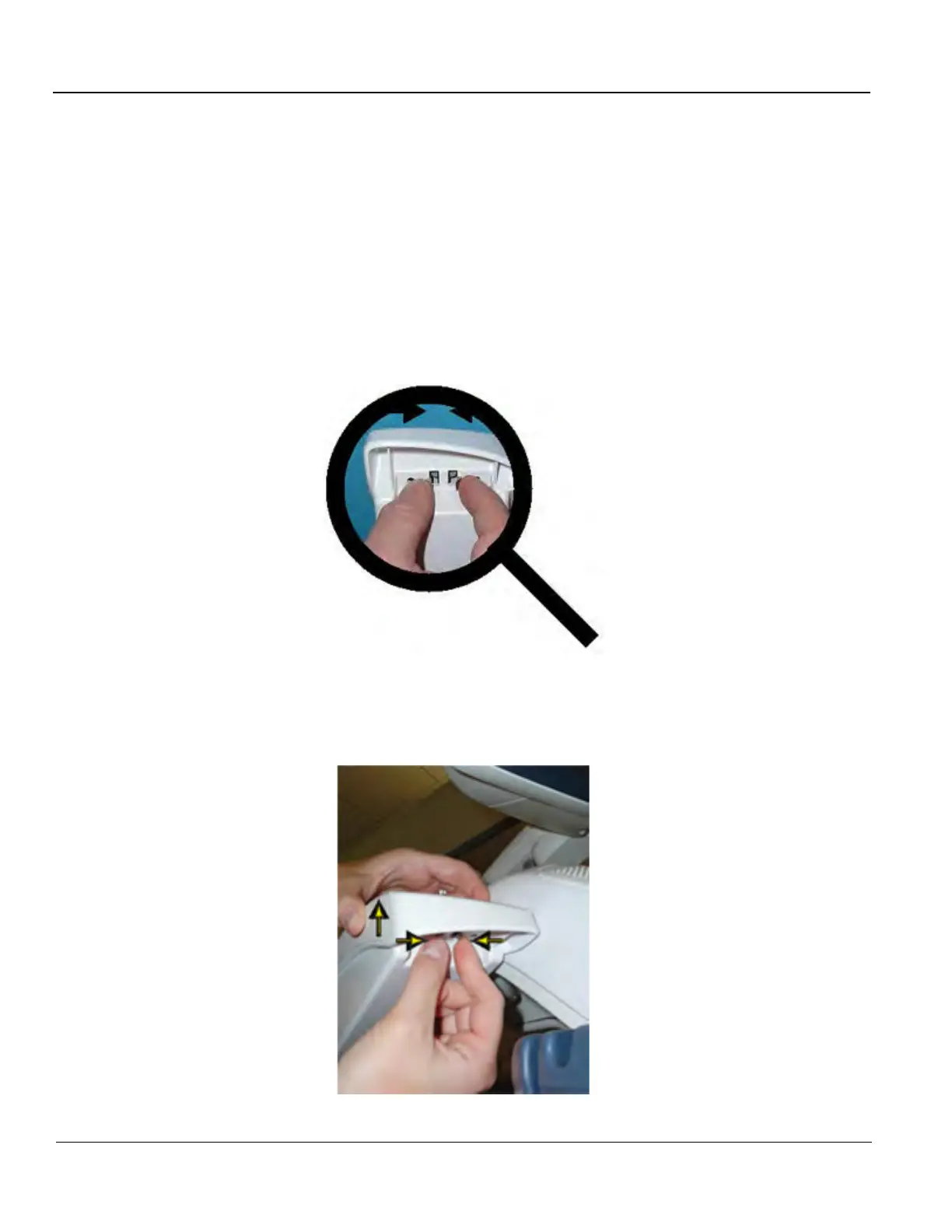

Figure 8-51 Locate the two prongs
Figure 8-52 Squeeze the two prongs
