8 - 172 Section 8-6 - Replacing Top Console Parts
8-6-14 Replacing the Gel Warmer with a Storage Tray or TV/TR Probe Holder
Follow these instructions when removing the gel warmer and replacing it with a Storage Tray or a TV/
TR Tray.
8-6-14-1 Gel Warmer removal
Before starting this procedure, see: 8-6-12 "Gel Warmer replacement" on page 8-166.
1.) Remove the Gel Warmer.
2.) Seat the tray tab into the options holder base and snap into place. See: Figure 8-53 "Seat and snap
into place" on page 8-171.

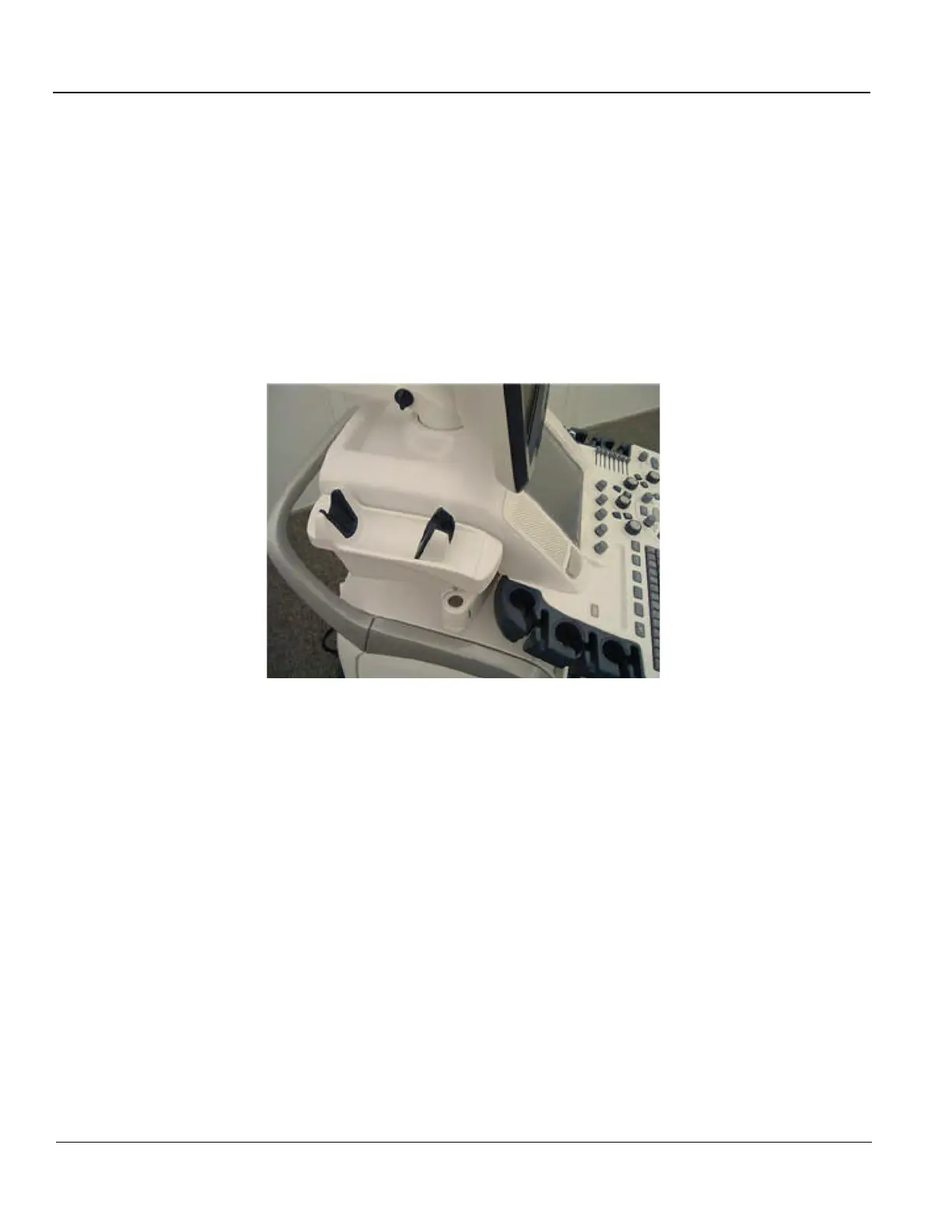

Figure 8-54 TV/TR Probe Holder installed
