8 - 184 Section 8-7 - Main Console parts replacement
8-7-3-2 Removal Process with Non-loop Type Strap (cont’d)
3.) Using the first and second fingers of your left hand, lever down on the filter removal strap.
NOTE: This action will prevent your fingers from being struck by the filter when you remove it and it
pops loose.
4.) Remove the filter from the frame.
NOTE: The filter frame will clear your fingers as you remove the filter.

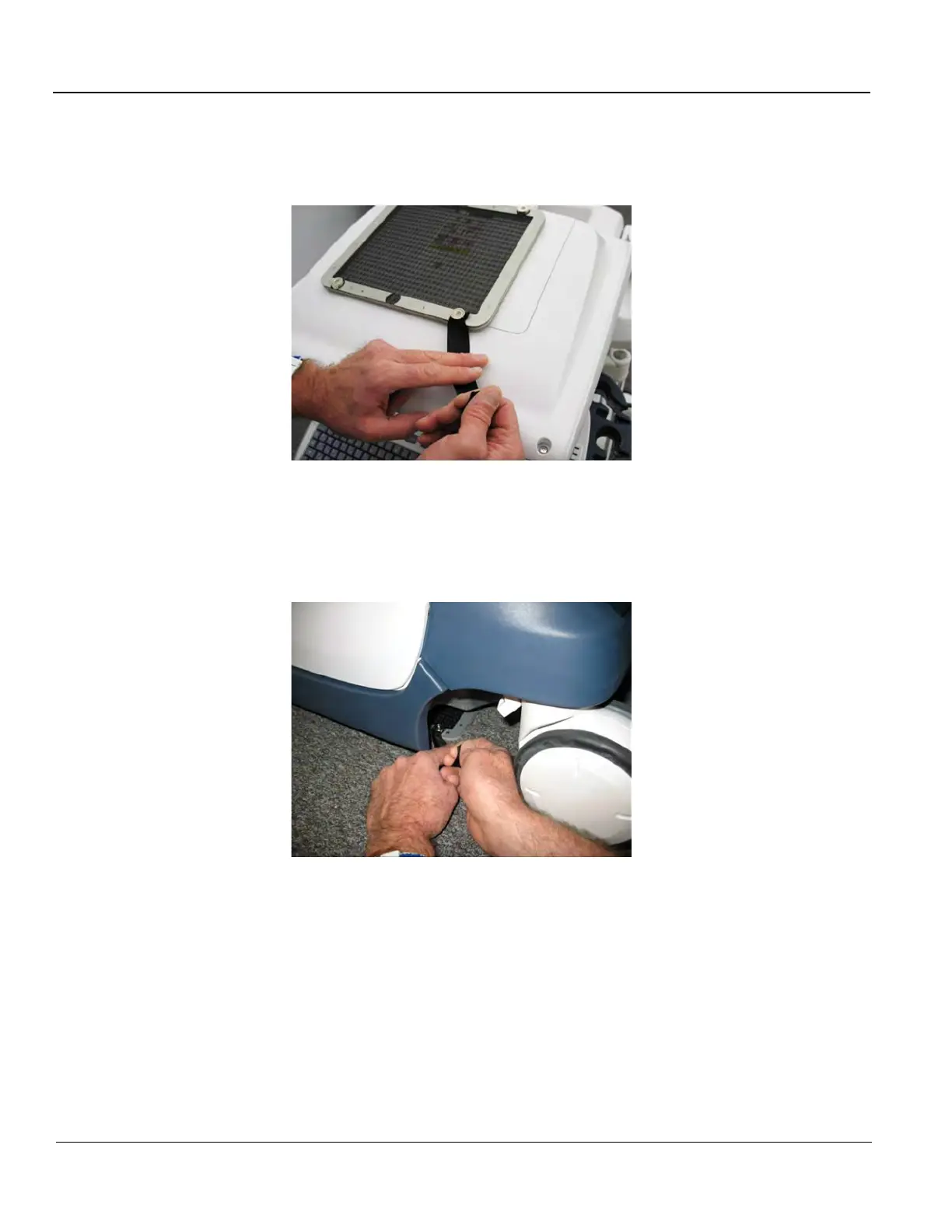

Figure 8-62 Placement of Fingers Around Strap
Figure 8-63 Removing Filter Frame
