Chapter 8 Replacement procedures 8 - 183
8-7-3-2 Removal Process with Non-loop Type Strap
1.) Locate the strap on the right hand side of the LOGIQ E9, which can be viewed through the right rear
wheel well.
2.) Grasp the filter removal strap with the thumb and index finger of your right hand.

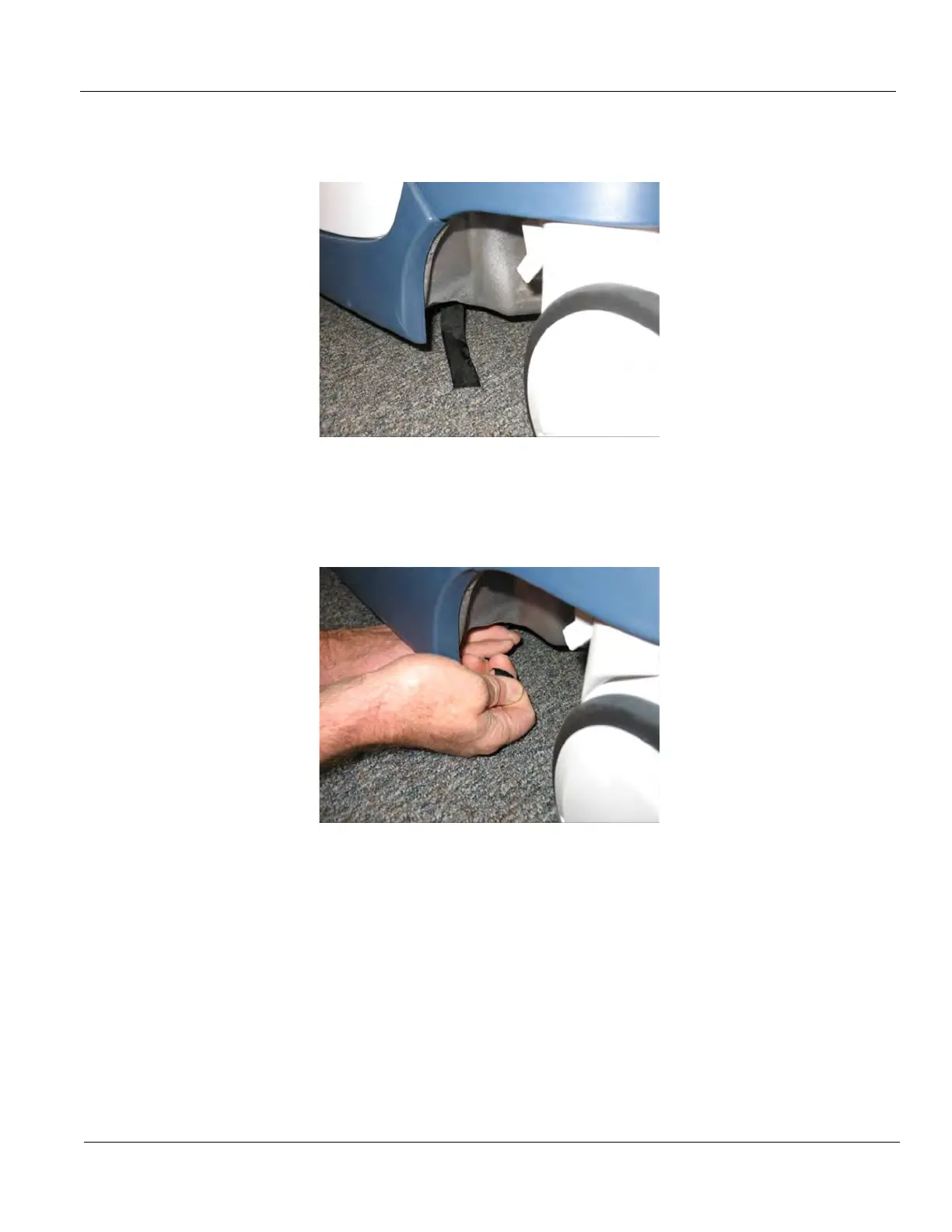

Figure 8-60 Non-loop Type Strap
Figure 8-61 Fingers Holding Strap
