IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL

Chapter 8 Replacement procedures 8 - 227

8-9-6-1 HDD removal

If the HDD has patient data, leave the HDD at the site.

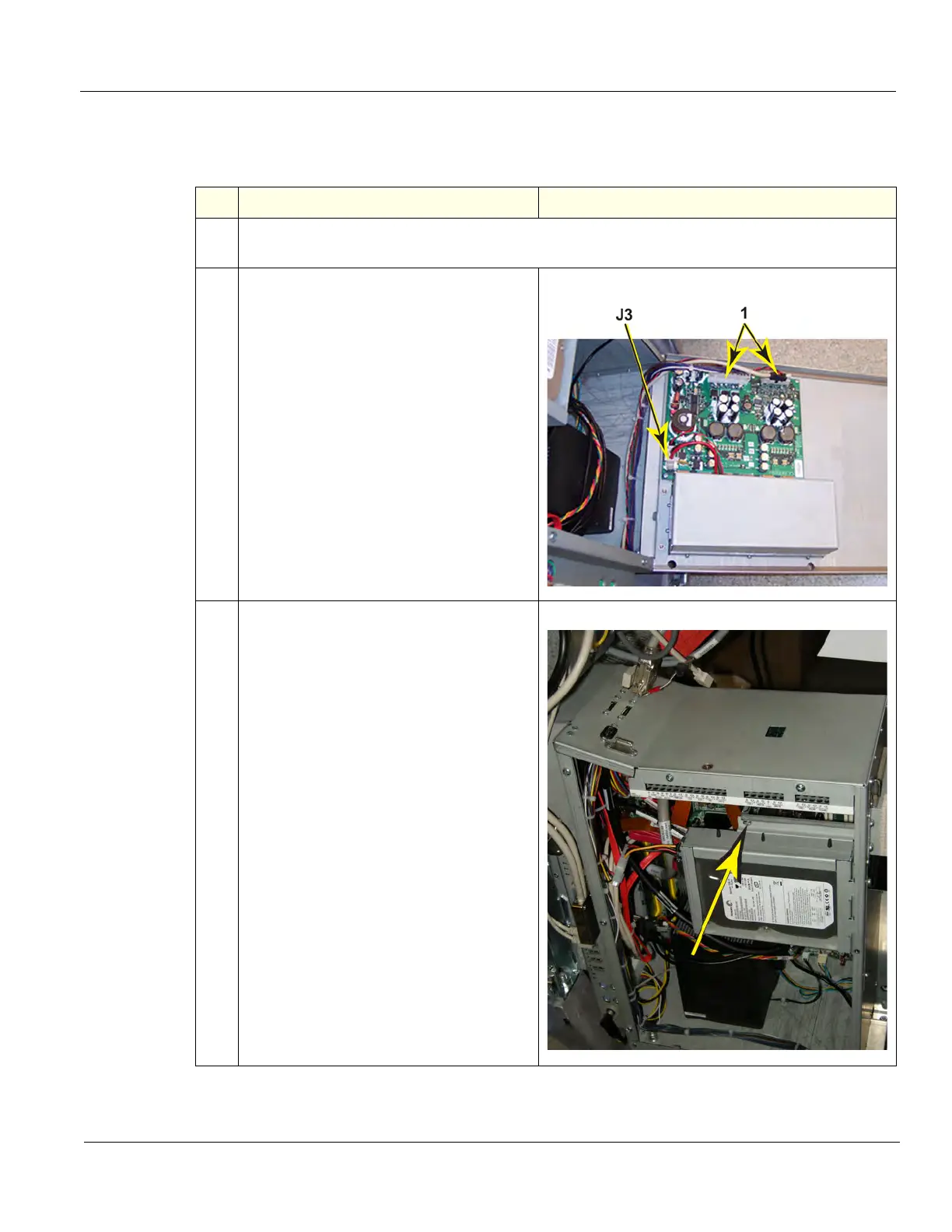

Table 8-140 HDD removal

Steps Corresponding Graphic

Loosen the thumb screw or screws at the top of the BEP cover that attach the cover to the BEP.

Tilt the top of the BEP cover away from the BEP.

Disconnect:

• the battery cable from J3 on the EPS

(Extended Power Shutdown) Board.

• the

cables (

) connecting the EPS to the

BEP.

Set the BEP cover aside.

inside of BEP Cover, EPS and cables

Remove the screw that secures the HDD

bracket.
