8-9-7-1 HDD removal
If the HDD has patient data, leave the HDD at the site.
Table 8-144 HDD removal
Steps Corresponding Graphic

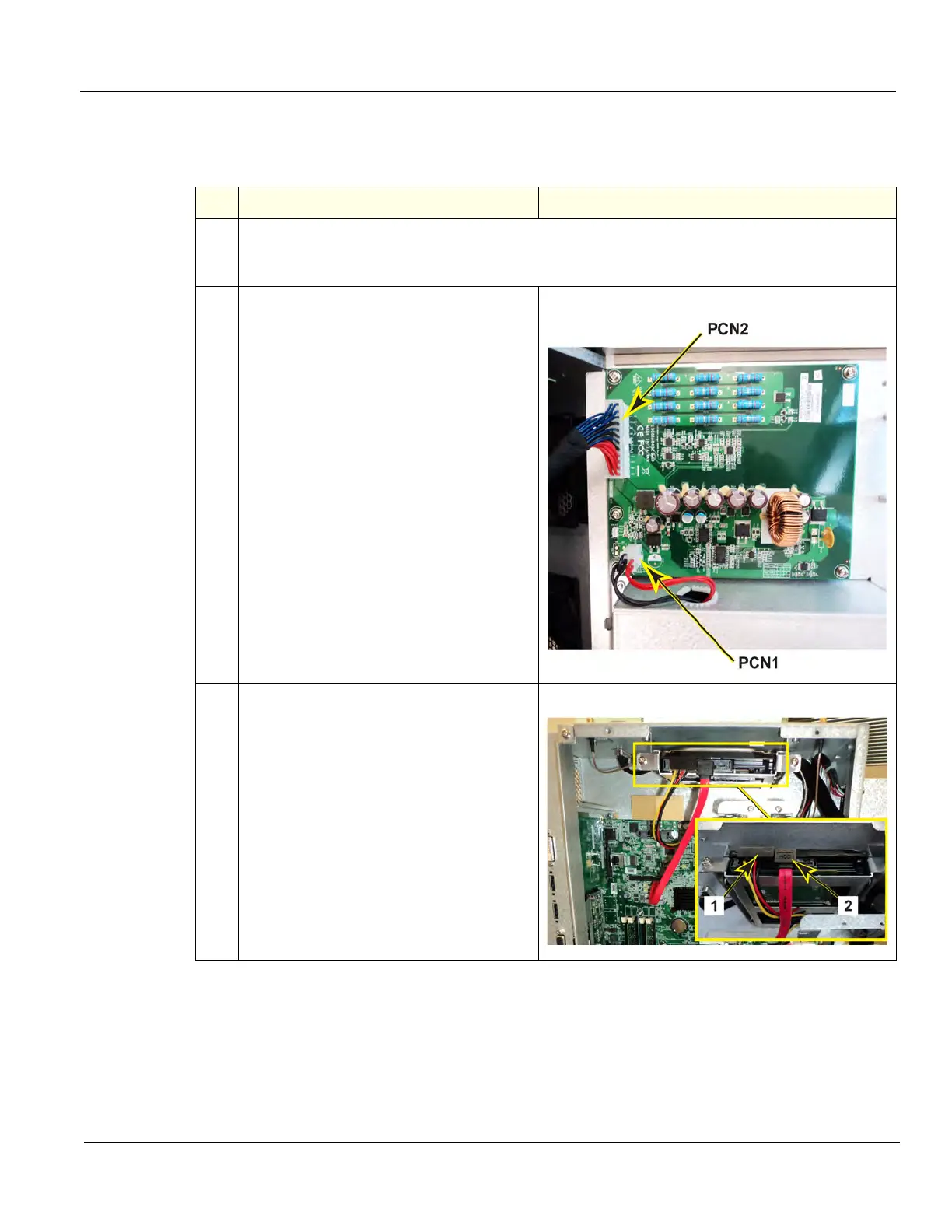

1.
Loosen the thumb screws or screws at the top of the BEP cover, or the three screws that attach
the cover to the BEP.
Tilt the top of the BEP cover away from the BEP.
2.
Disconnect the battery from PCN1 on the
the CB (ChargeBoard).
BEP6 CB cables
3.
Disconnect HDD Power cable (1) and
SATA cable (2).
HDD cable connections
