Chapter 2 Site preparations 2 - 9
2-3-3 Desirable features
In addition to the Floor Plan Suggestions shown in Figure 2-1 and Figure 2-2, a nearby waiting room and a
Receptacle for Bio–hazardous Waste, like used probe sheaths is suggested. Grid represents 305 x 305 mm (1 x 1
foot).
2-3-4 Minimal floor plan suggestions

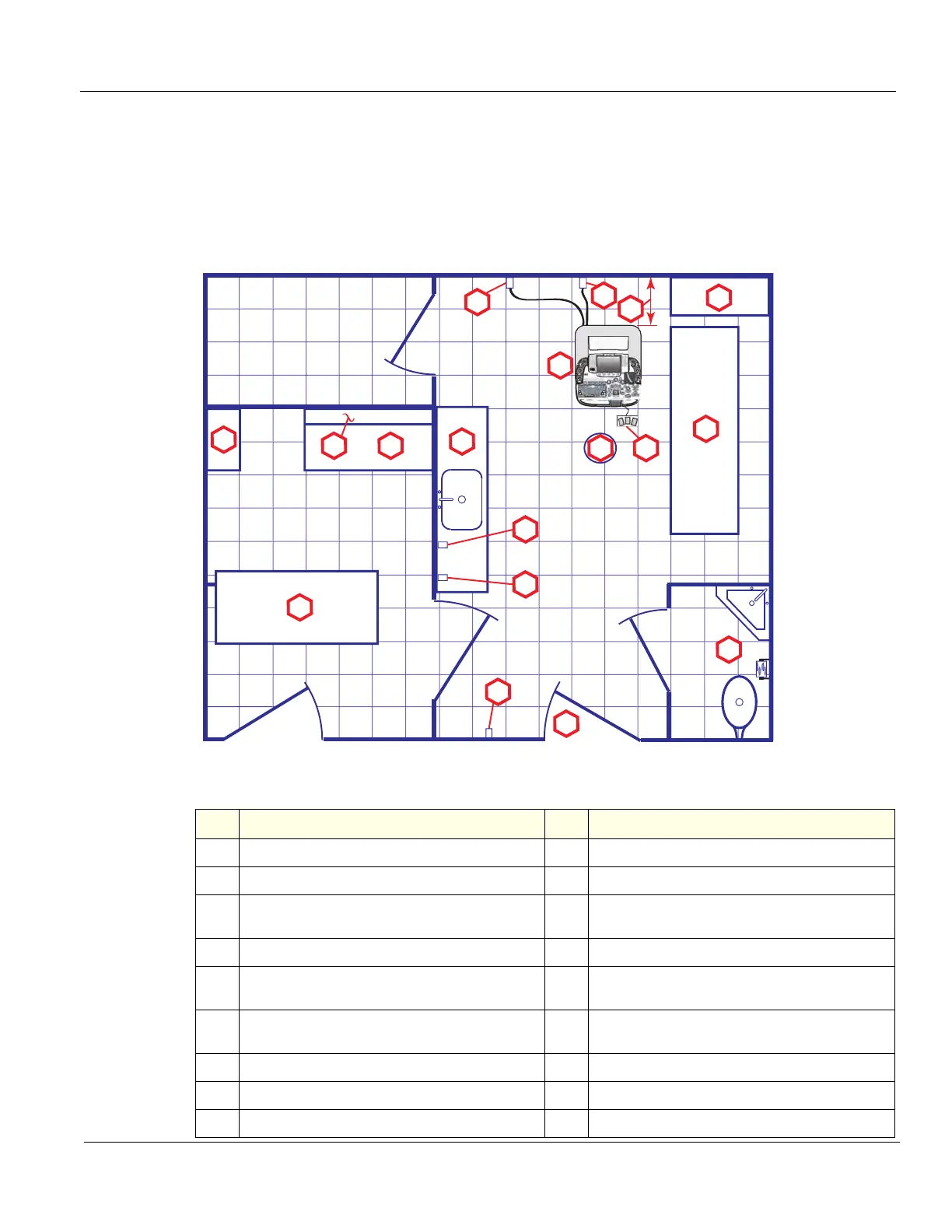

Floor Plan Suggestion 4.27 x 5.18 m (14 x 17 foot) Key
Figure 2-1 Floor Plan Suggestion 4.27 x 5.18 m (14 x 17 foot)
Item Description Item Description
1.
Secretaries or Doctors Desk
2.
File Cabinet
3.
Film Viewer
4.
Counter Top
5.
Counter Top and Sink with hot and cold water
6.
Overhead Lights Dimmer - Dual Level Lighting (bright
and dim)
7.
Emergency Oxygen
8.
Suction Line
9.
LOGIQ E9
10.
Dedicated Power Outlet - Circuit Breaker protected and
easily accessible
11.
Network Interface
12.
457 mm (18 inches) distance of LOGIQ E9 from wall or
objects
13.
Stool
14.
Footswitch
15.
Storage for Linens and Equipment
16.
Examination Table – 1930 x 610 mm (76 x 24 inches)
17.
Lavatory and Dressing Room
18.
Door – at least 762 mm (30 inches)
4
1
2
18
5
6
9
16
17
15
8
7
10
11
12
14
3
1
2
1
2
AutoAuto
BB
RR
LL
CommentComment
ClearClear
Body Pattern
Ellipse
Body Pattern
Ellipse
ZoomZoom
MM
XX
CFCF
ZZ
YY
PWPW
CW
Elasto
3D/4D
13

GE LOGIQ E9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Transducer Ports	4 active ports
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Vascular, Musculoskeletal, Small Parts, Urology, Pediatric, Cardiac, Obstetrics/Gynecology
Transducers	Linear, Convex, Phased Array, Volume
Doppler Modes	Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Elastography	Yes
Advanced Features	B-Flow, Volume Navigation
Portability	Cart-based system
Display	19-inch high-resolution LCD monitor
