IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
2 - 10 Section 2-3 - Facility needs
2-3-4 Minimal floor plan suggestions (cont’d)
Floor Plan Suggestion 2.44 x 3.05 m (8 x 10 foot) Key

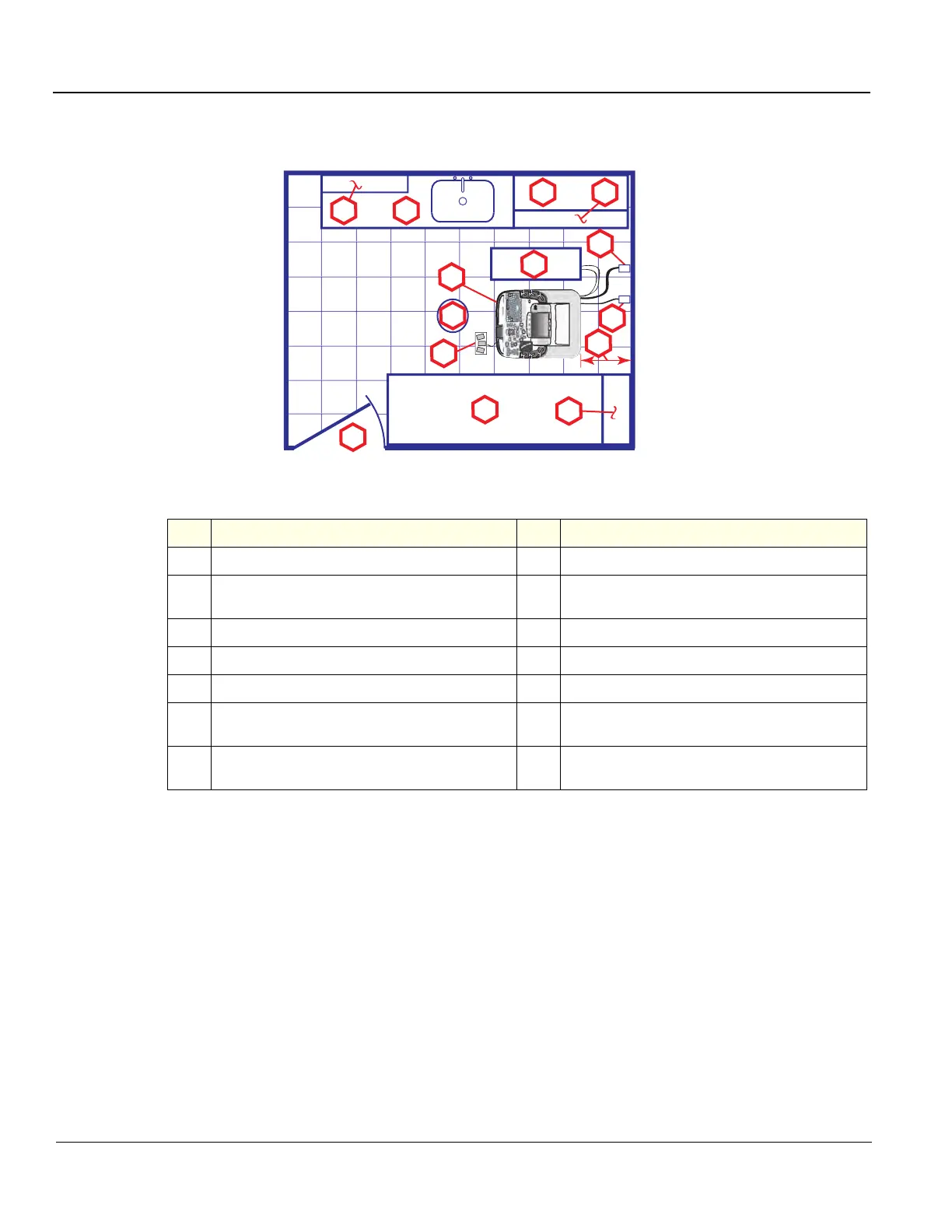

Figure 2-2 Floor Plan Suggestion 2.44 x 3.05 m (8 x 10 foot)
Item Description Item Description
1.
Door – at least 762 mm (30 inches)
2.
Film Viewer
3.
Counter Top, Sink with hot and cold water and Supplies
Storage
4.
Linen Supply
5.
Probes/Supplies
6.
Examination Table – 1930 x 610 mm (76 x 24 inches)
7.
Footswitch
8.
Stool
9.
LOGIQ E9
10.
External Peripherals
11.
Dedicated Power Outlet - Circuit Breaker protected and
easily accessible
12.
Network Interface
13.
457 mm (18 inches) distance of LOGIQ E9 from wall or
objects
14.
GE Cabinet for Software and Manuals
4
1
3
11
6
13
1
2
1
2
AutoAuto
BB
RR
LL
CommentComment
ClearClear
Body Pattern
Ellipse
Body Pattern
Ellipse
ZoomZoom
MM
XX
CFCF
ZZ
YY
PWPW
CW
Elasto
ee
3D/4D
8
10
5
7
9
12
14
2

GE LOGIQ E9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Transducer Ports	4 active ports
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Vascular, Musculoskeletal, Small Parts, Urology, Pediatric, Cardiac, Obstetrics/Gynecology
Transducers	Linear, Convex, Phased Array, Volume
Doppler Modes	Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Elastography	Yes
Advanced Features	B-Flow, Volume Navigation
Portability	Cart-based system
Display	19-inch high-resolution LCD monitor
