IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL

Chapter 8 Replacement procedures 8 - 303

8-12-2 Assembling or replacing the Roll Stand (cont’d)

5.) Loosen the knob slightly, guide the arm into the channel and move it to the mounting position.

NOTE: Make sure the Transformer Support Platform (larger view) in Figure 8-74 "Loosening Knob" on

page 8-303 is installed in the UP position.

NOTE: The channel fits between the front and rear slide plates.

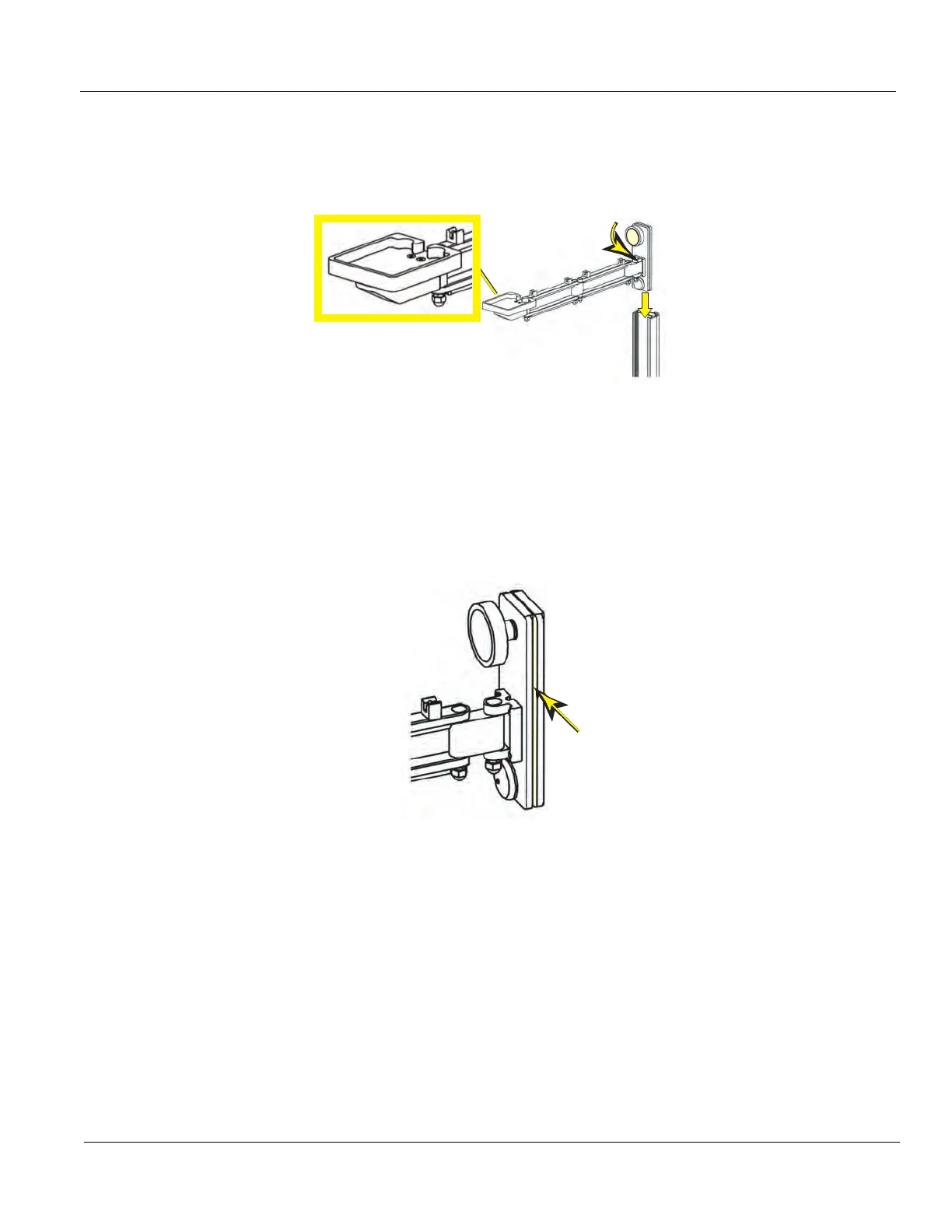

Figure 8-74 Loosening Knob

Figure 8-75 Channel Location
