GE LOGIQ E9 Service Manual

GE
D
IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
8 - 302 Section 8-12 - V Nav Roll Stand and/or On-Board Stand Installation and/or Replacement
8-12-2 Assembling or replacing the Roll Stand (cont’d)

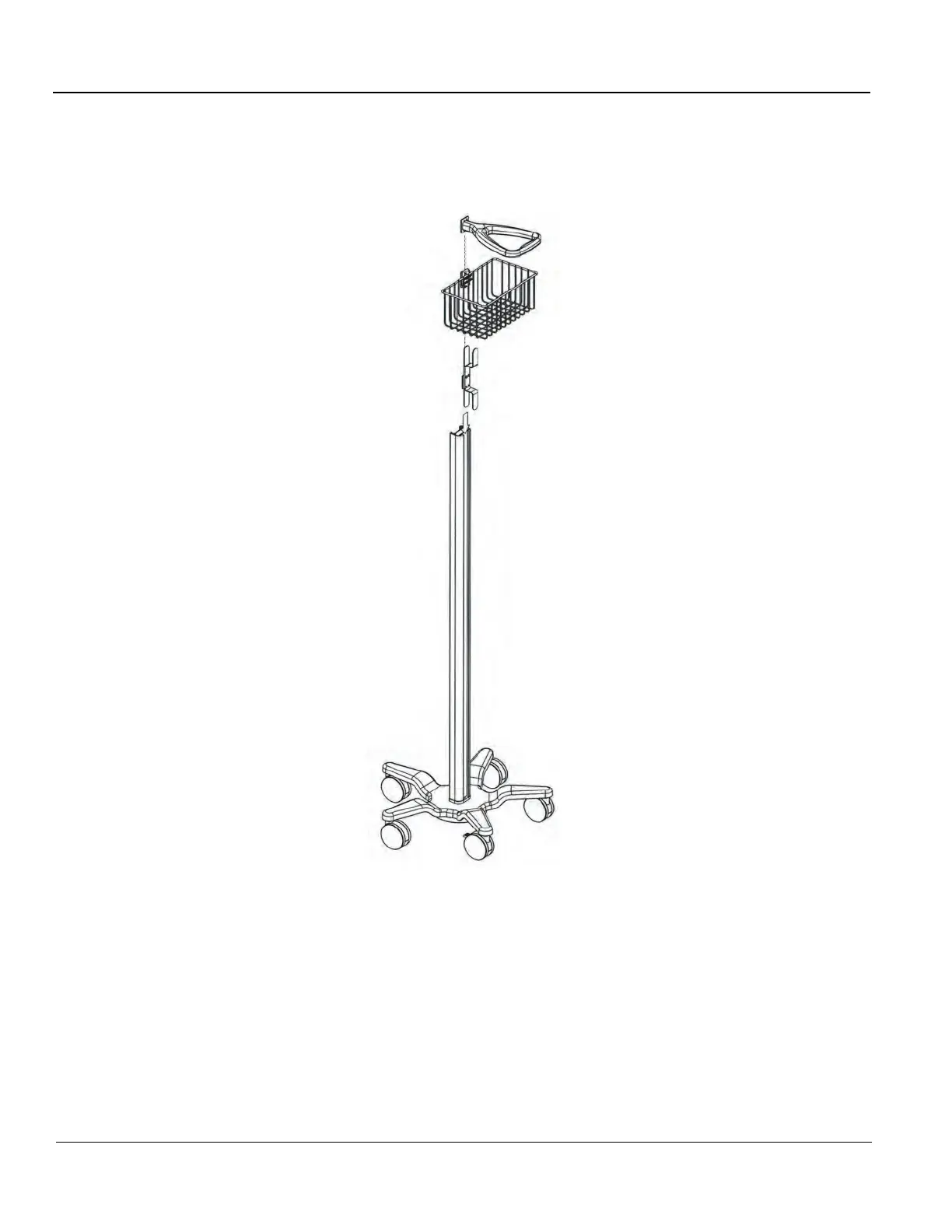

3.) Slide the cord loop hook, basket and handle into the rear channel in the order shown.
4.) Using the hex wrenches provided, tighten all of the set screws in each accessory to secure the po-
sition in the track.
a.) Tighten the top four set screws with the 3/32 inch hex wrench.
b.) Tighten the center four set screws with the 1/8 inch hex wrench.
c.) Tighten the bottom two set screws with 3/32 inch hex wrench.
Figure 8-73 Post Assembly

GE LOGIQ E9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Transducer Ports	4 active ports
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Vascular, Musculoskeletal, Small Parts, Urology, Pediatric, Cardiac, Obstetrics/Gynecology
Transducers	Linear, Convex, Phased Array, Volume
Doppler Modes	Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Elastography	Yes
Advanced Features	B-Flow, Volume Navigation
Portability	Cart-based system
Display	19-inch high-resolution LCD monitor
